Pattern Select Switch: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 50
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 27
  3. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 28
  4. REMOVE SWITCH BASE
    1. Disengage the 4 claws, and remove the switch base from the lower instrument panel finish panel.

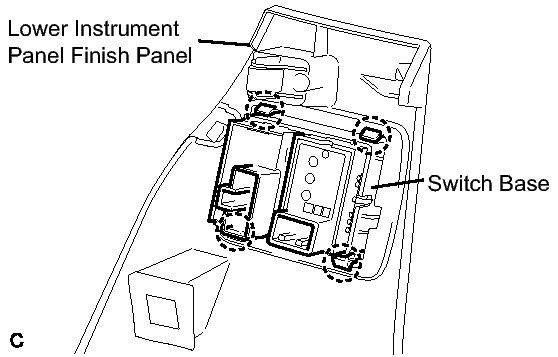

      Fig 1: Identifying Switch Base And Lower Instrument Panel Finish Panel
      GTY128682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
    1. Disengage the 2 claws, and remove the pattern select switch from the switch base.

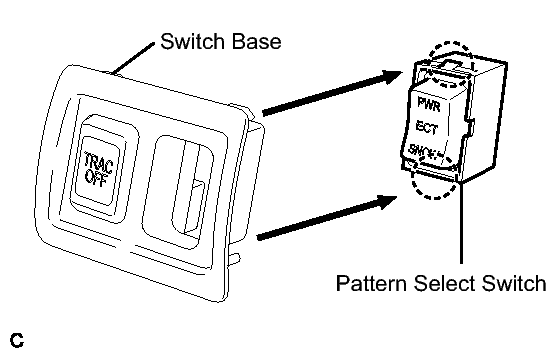

      Fig 2: Identifying Pattern Select Switch And Switch Base
      GTY136125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
