Speed Sensor: Components: Illustration

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY139834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

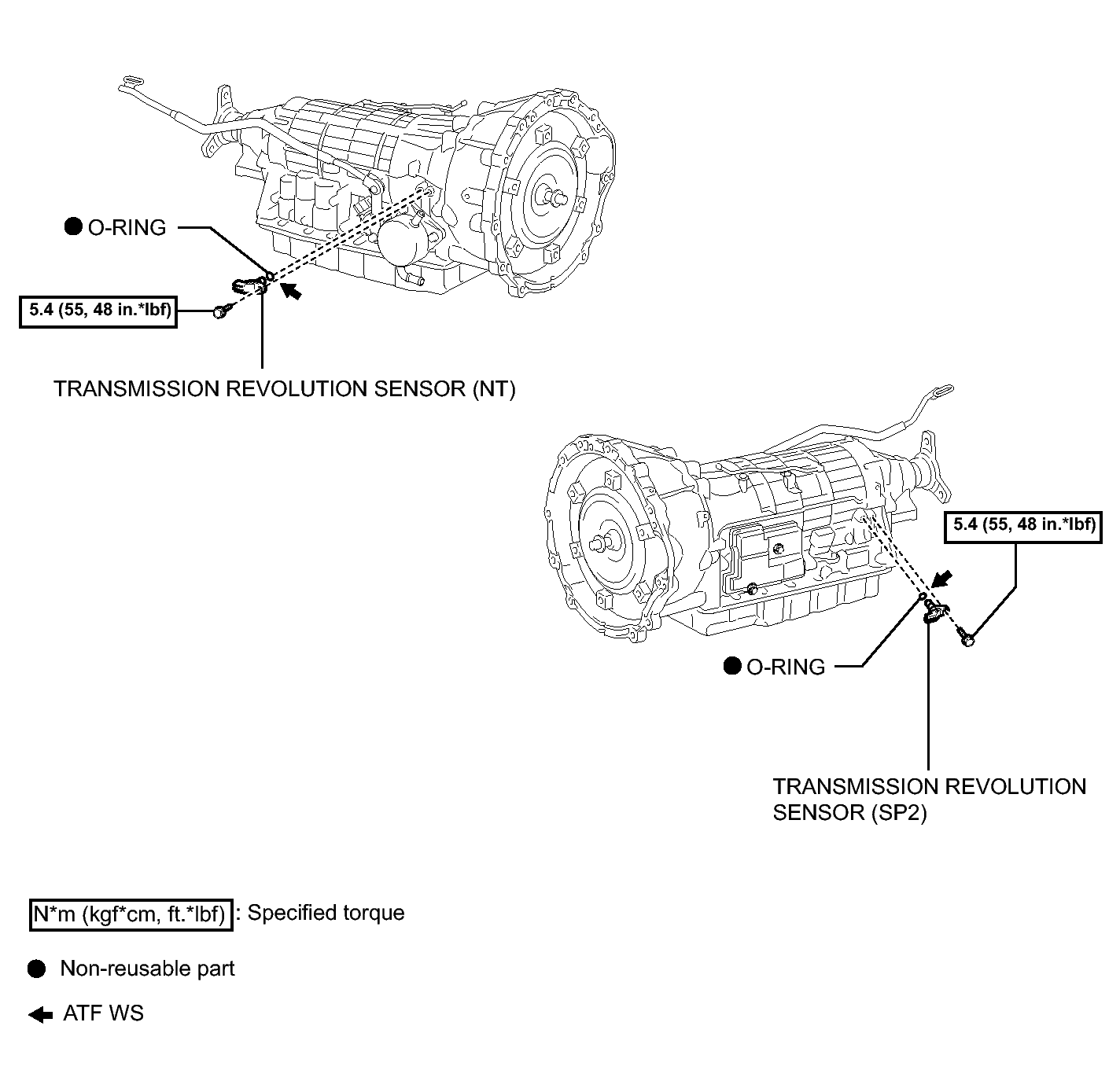

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY113080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
