Charging (Service Information): Generator: Replacement: Replacement

REPLACE GENERATOR DRIVE END FRAME BEARING

Remove the 4 screws and bearing retainer from the drive end frame.

Fig 1: Identifying Bearing Retainer Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

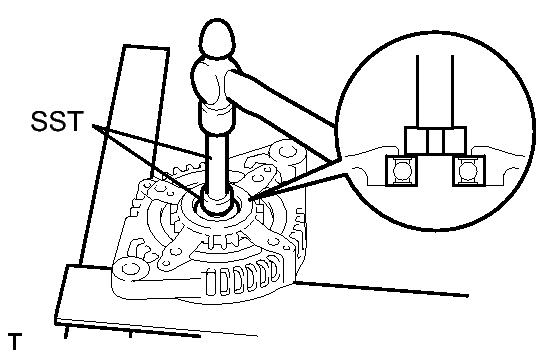

Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.

Fig 2: View Of Tapping Out Drive End Frame Bearing From Drive End Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09950-60010
  - 09951-00250
- SST: 09950-70010
  - 09951-07100

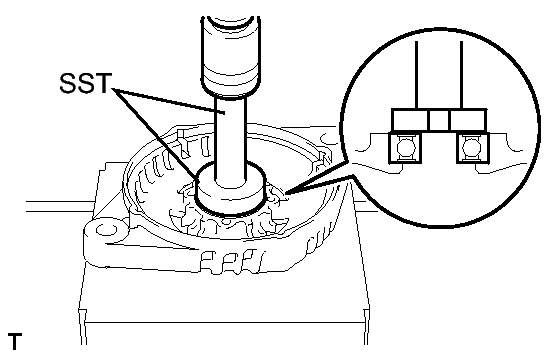

Using SST and a press, press in a new generator drive end frame bearing.

Fig 3: View Of Installing Generator Drive End Frame Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09950-60010
  - 09951-00470
- SST: 09950-70010
  - 09951-07100

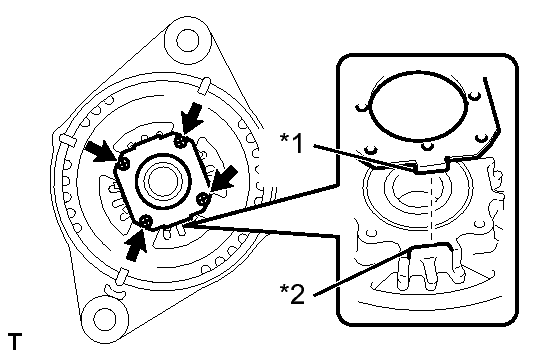

Fit the tabs on the bearing retainer into the cutouts on the drive end frame to install the bearing retainer.

Fig 4: Identifying Retainer Plate Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Tab
*2	Cutout
