Entry Lock And Unlock Switch: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY
    1. Insert the front end of the front door outside handle sub-assembly in to the front door out side handle frame.

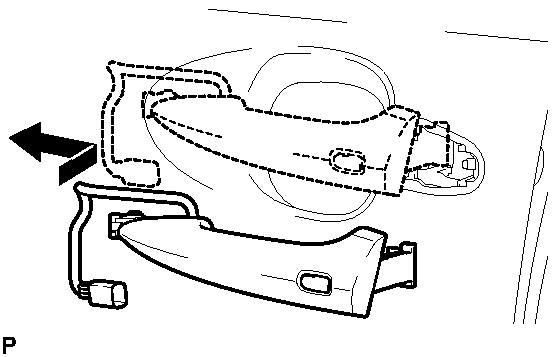

      Fig 1: Inserting Front End Of Front Door Outside Handle Sub-Assembly
      GTY119085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the rear end of the front door outside handle assembly into the front door outside handle frame. Next slide the front door outside handle assembly to the front of the vehicle to install it.
    3. Using a "torx" socket wrench (T30), install the front door outside handle sub-assembly with the screw.

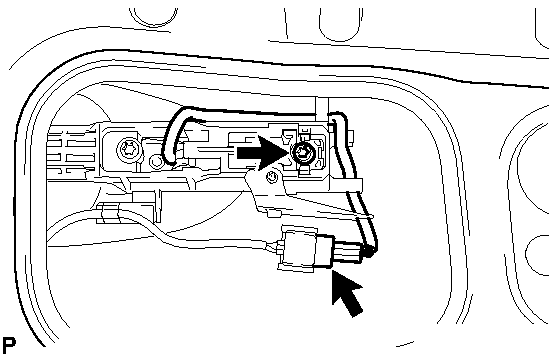

      Fig 2: Door Outside Handle Subassembly, Connector And Screw
      GTY119075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector.
  2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER  . Refer to REASSEMBLY - Step 18
  3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY  . Refer to REASSEMBLY - Step 25
  4. INSTALL FRONT DOOR SERVICE HOLE COVER  . Refer to REASSEMBLY - Step 26
  5. INSTALL FRONT DOOR TRIM COVER  . Refer to REASSEMBLY - Step 31
  6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to REASSEMBLY - Step 36
  7. INSTALL COURTESY LIGHT ASSEMBLY  . Refer to REASSEMBLY - Step 37
  8. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY  . Refer to REASSEMBLY - Step 38
  9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG  . Refer to REASSEMBLY - Step 39
