DCM Data Signal Circuit between Navigation ECU and DCM: Procedure

1. Disconnect the J119 DCM connector.

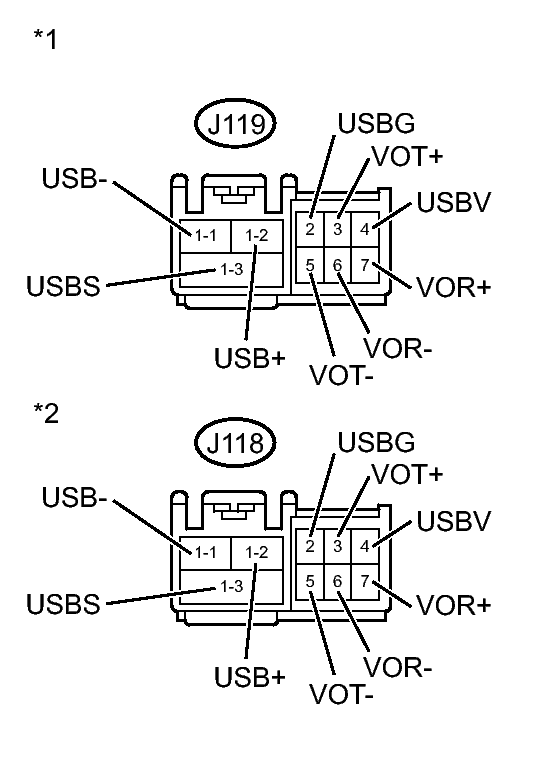

   Fig 1: Identifying J118, J119 Connectors And Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the J118 display and navigation module display connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J119-1-1 (USB-) - J118-1-1 (USB-)	Always	Below 1 Ω
   J119-1-2 (USB+) - J118-1-2 (USB+)	Always	Below 1 Ω
   J119-1-3 (USBS) - J118-1-3 (USBS)	Always	Below 1 Ω
   J119-2 (USBG) - J118-2 (USBG)	Always	Below 1 Ω
   J119-3 (VOT+) - J118-7 (VOR+)	Always	Below 1 Ω
   J119-4 (USBV) - J118-4 (USBV)	Always	Below 1 Ω
   J119-5 (VOT-) - J118-6 (VOR-)	Always	Below 1 Ω
   J119-6 (VOR-) - J118-5 (VOT-)	Always	Below 1 Ω
   J119-7 (VOR+) - J118-3 (VOT+)	Always	Below 1 Ω
   J119-1-1 (USB-) - Body ground	Always	10 kΩ or higher
   J119-1-2 (USB+) - Body ground	Always	10 kΩ or higher
   J119-1-3 (USBS) - Body ground	Always	10 kΩ or higher
   J119-2 (USBG) - Body ground	Always	10 kΩ or higher
   J119-3 (VOT+) - Body ground	Always	10 kΩ or higher
   J119-4 (USBV) - Body ground	Always	10 kΩ or higher
   J119-5 (VOT-) - Body ground	Always	10 kΩ or higher
   J119-6 (VOR-) - Body ground	Always	10 kΩ or higher
   J119-7 (VOR+) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to DCM (Telematics Transceiver))
   *2	Front view of wire harness connector (to Display and Navigation Module Display)

NG → REPLACE NO. 1 NAVIGATION WIRE

OK → See step   2
