VSC Off Switch: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 38
  3. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 40
  4. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 24
  5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 26
  6. REMOVE VSC OFF SWITCH
    1. Disengage the 4 claws and remove the VSC off switch with the switch base.

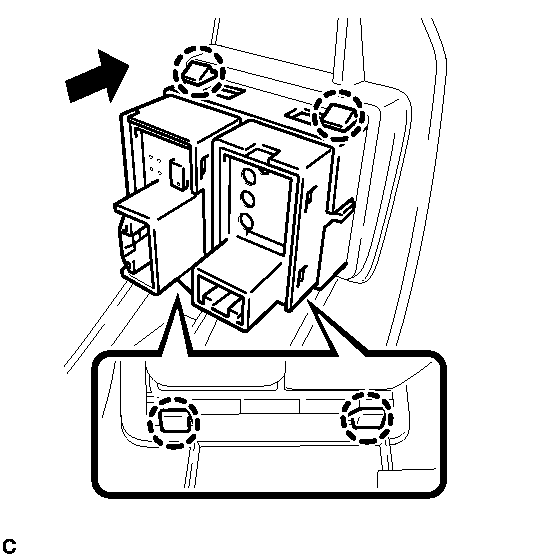

      Fig 1: Identifying Claws Of VSC OFF Switch
      GTY123593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the VSC off switch from the switch base.

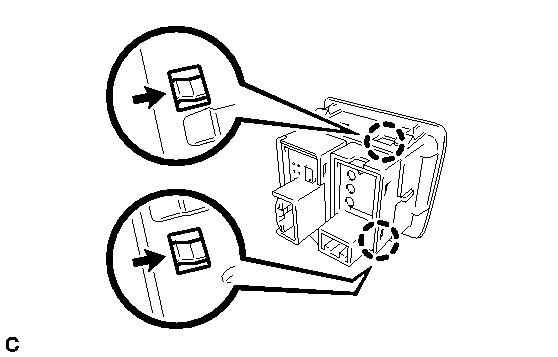

      Fig 2: Locating Claws Of VSC OFF Switch
      GTY108989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
