VSC Off Switch: Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL VSC OFF SWITCH

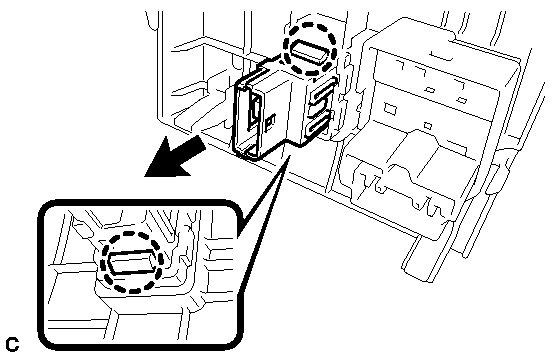

- Engage the 2 claws and install the VSC OFF switch.
- INSTALL INSTRUMENT PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 31
- INSTALL INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System) . Refer to INSTALLATION - Step 32
- INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL . Refer to INSTALLATION - Step 37
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- CHECK FOR WARNING LIGHT AND INDICATOR LIGHT
HINT:
Refer to TEST MODE PROCEDURE
