System Overview

Body:

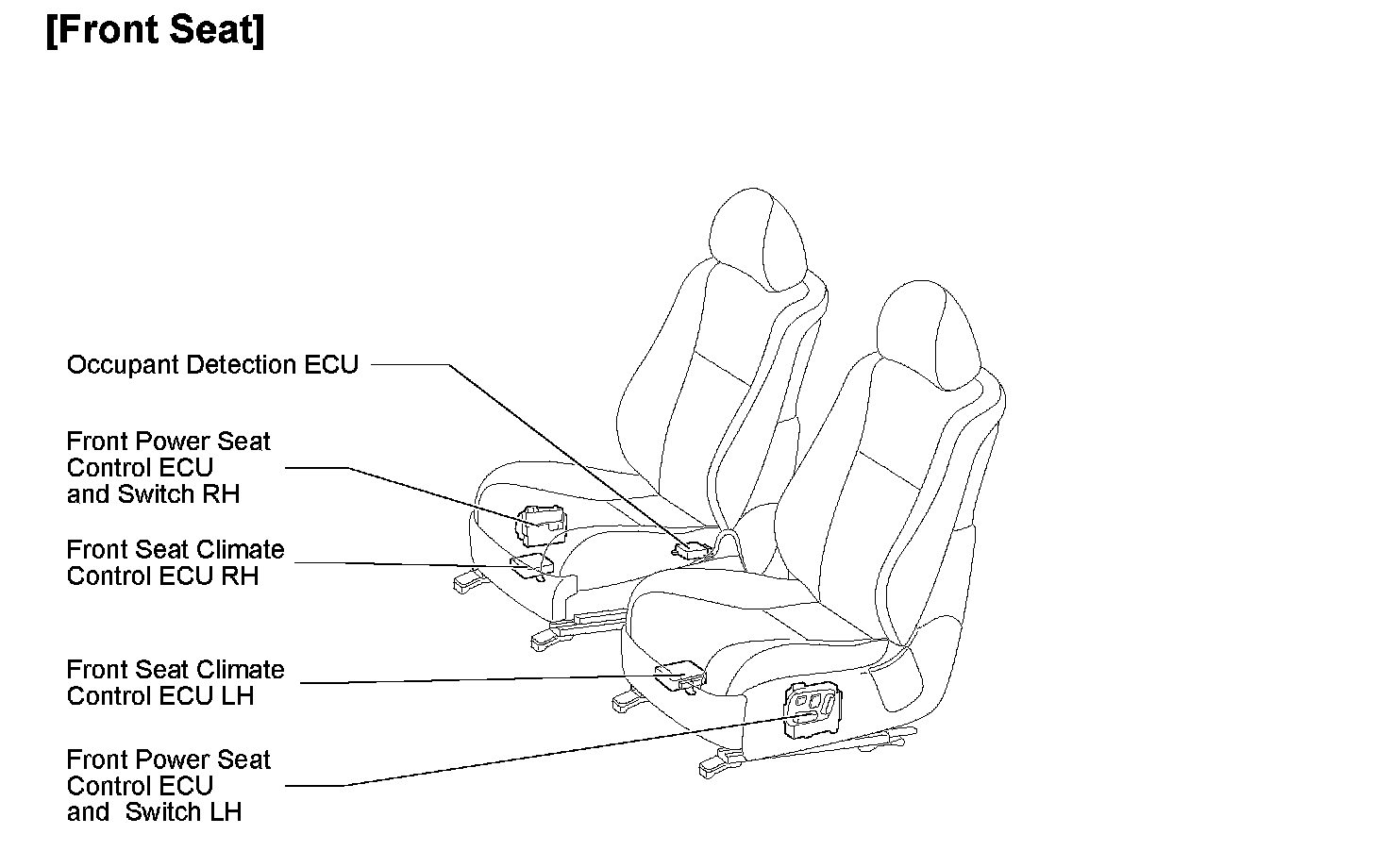

Front Seat:

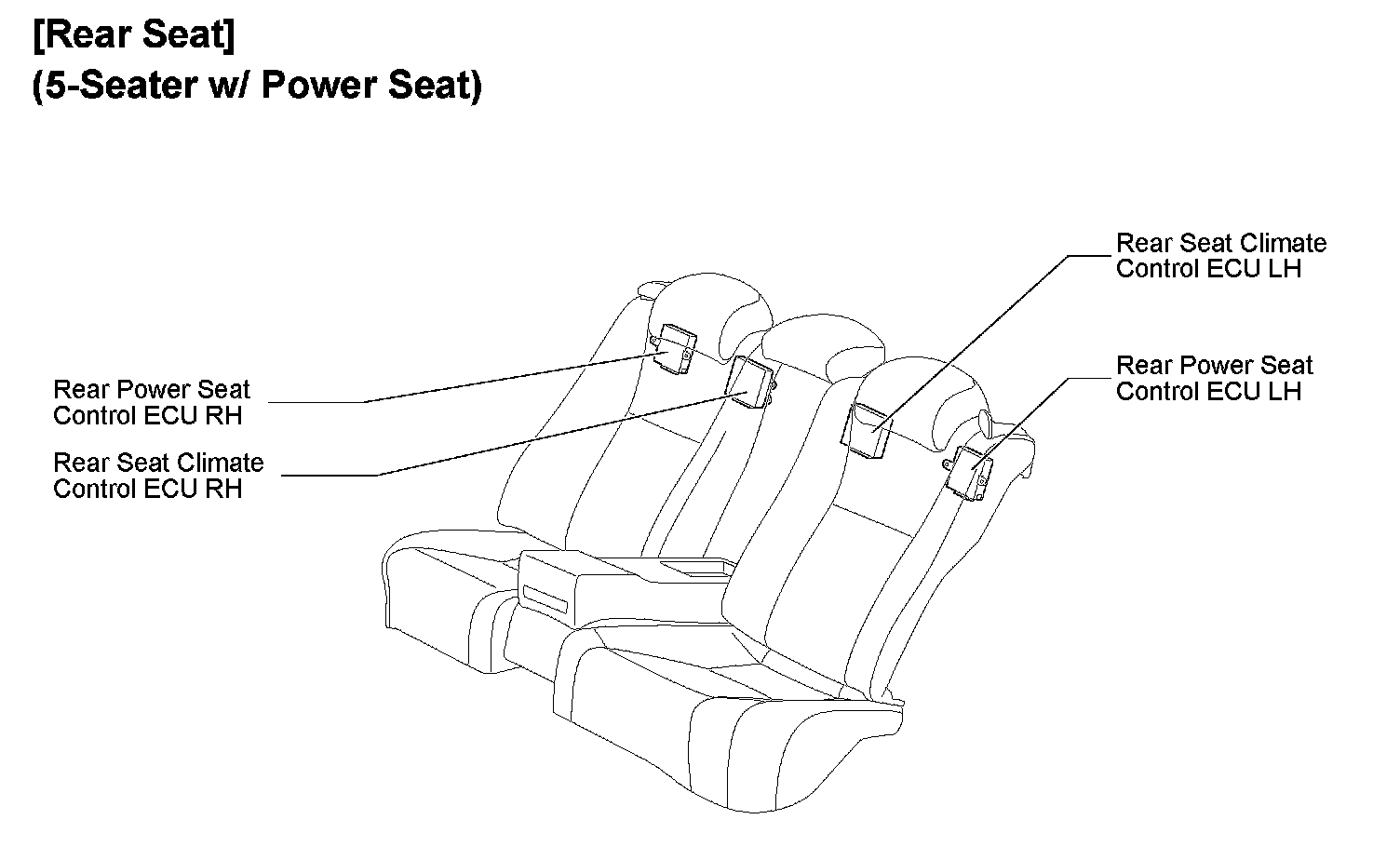

Rear Seat (5-Seater w/ Power Seat):

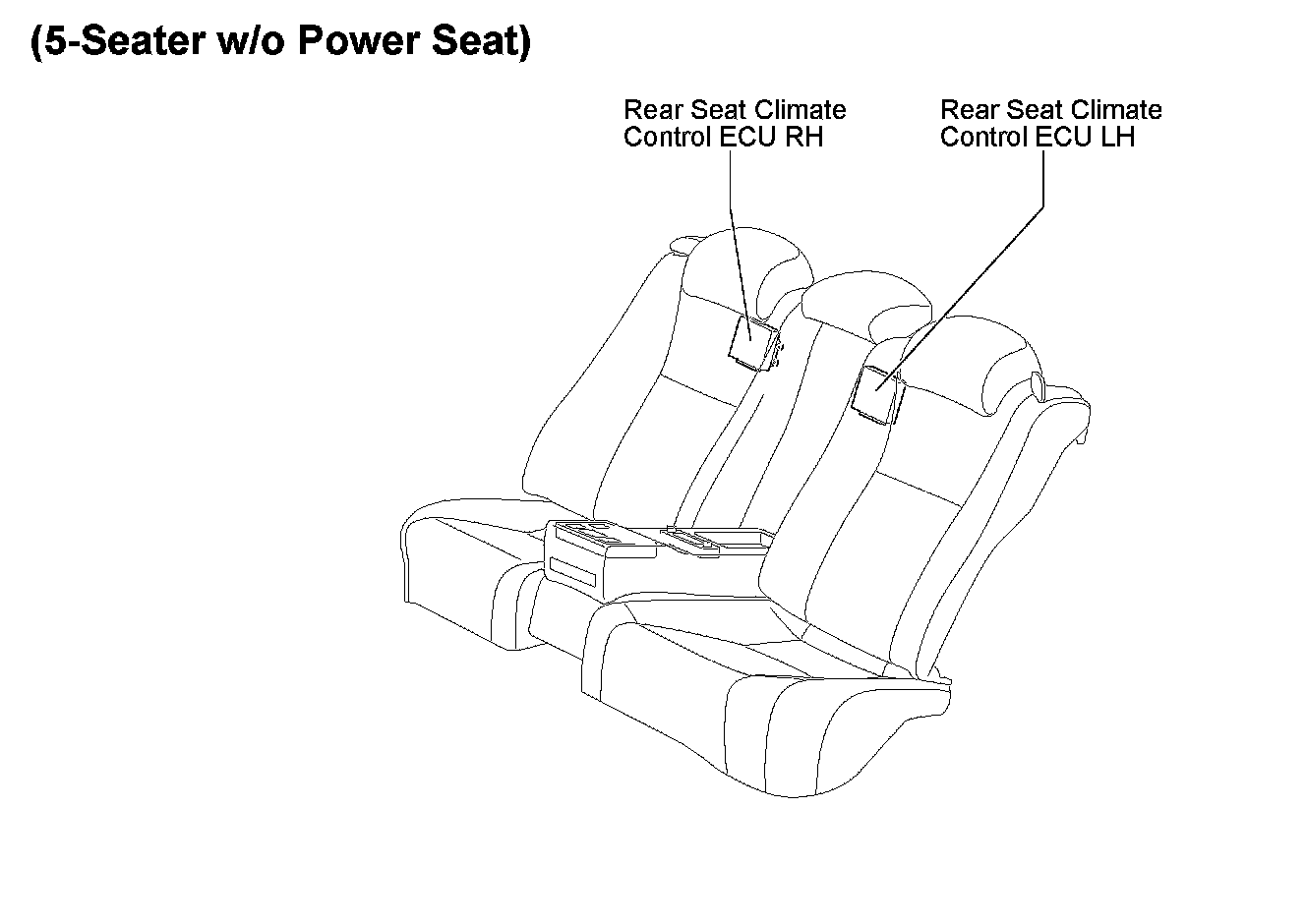

Rear Seat (5-Seater w/o Power Seat):

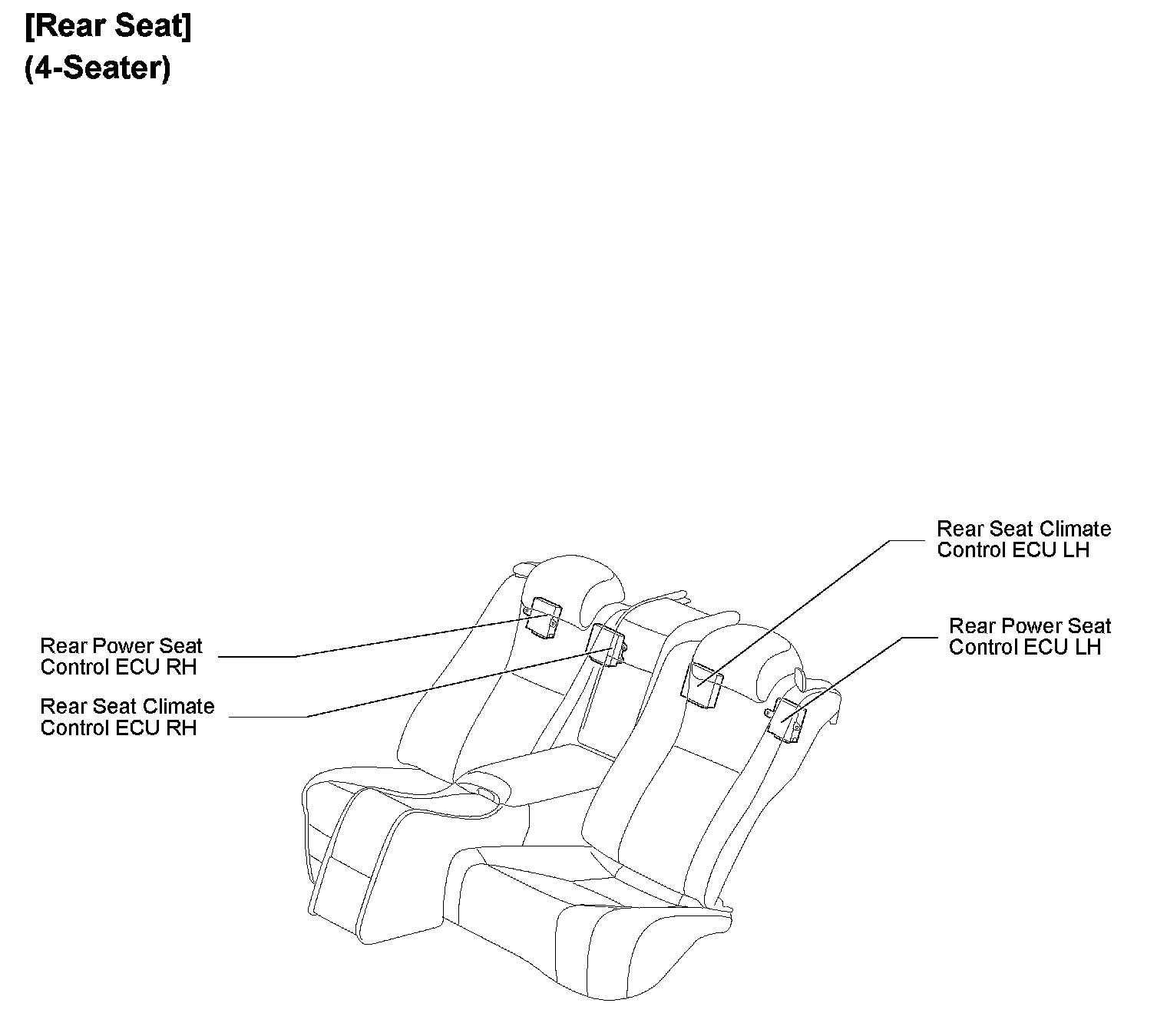

Rear Seat (4-Seater):
