Inspection





AA80E AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSPECTION

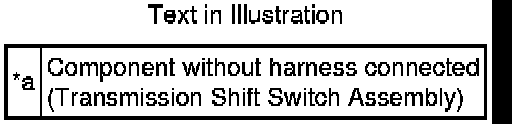

1. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (RH (+))





(a) Measure the resistance according to the value(s) in the table below.

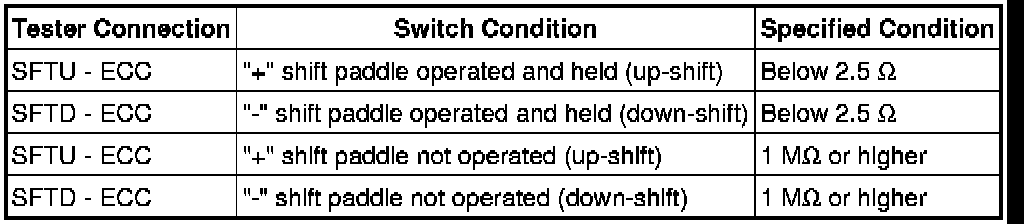

Standard Resistance:









(b) If the result is not as specified, replace the transmission shift switch assembly (RH (+)).

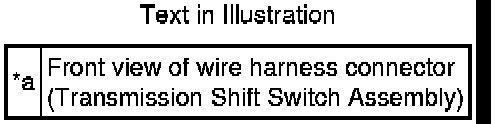

2. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (LH (-))





(a) Measure the resistance according to the value(s) in the table below.

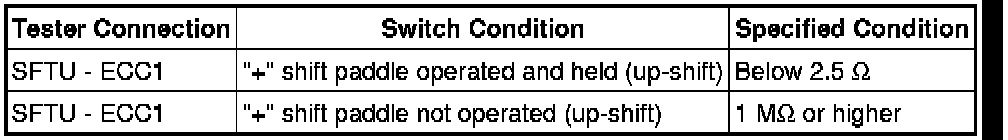

Standard Resistance:









(b) If the result is not as specified, replace the transmission shift switch assembly (LH (-)).
