DTC Check / Clear

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK/CLEAR (When Using the Techstream)
1. Check for DTCs.
  1. Connect the Techstream to the DLC3.
  2. Turn the ignition switch on (IG).
  3. Turn the Techstream on.
  4. Operate the Techstream to clear the codes.
    HINT:

    Refer to the Techstream operator's manual for further details.
  5. Check the details of the DTCs. Refer to DIAGNOSTIC TROUBLE CODE CHART .
2. Clear the DTCs.
  1. Connect the Techstream to the DLC3.
  2. Turn the ignition switch on (IG).
  3. Turn the Techstream on.
  4. Operate the Techstream to clear the codes.
    HINT:

    Refer to the Techstream operator's manual for further details.
  5. According to the display on the Techstream, select the trouble code data display with the clear button.

DTC CHECK/CLEAR (When not Using the Techstream)

Check for DTCs.

Fig 1: Identifying Terminals TC And CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, connect terminals TC and CG of the DLC3.
- SST: 09843-18040
Turn the ignition switch on (IG).

Observe the blinking pattern of the ABS warning and SLIP indicator lights in order to identify the DTC.

HINT:

If no code appears, inspect the TC and CG terminal circuit, and ABS warning and SLIP indicator light circuits.

Trouble Area	See procedure
TC and CG terminal circuit	Refer to TC and CG Terminal Circuit
ABS warning light circuit (Remains on)	Refer to ABS Warning Light Remains ON
ABS warning light circuit (Does not comes on)	Refer to ABS Warning Light does not Come ON
SLIP indicator light circuit (Remains on)	Refer to Slip Indicator Light Remains ON
SLIP indicator light circuit (Does not comes on)	Refer to Slip Indicator Light does not Come ON

Count the number of blinks of the ABS warning and SLIP indicator lights.
HINT:
- How to read DTCs:
  Diagnostic trouble codes are represented by the number of blinks of a warning light. For example, code 21 would be shown by 2 blinks, a pause of 1.5 seconds, and then 1 blink.
- If one code is detected:
  The light repeats the same code after a pause of 4 seconds.
- If multiple codes are detected:
  The light outputs one code after another with a 2.5-second pause between each code. When all codes have been output, there is a 4-second pause and then the light begins to output the codes again.
Check the details of the DTCs. Refer to DIAGNOSTIC TROUBLE CODE CHART .
After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.

Clear the DTCs.

Fig 2: Identifying Terminals TC And CG Of DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using SST, connect terminals TC and CG of the DLC3.
  - SST: 09843-18040
2. Turn the ignition switch on (IG).
3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.

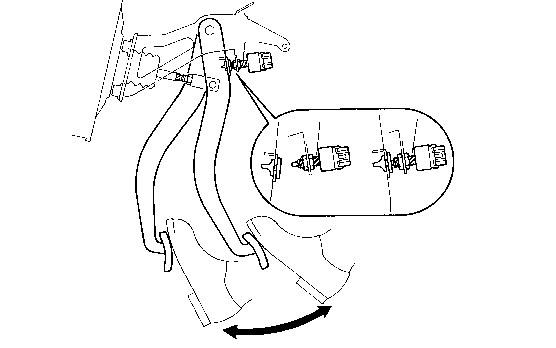

  Fig 3: Depressing Brake Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check that the warning light indicates a normal system code.
5. Remove SST from the terminals of the DLC3.
  HINT:

  Clearing the DTCs cannot be performed by disconnecting the battery terminal or the ECU-IG fuse.

END OF CHECK/CLEAR
1. Turn the ignition switch on (IG).
2. Check that the ABS warning and SLIP indicator lights go off within approximately 3 seconds after turning the ignition switch on (IG).
