System Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

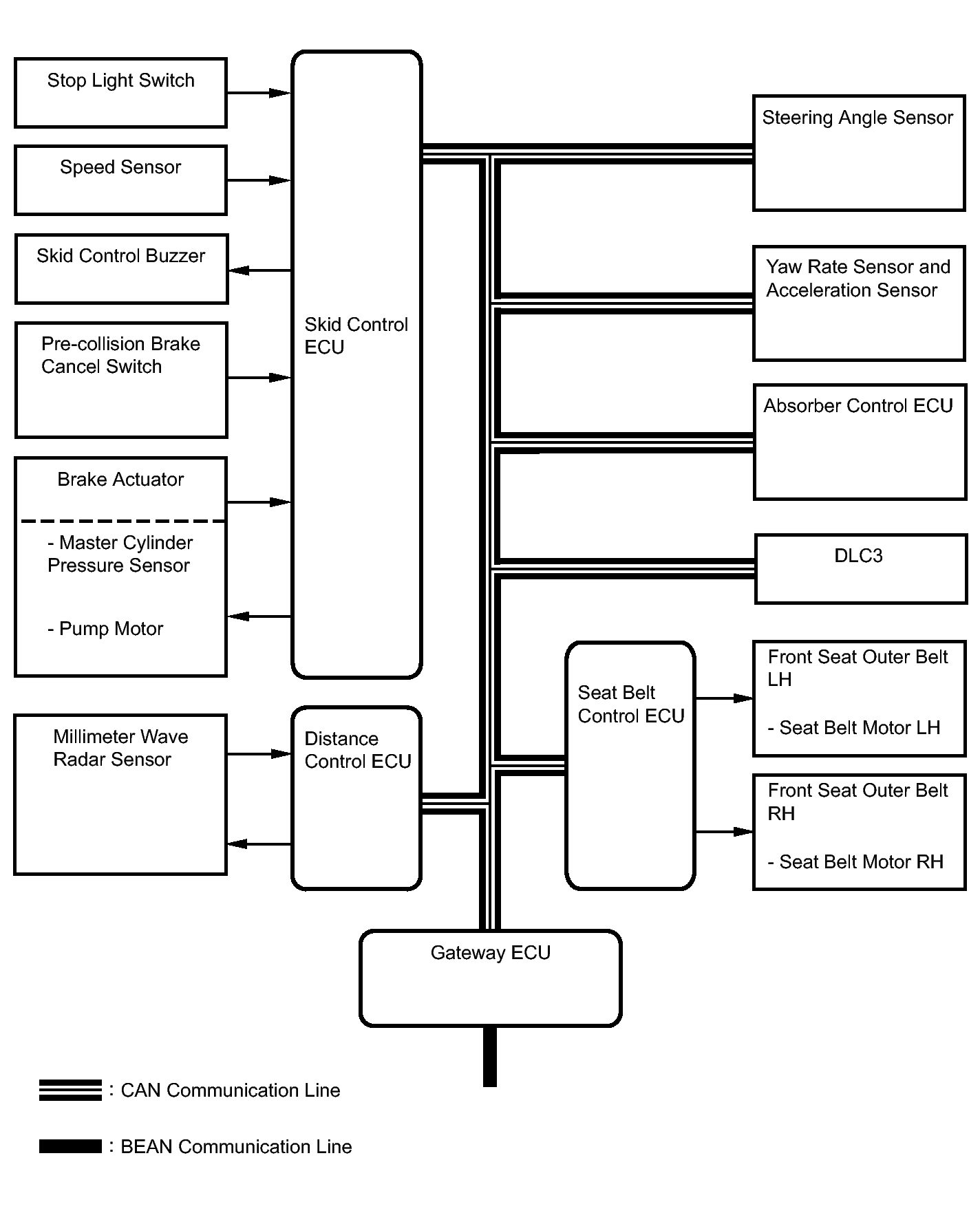

Fig 1: Main Body ECU - Wiring Diagram (1 Of 2)
GTY275491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

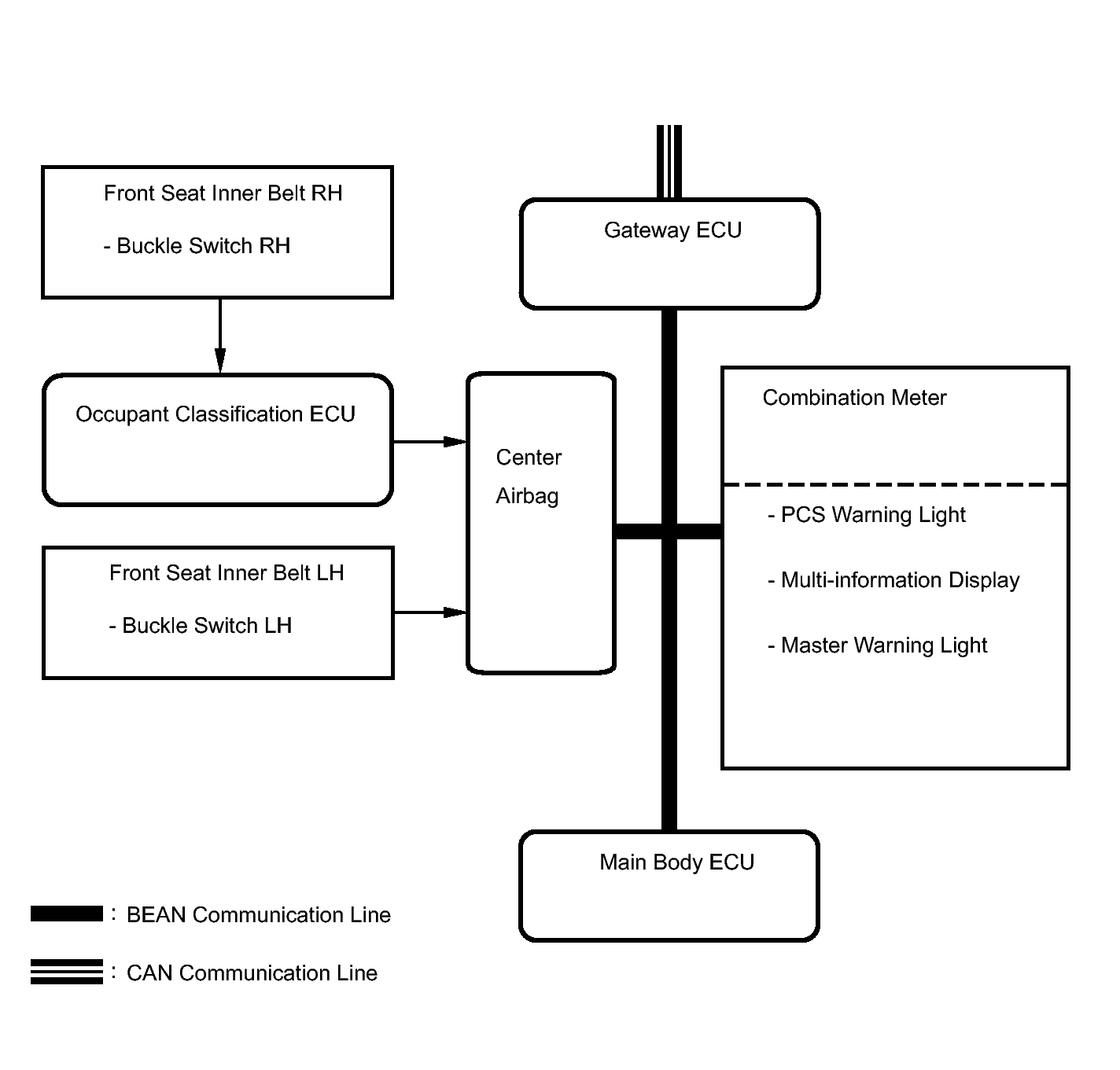

Fig 2: Main Body ECU - Wiring Diagram (2 Of 2)
GTY263695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender ECU Receiver Signal Line
Distance control ECU Seat belt control ECU
  • Relative vehicle speed signal
  • Vehicle-to-vehicle distance signal
  • Seat belt operation signal
 CAN
Skid control ECU
  • Vehicle speed signal
  • Seat belt operation signal
  • VSC control signal
  • Stop light ON/OFF signal
Center airbag sensor
  • Buckle switch malfunction signal
  • Driver seat belt buckle switch signal
  • Passenger seat belt buckle switch signal
 BEAN - CAN
Seat belt control ECU Combination meter
  • Pre-collision system malfunction signal
Distance control ECU Skid control ECU
  • Brake assist standby signal
  • Brake warning buzzer request signal
 CAN
Distance control ECU Absorber control ECU Absorber control signal CAN
