Clock Power Source Circuit: Procedure

CHECK HARNESS AND CONNECTOR (CLOCK - BATTERY AND BODY GROUND)

Disconnect the L38 clock assembly connector.

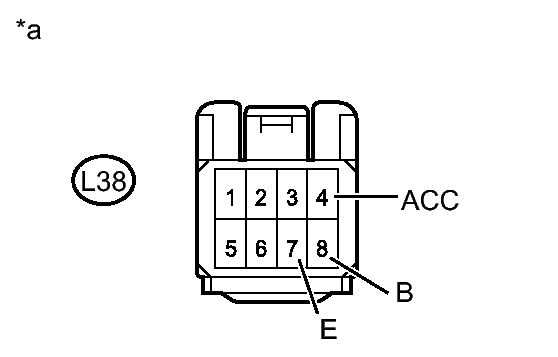

Fig 1: Identifying L38 Clock Assembly Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
L38-7 (E) - Body ground	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
L38-4 (ACC) - Body ground	Power switch on (ACC)	11 to 14 V
L38-8 (B) - Body ground	Always	11 to 14 V

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Clock Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 2

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
