DTC B2274: ACC Monitor Malfunction: Procedure

WARNING: This page is about a different car, the 2011 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (BATTERY - POWER MANAGEMENT CONTROL ECU) See step   1

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - POWER MANAGEMENT CONTROL ECU)

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND) See step   2

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND)

    OK: Go to next step

  3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    1. Remove the instrument panel junction block assembly. Refer to REMOVAL - Step 2 .

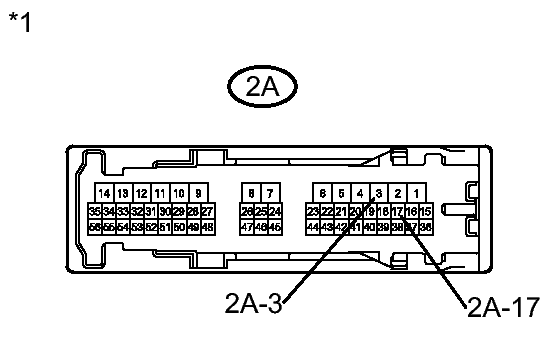

      Fig 1: Instrument Panel Junction Block Assembly
      GTY351673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      2A-3 - 2A-17 20°C (68°F) 81.49 to 118.98 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Instrument Panel Junction Block Assembly)

    NG → See step   7

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR
    1. Measure the resistance according to the value(s) in the table below.

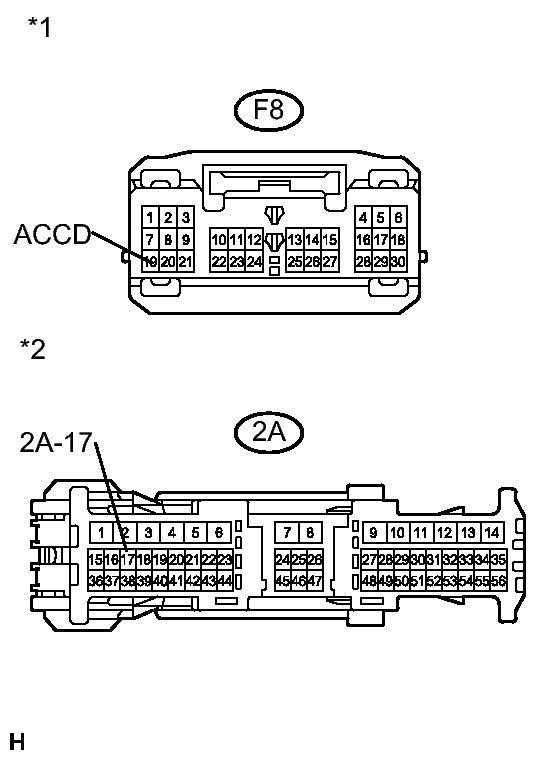

      Fig 2: Power Management Control ECU & Instrument Panel Junction Block Assembly
      GTY351374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      F8-19 (ACCD) - 2A-17 Always Below 1 Ω
      F8-19 (ACCD) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Power Management Control ECU)
      *2 Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BODY GROUND)
    1. Measure the resistance according to the value(s) the table below.
      Fig 3: 2A Connector
      GTY349378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      2A-3 - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BODY GROUND)

    OK: Go to next step

  6. INSPECT POWER MANAGEMENT CONTROL ECU
    1. Reinstall the instrument panel junction block assembly. Refer to INSTALLATION - Step 4 .

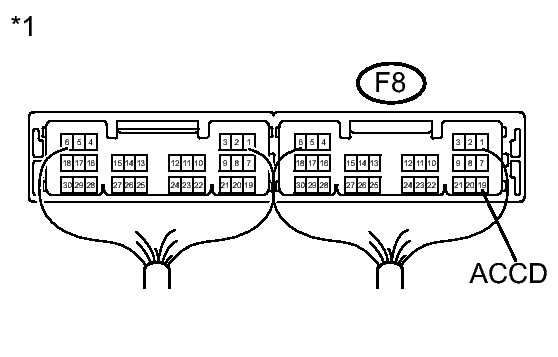

      Fig 4: F8 Connector
      GTY358181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reconnect the F8 connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      F8-19 (ACCD) - Body ground Engine switch on (ACC) Output voltage at terminal AM21 or AM22 -2.5 V or more
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Power Management Control ECU)

    NG → See step   8

    OK → See step   9

  7. REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL - Step 2
  8. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  REMOVAL
  9. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
