DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor "A" Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2011 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

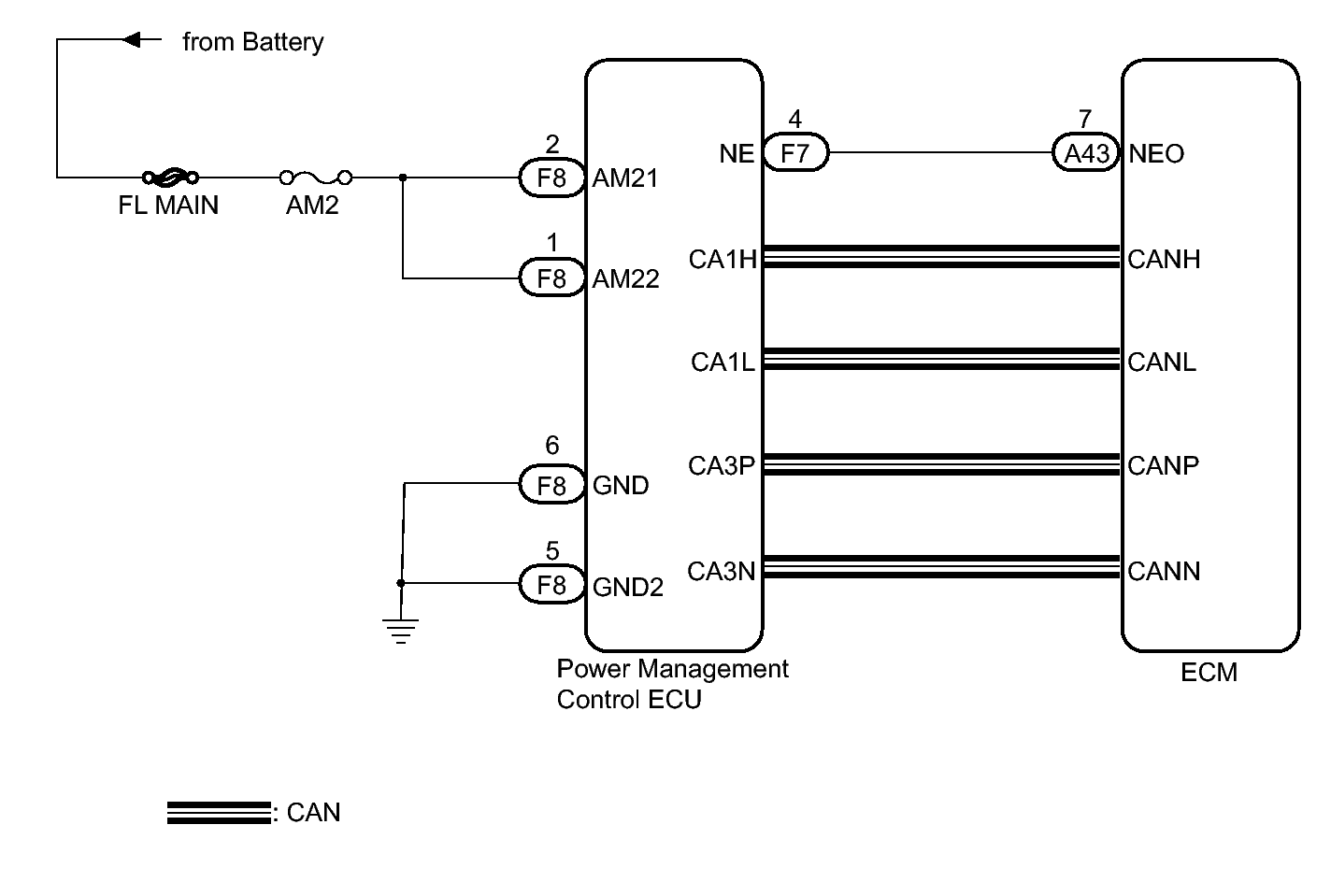

Fig 1: Identifying Runnable Signal & Crankshaft Position Sensor "A" Circuit Wiring Diagram
GTY353722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
