WARNING: This page is about a different car, the 2011 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

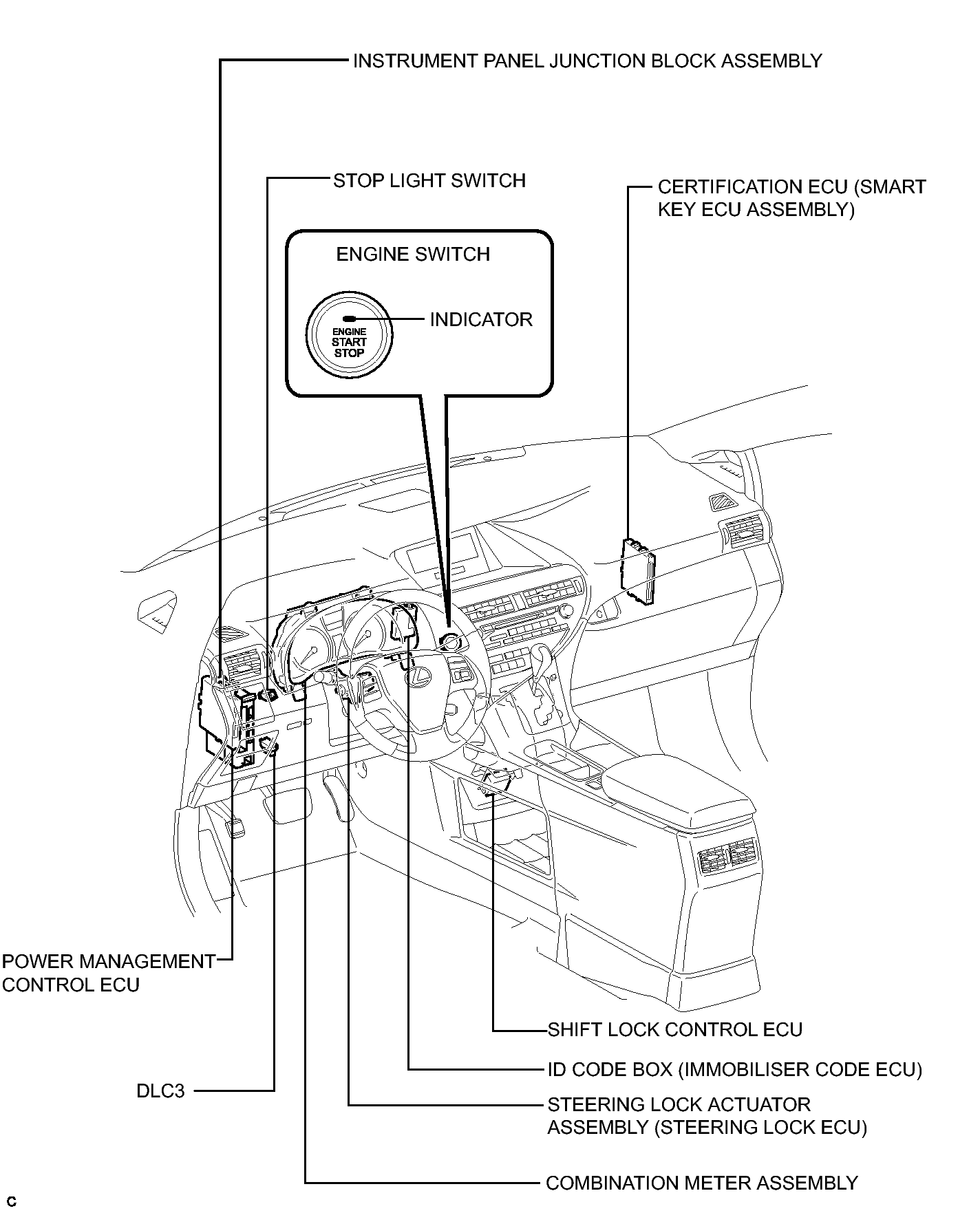

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 2)
