Combination Meter: Notes

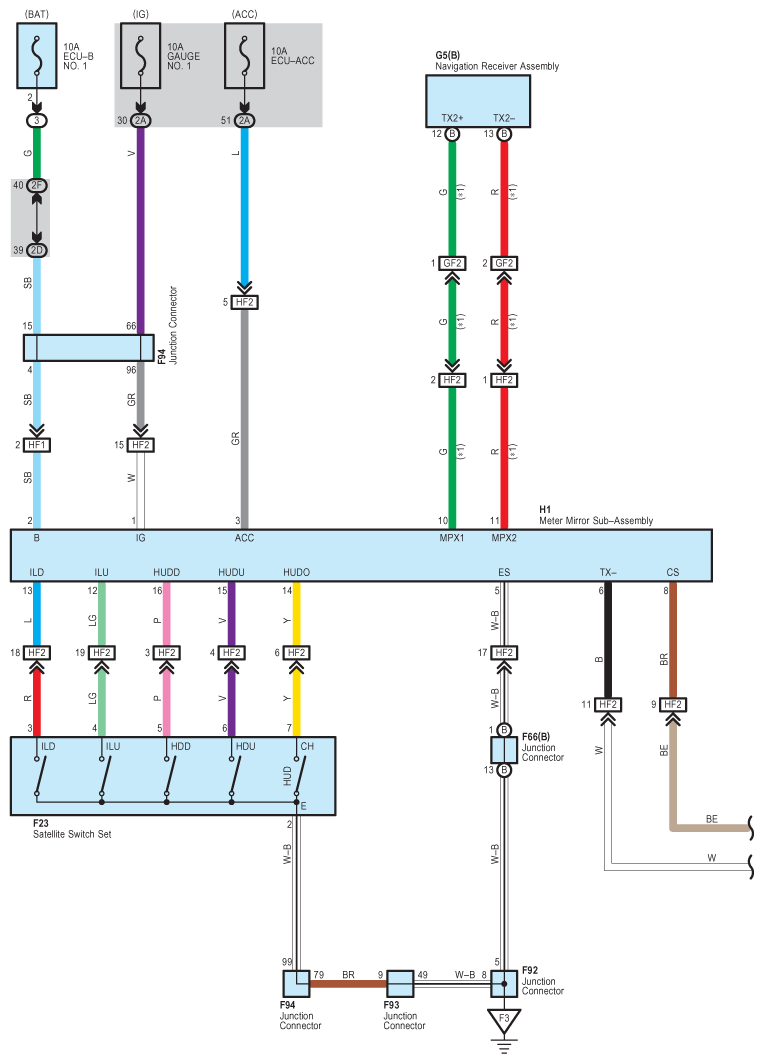

Fig 1: Combination Meter - Circuit Diagram (1 Of 11)
G07574601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

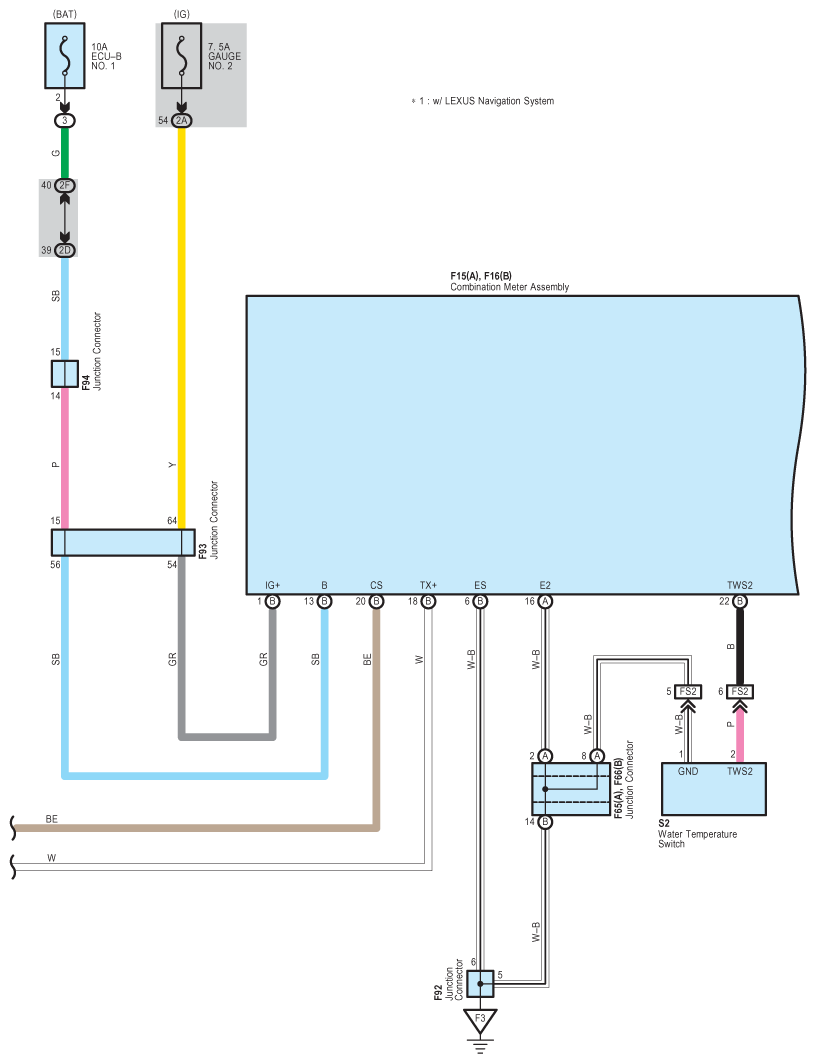

Fig 2: Combination Meter - Circuit Diagram (2 Of 11)
G07574602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

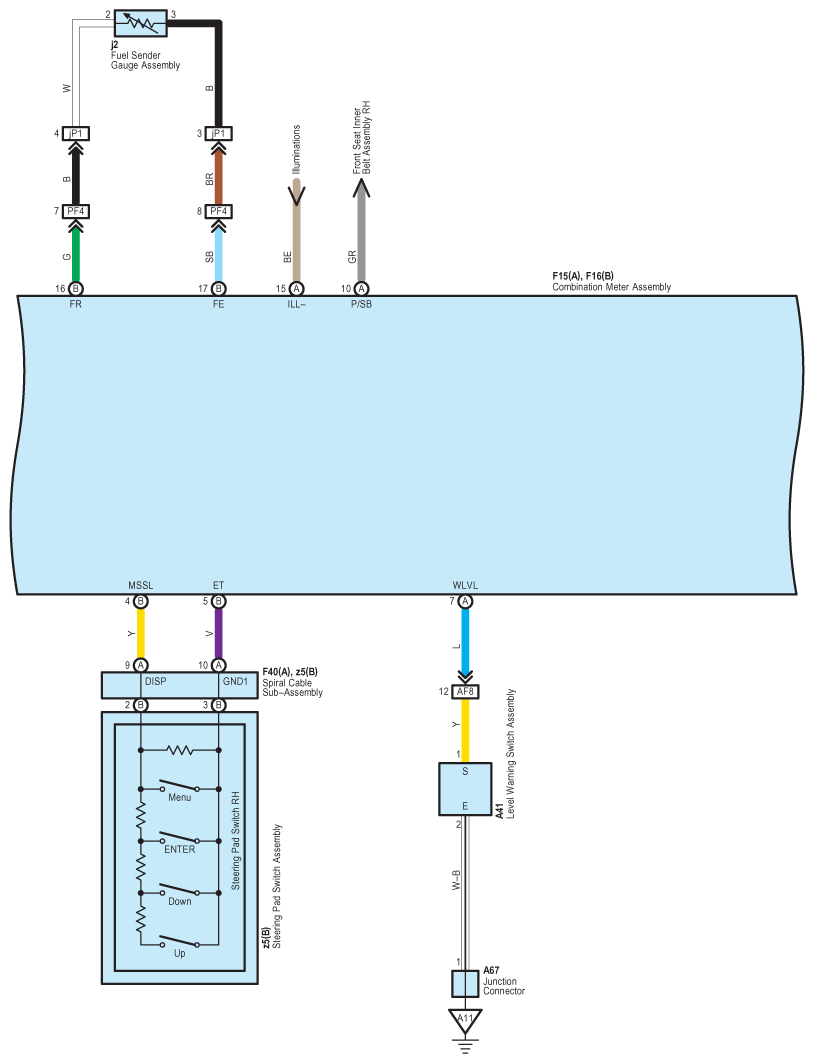

Fig 3: Combination Meter - Circuit Diagram (3 Of 11)
G07574603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

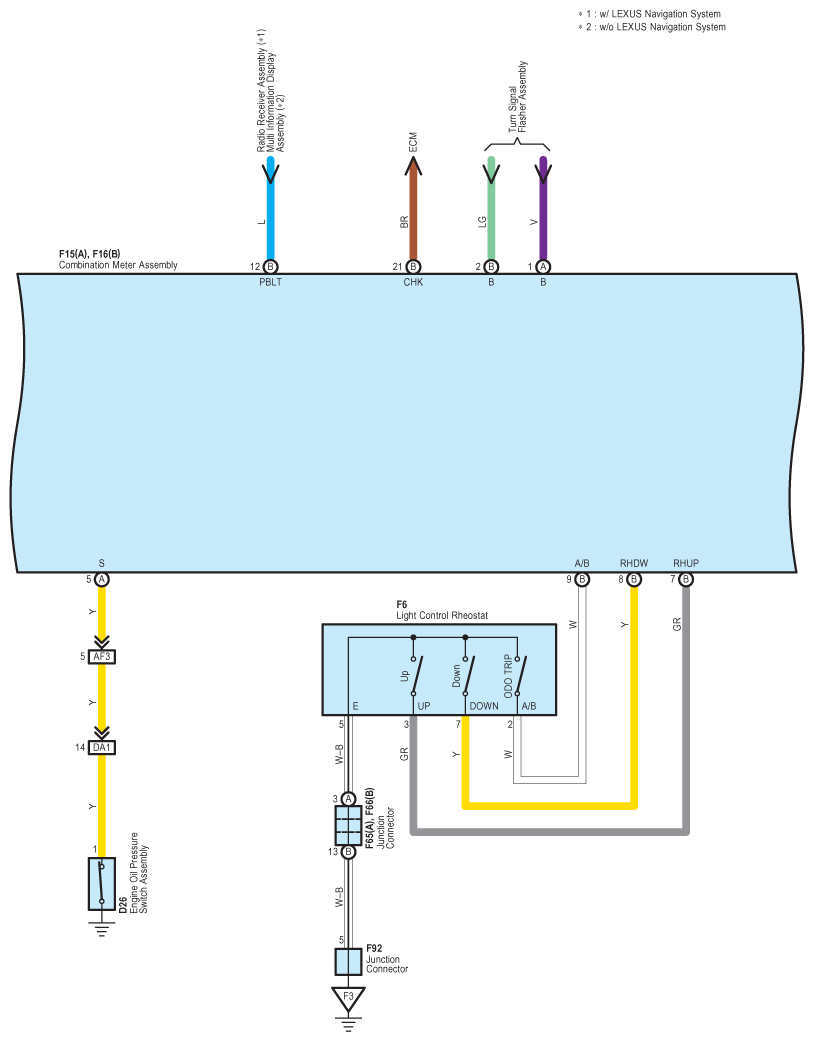

Fig 4: Combination Meter - Circuit Diagram (4 Of 11)
G07574604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

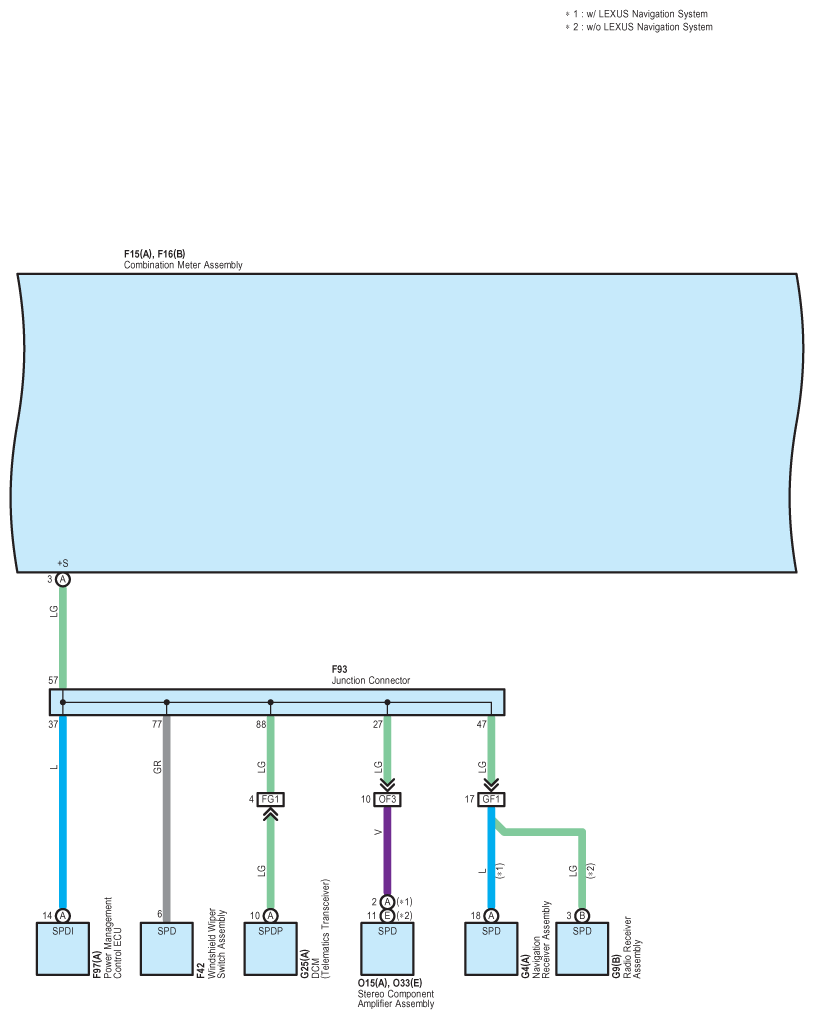

Fig 5: Combination Meter - Circuit Diagram (5 Of 11)
G07574605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

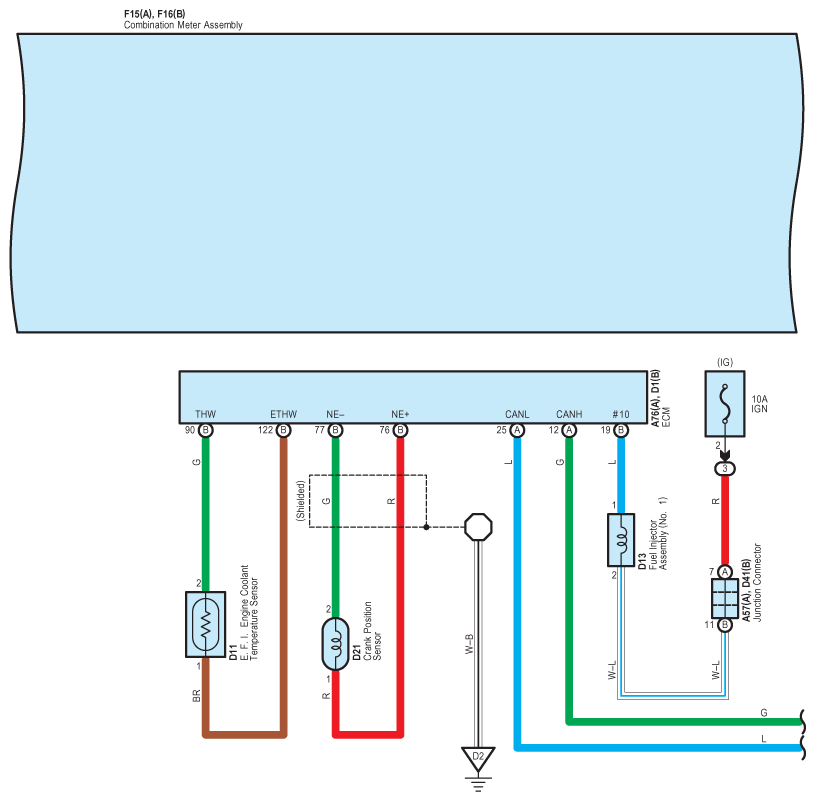

Fig 6: Combination Meter - Circuit Diagram (6 Of 11)
G07574606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

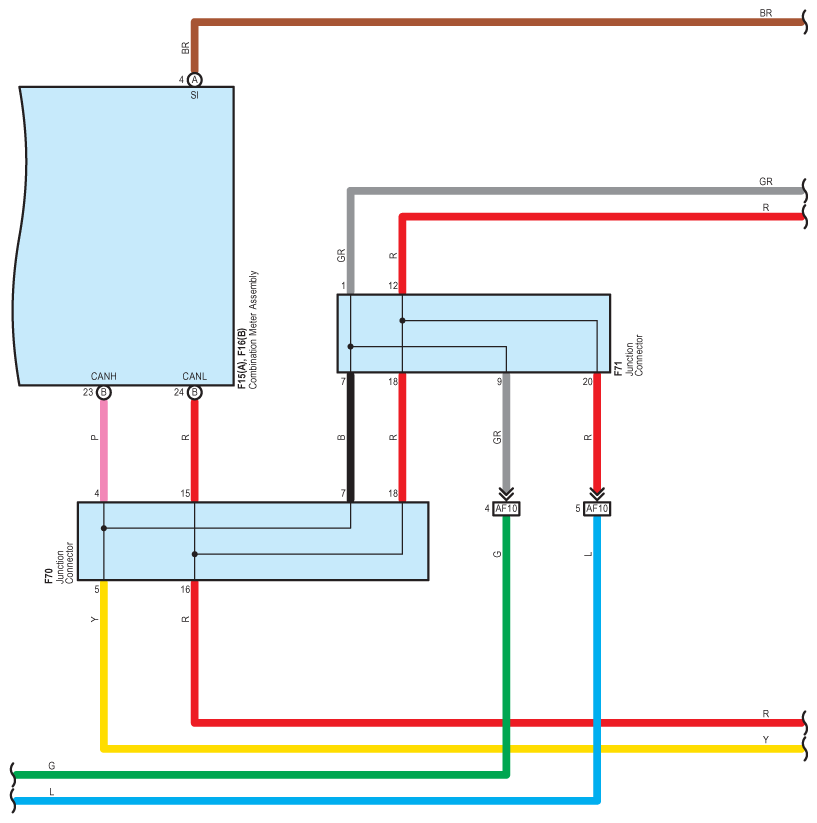

Fig 7: Combination Meter - Circuit Diagram (7 Of 11)
G07574607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

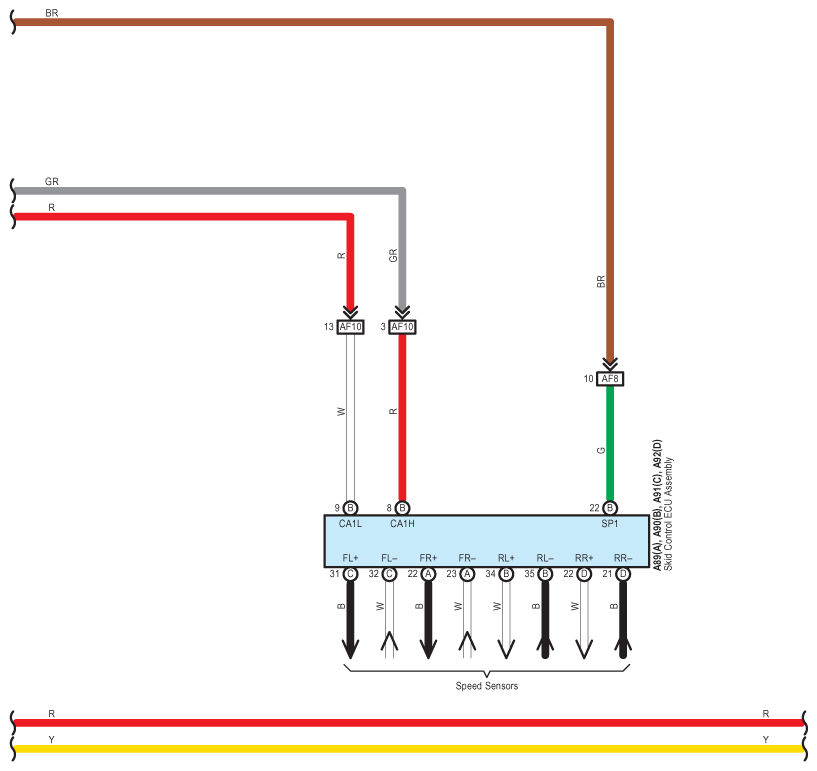

Fig 8: Combination Meter - Circuit Diagram (8 Of 11)
G07574608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

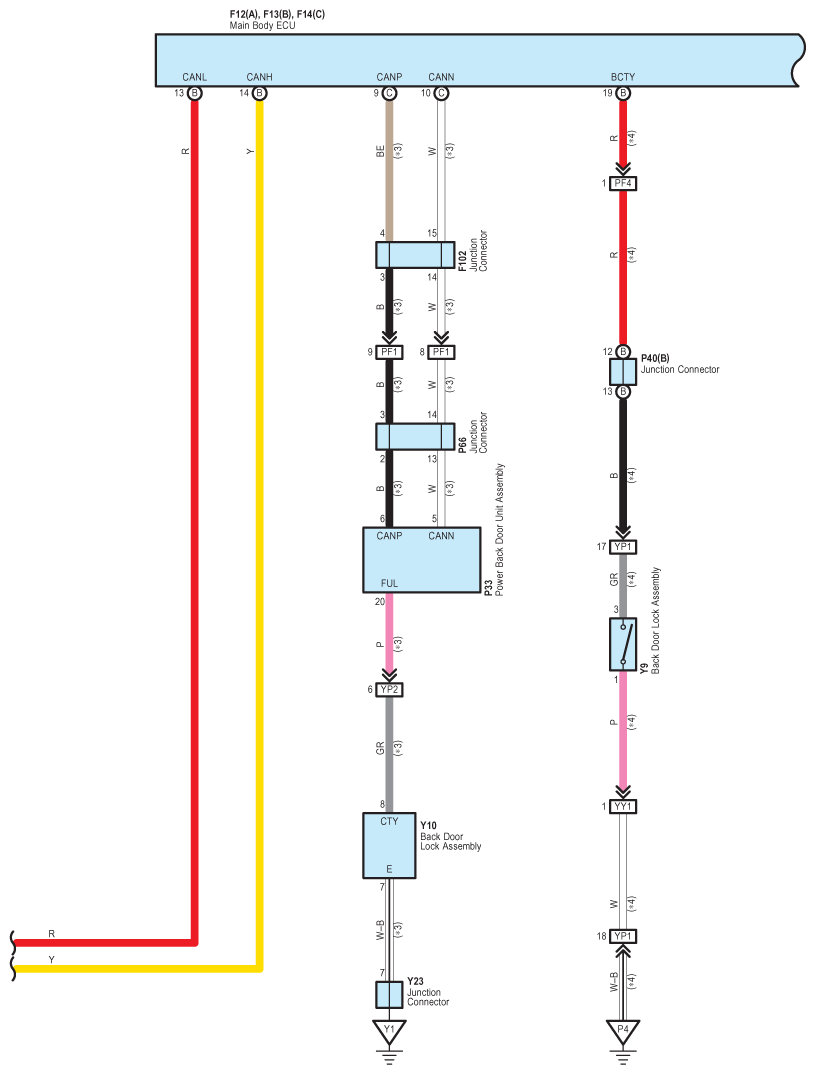

Fig 9: Combination Meter - Circuit Diagram (9 Of 11)
G07574609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

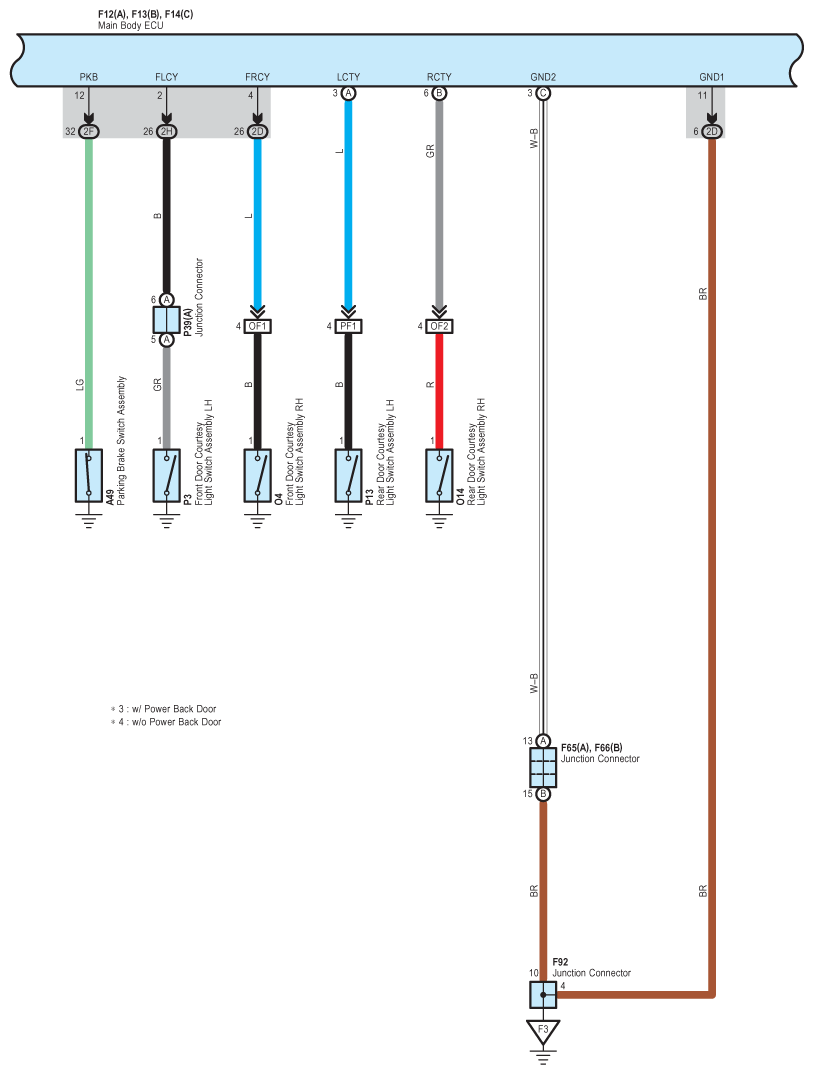

Fig 10: Combination Meter - Circuit Diagram (10 Of 11)
G07574610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

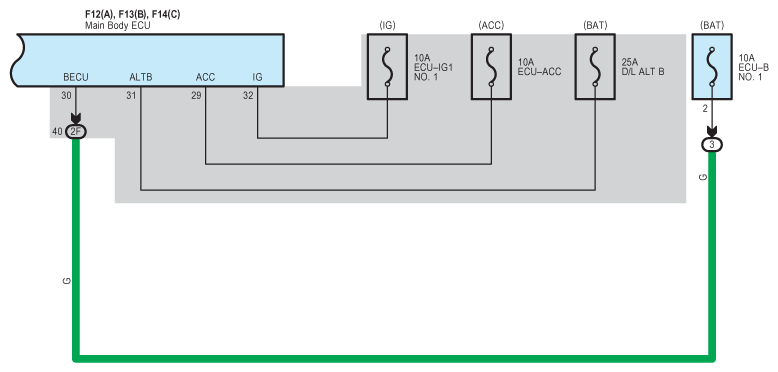

Fig 11: Combination Meter - Circuit Diagram (11 Of 11)
G07574611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
