DESCRIPTION OF OCCUPANT CLASSIFICATION SYSTEM
1. GENERAL DESCRIPTION.
  1. In the occupant classification system, the occupant classification ECU calculates the weight of the occupant based on a signal from the occupant classification sensors. This system recognizes the occupant to be a child if it detects a weight of less than 36 kg (79.37 lb), and disables the front passenger airbag and front passenger side-side airbag.
  2. This system is mainly comprised of 4 occupant classification sensors that detect the load on the front passenger seat. The occupant classification ECU controls the system, and the passenger airbag ON/OFF indicator indicates the ON/OFF condition of the front passenger airbag and front passenger side-side airbag.
2. OCCUPANT CLASSIFICATION SENSOR.

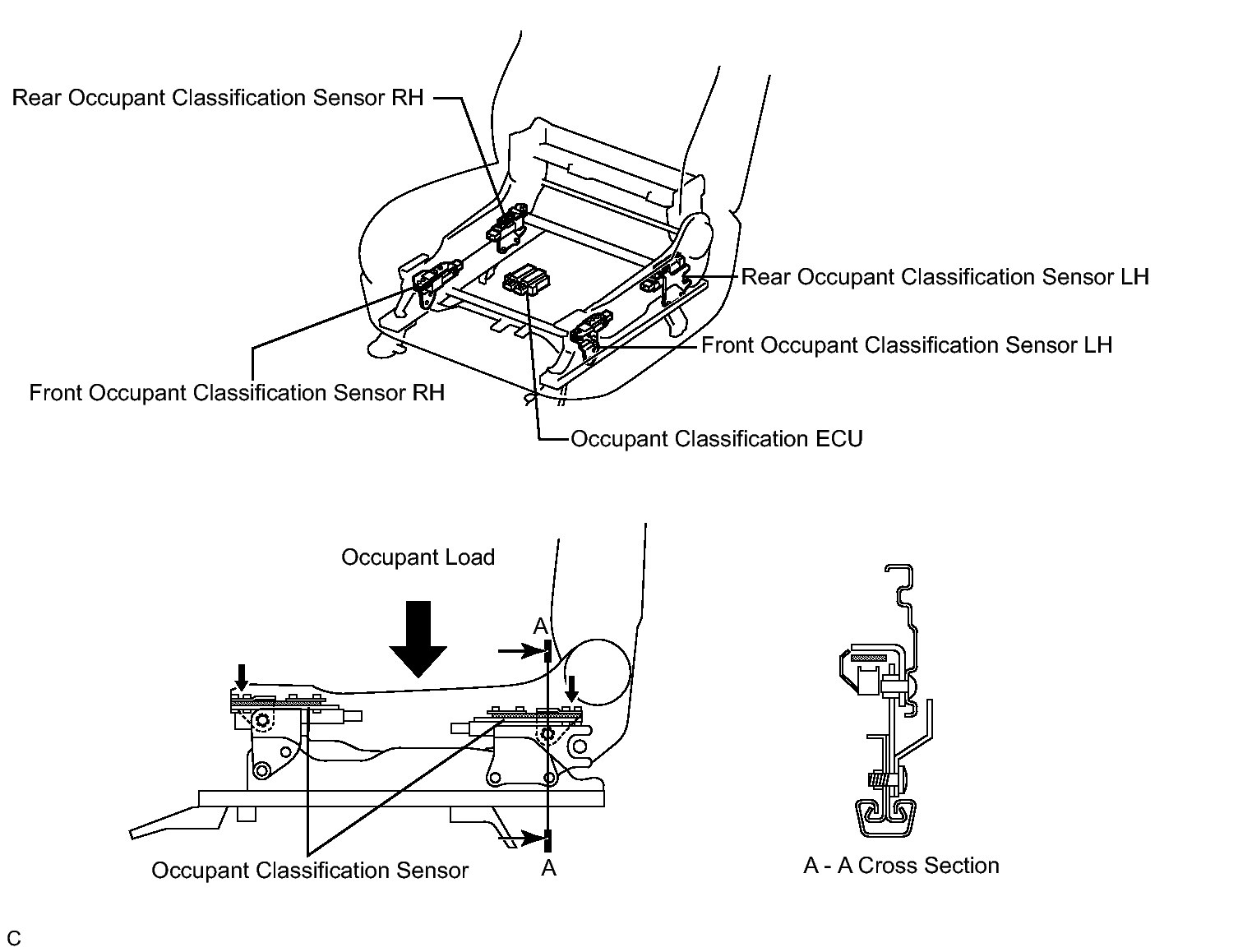

  Fig 1: Locating Front And Rear Occupant Classification Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. The occupant classification sensors are installed on 4 brackets connecting the seat rail and seat frame. Accordingly, when load is applied to the front passenger seat by an occupant sitting in it, the occupant classification sensors register a distortion.
3. DESCRIPTION FOR PASSENGER AIRBAG ON/OFF INDICATOR.

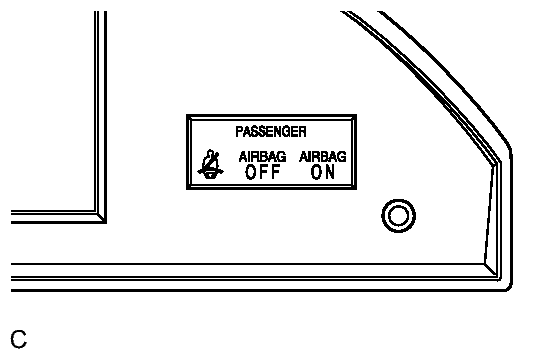

  Fig 2: Identifying Passenger Airbag ON/OFF Indicator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. The passenger airbag ON/OFF indicator is installed on the accessory meter assembly. This indicator informs the driver by ON/OFF indication, whether the occupant classification ECU puts the front passenger airbag assembly into an active state or inactive state.
  2. If a malfunction occurs in the occupant classification system, "OFF" indication of the passenger airbag ON/OFF indicator and the SRS warning light turn on.
