Installation

AUDIO / VISUAL: NETWORK GATEWAY ECU: INSTALLATION

1. INSTALL NETWORK GATEWAY ECU

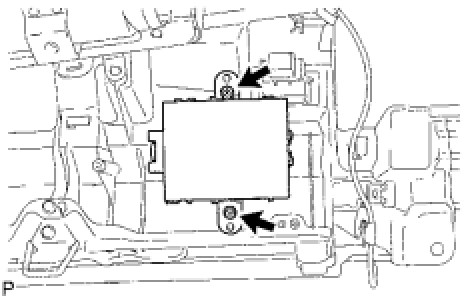

(a) Install the ECU with the 2 screws.

2. INSTALL INSTRUMENT PANEL REINFORCEMENT Reassembly

3. INSTALL NO. 2 HEATER TO REGISTER DUCT Reassembly

4. INSTALL NO. 3 HEATER TO REGISTER DUCT Reassembly

5. INSTALL NO. 1 HEATER TO REGISTER DUCT Reassembly

6. INSTALL FRONT DEFROSTER NOZZLE Reassembly

7. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT Reassembly

8. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT Reassembly

9. INSTALL NO. 1 INSTRUMENT PANEL PIN Reassembly

10. INSTALL STEERING COLUMN ASSEMBLY Reassembly

11. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad Installation.

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

13. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
