Memory Positioning Switch: Testing and Inspection

SEAT: SEAT MEMORY SWITCH: INSPECTION

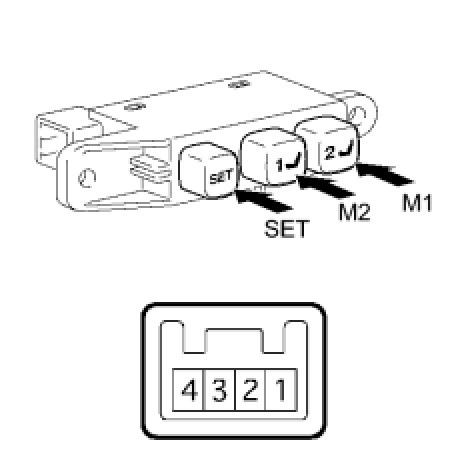

1. INSPECT SEAT MEMORY SWITCH LH





(a) Measure the resistance of the switch.

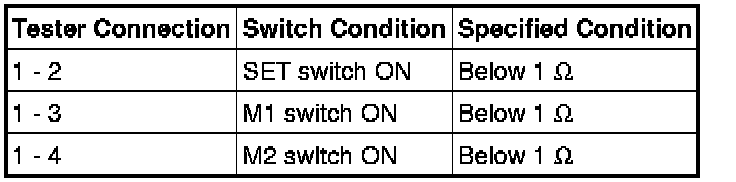

Standard resistance:





* If the result is not as specified, replace the memory switch.

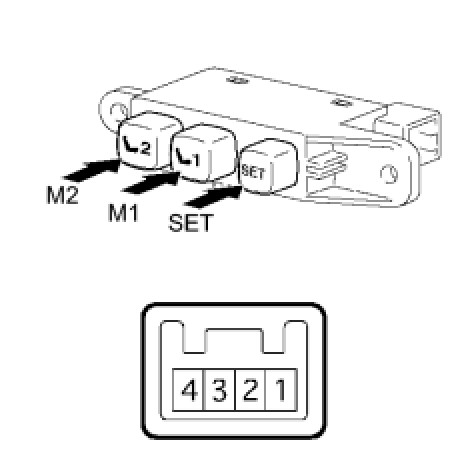

2. INSPECT SEAT MEMORY SWITCH RH





(a) Measure the resistance of the switch.

Standard resistance:





* If the result is not as specified, replace the memory switch.
