Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY





(a) Install the switch and steering wheel boss cover lower.

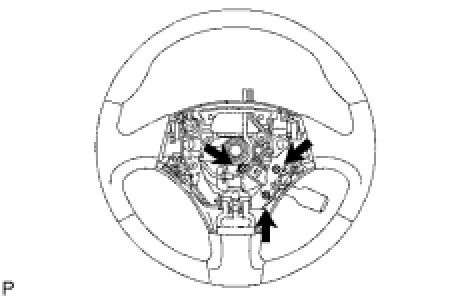

(b) Install the 3 screws.

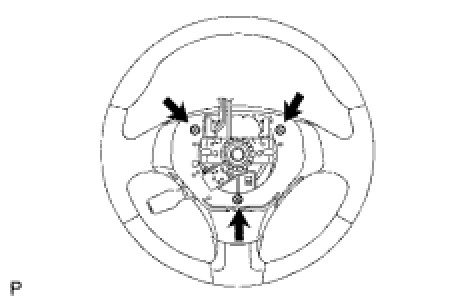

(c) Install the 3 screws.





2. INSTALL STEERING WHEEL ASSEMBLY Installation

3. INSTALL STEERING PAD ASSEMBLY Installation

4. INSTALL STEERING PAD SWITCH MODULATOR





(a) Install the modulator and then connect the connector.

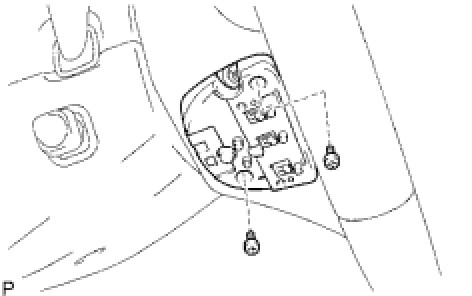

(b) Install the 2 screws.

5. INSTALL SWITCH AND VOLUME CASE

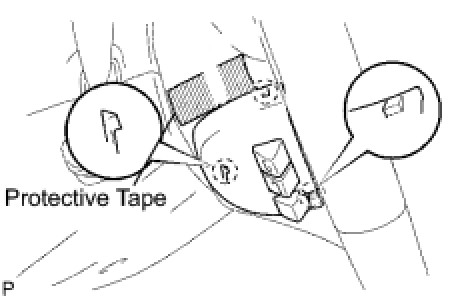

(a) Attach the 3 claws to install the case.

6. INSTALL NO. 2 STEERING WHEEL COVER LOWER

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
