Quarter Window Glass: Components: Illustration

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (1 Of 3)
GTY117658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

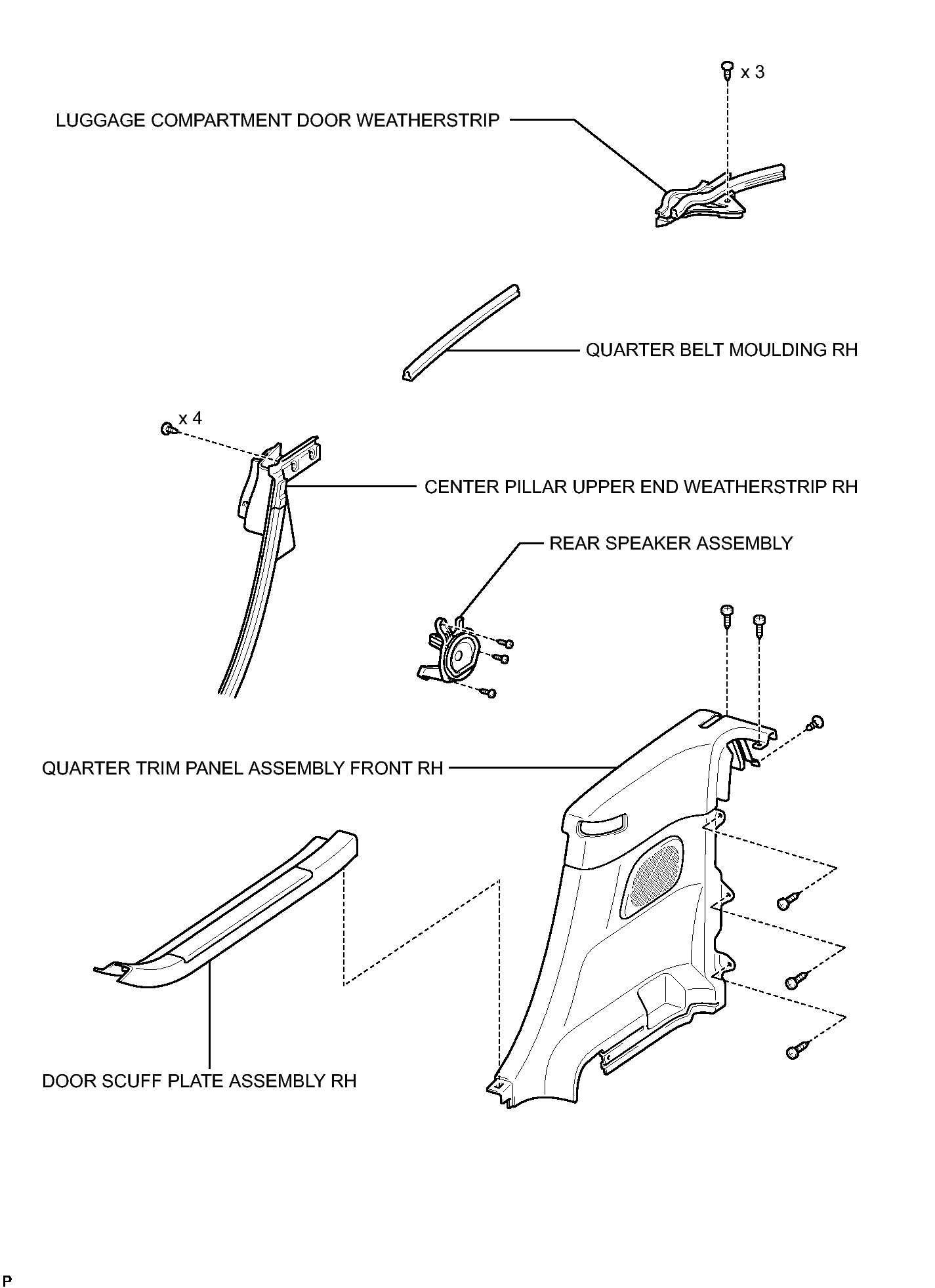

Fig 1: Identifying Quarter Window Glass Replacement Components (2 Of 3)
GTY117660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

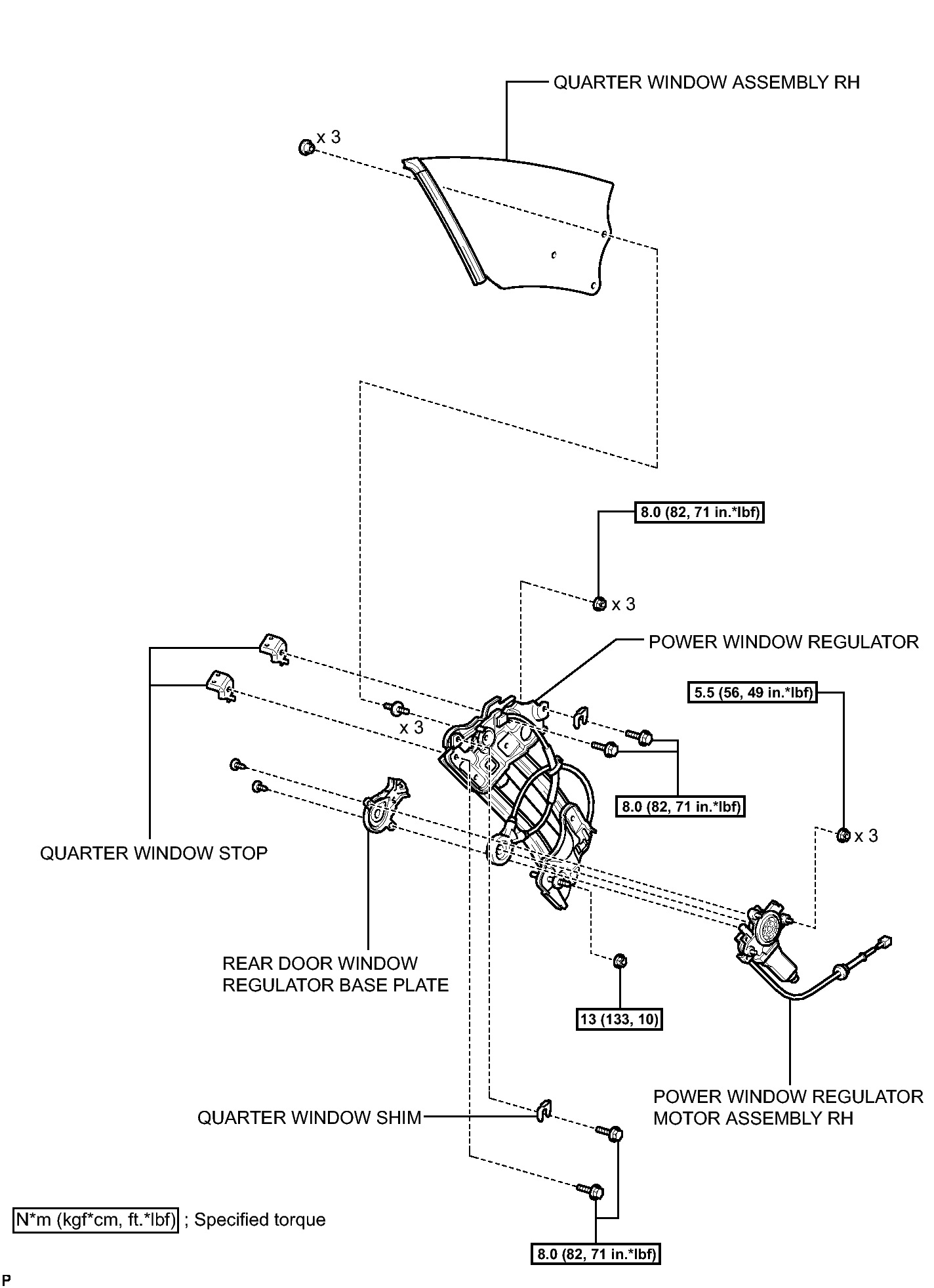

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (3 Of 3)
GTY142294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
