Ground Point: Notes

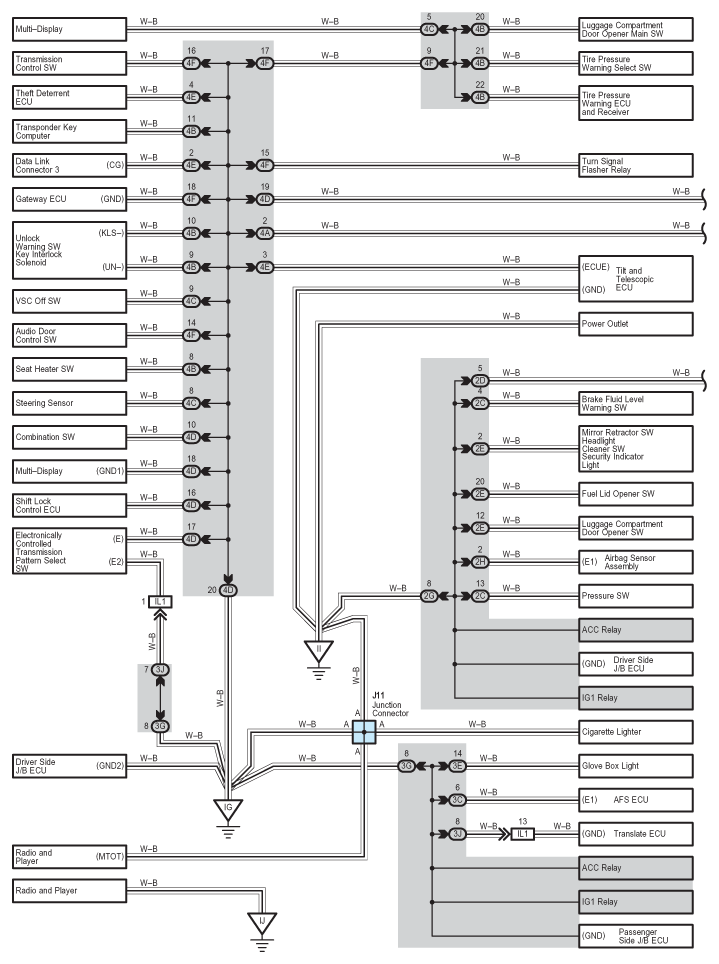

Fig 1: Ground Point - Wiring Diagram (1 Of 5)
G07606052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

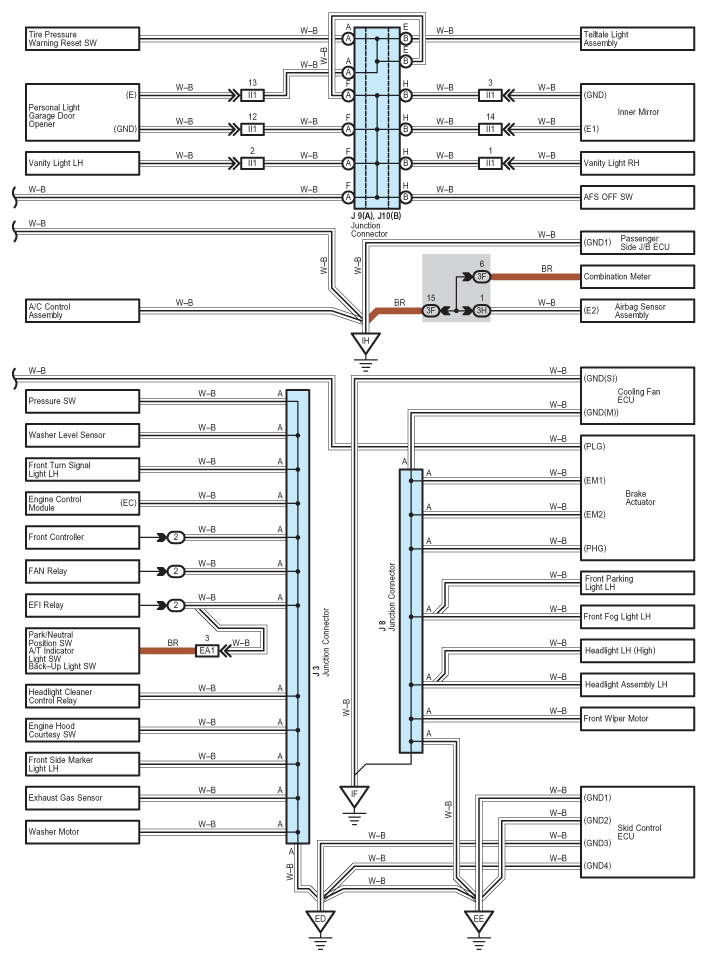

Fig 2: Ground Point - Wiring Diagram (2 Of 5)
G07606053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

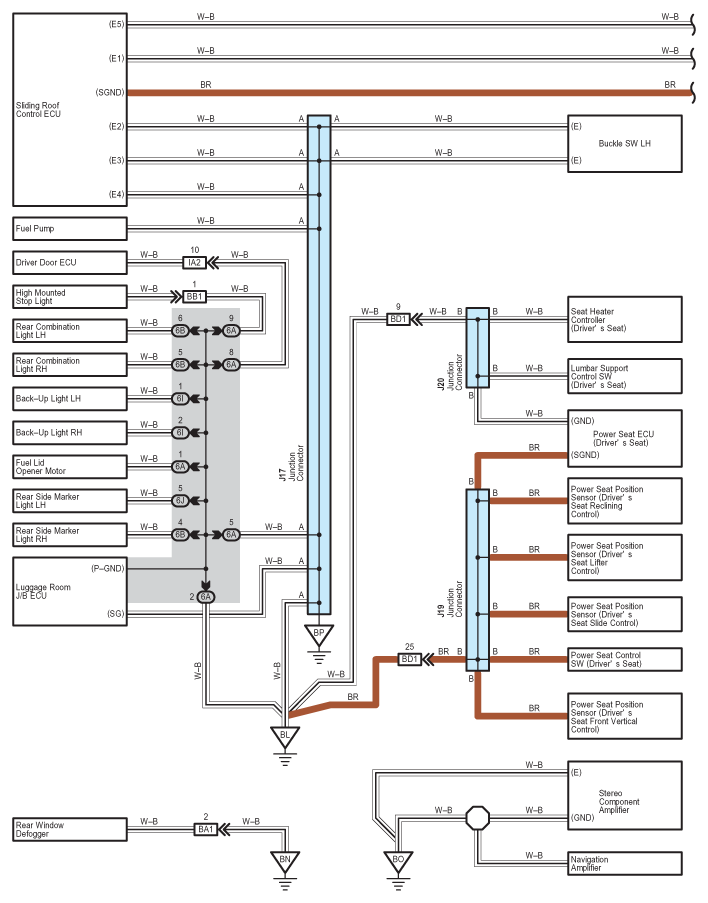

Fig 3: Ground Point - Wiring Diagram (3 Of 5)
G07606054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

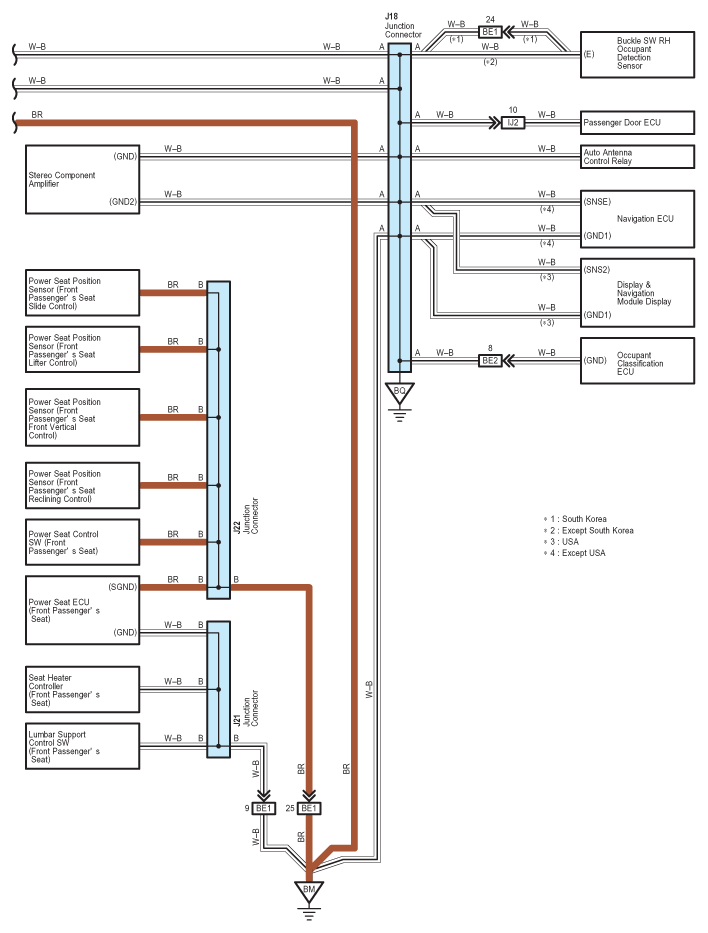

Fig 4: Ground Point - Wiring Diagram (4 Of 5)
G07606055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

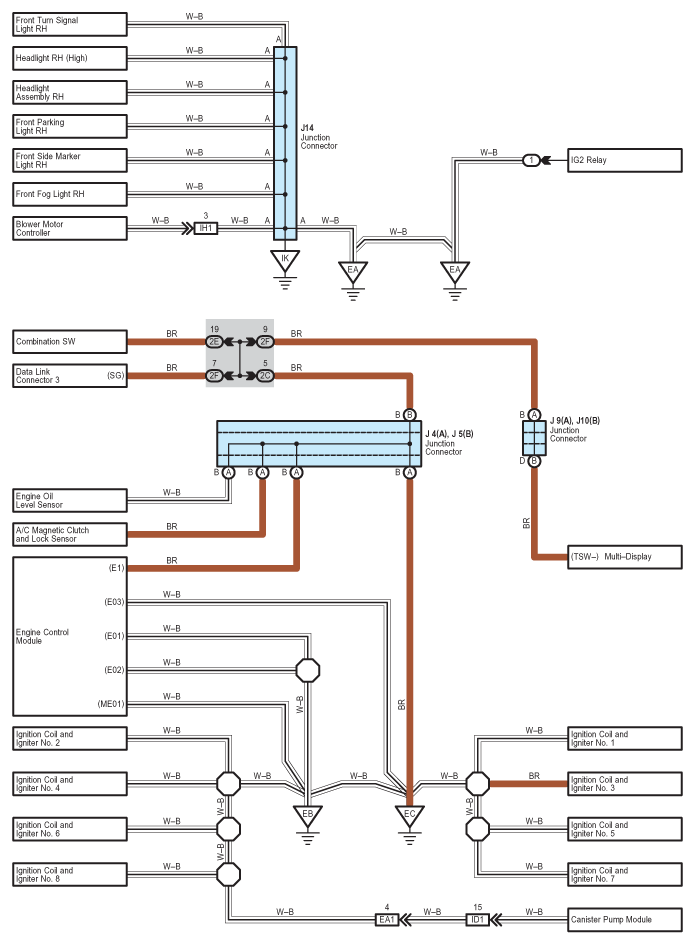

Fig 5: Ground Point - Wiring Diagram (5 Of 5)
G07606056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
