DTC P2118: Throttle Actuator Control Motor Current Range / Performance: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Data List / +BM Voltage.
5. Read the value displayed on the Techstream.

   Standard Voltage

   11 to 14 V

NG → See step   2

OK → See step   3

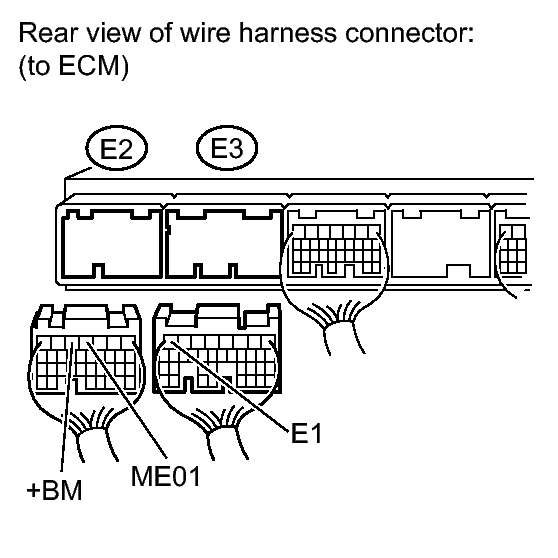

Fig 1: Identifying E2 And E3 Terminal Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the ECM connectors.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E2-5 (+BM) - Body ground	Always	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E2-4 (ME01) - Body ground	Always	Below 1 Ω
   E3-7 (E1) - Body ground

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
