Main Relay (Computer/Fuel System): Locations

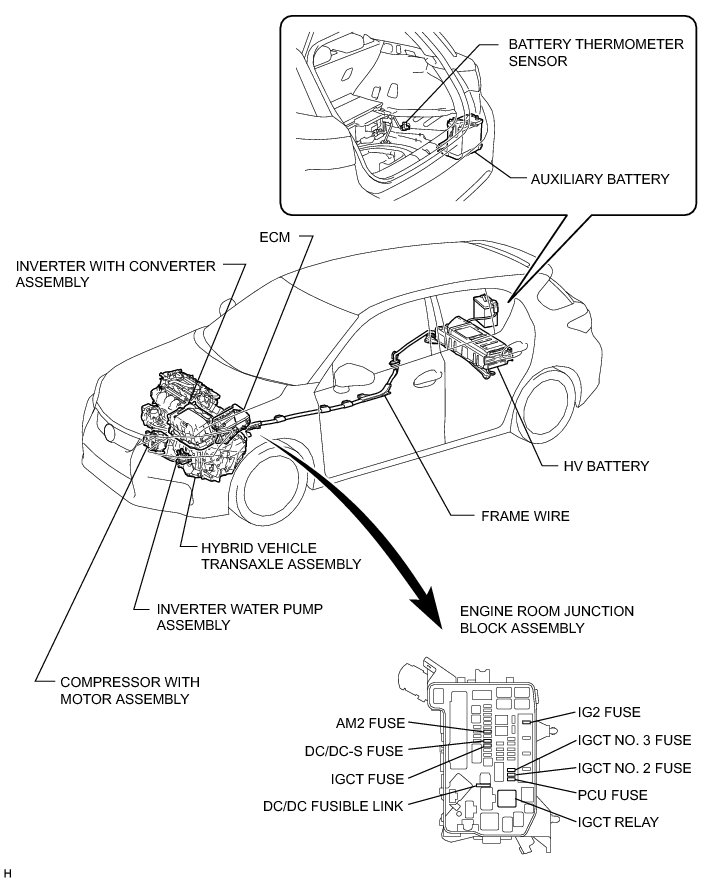

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: PARTS LOCATION

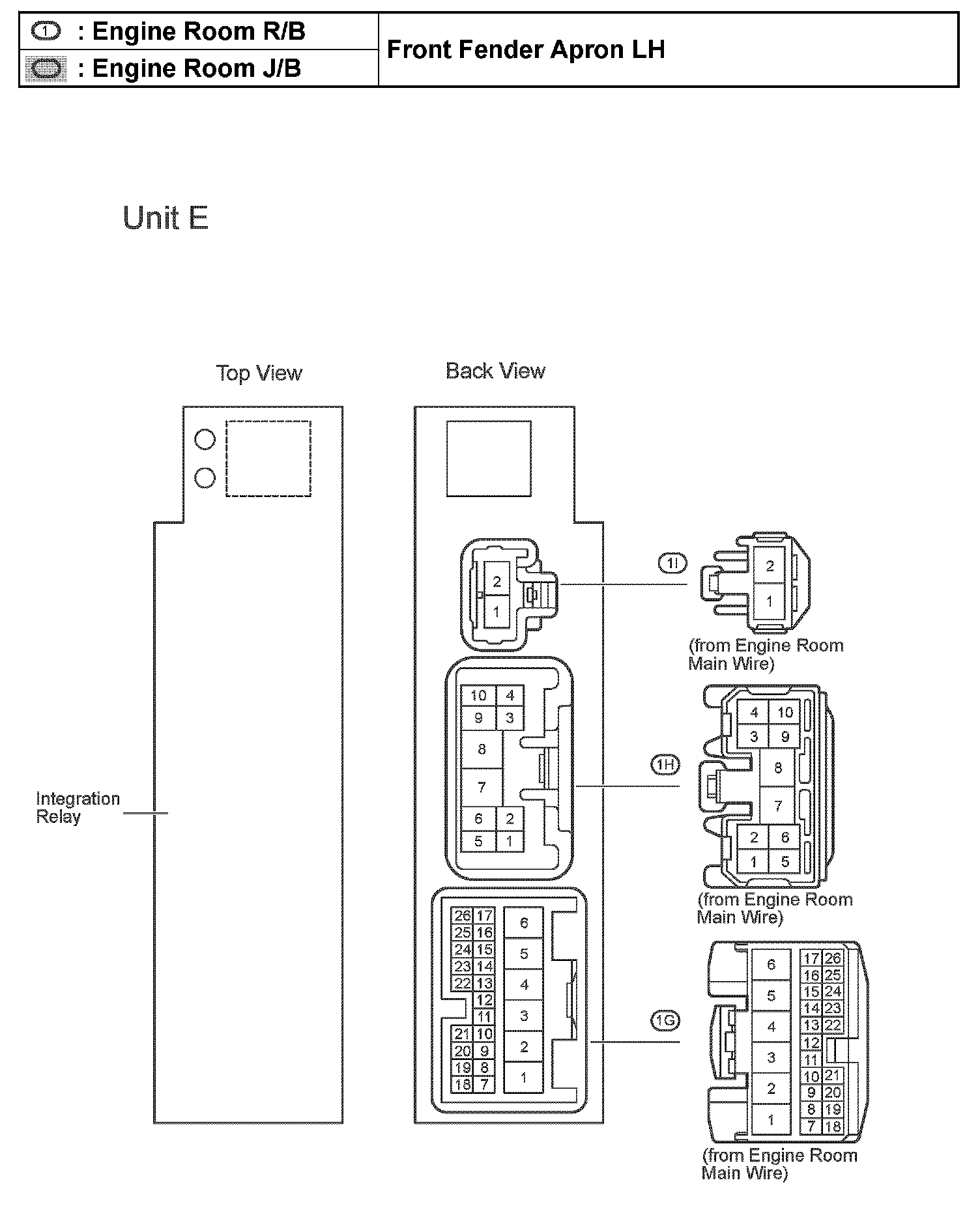

Engine Room R/B, Engine Room J/B - Front Fender Apron LH:

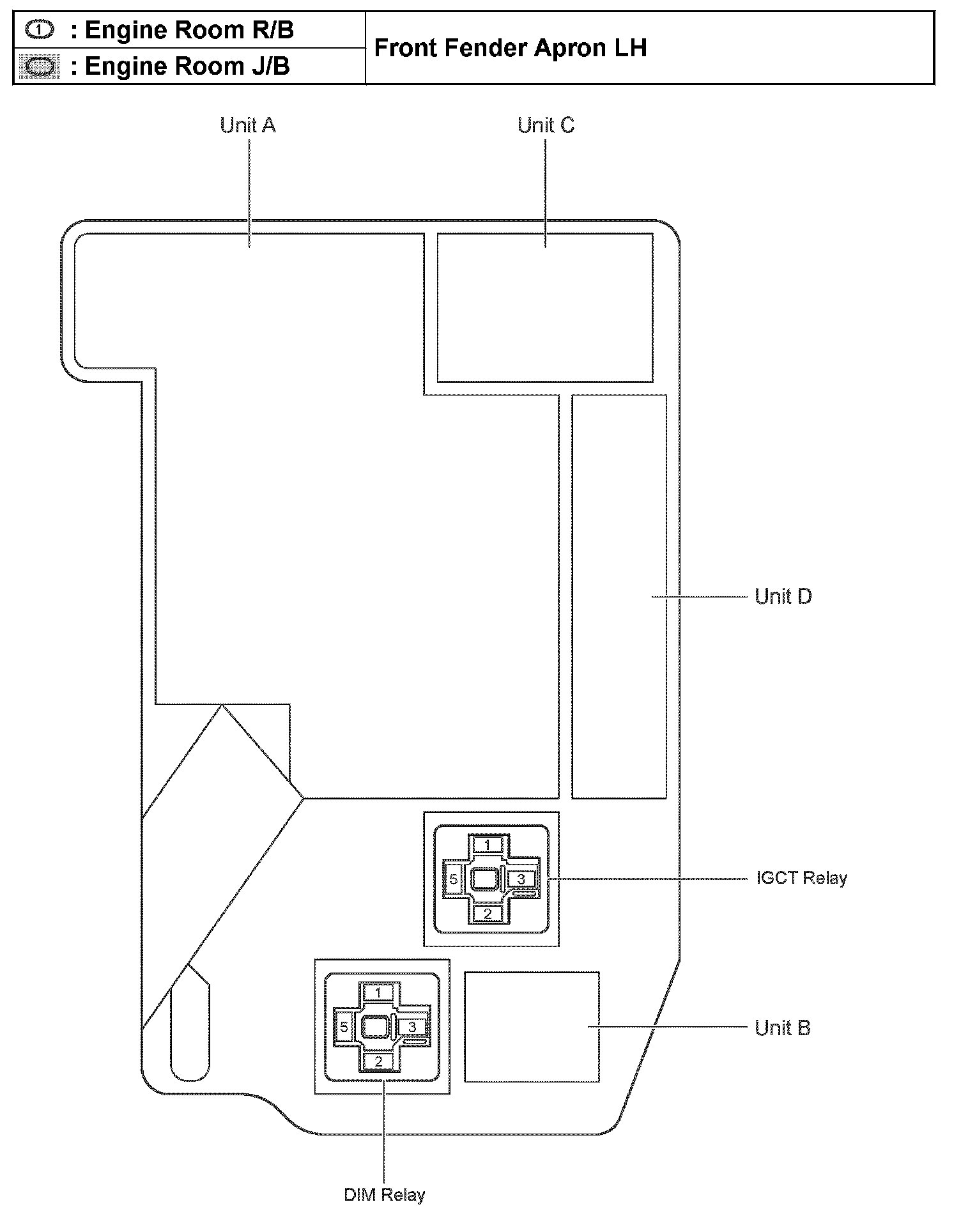

Engine Room R/B, Engine Room J/B - Front Fender Apron LH:
