On-Vehicle Inspection

POWER DISTRIBUTION: INTEGRATION RELAY: ON-VEHICLE INSPECTION

1. INSPECT NO. 1 INTEGRATION RELAY

HINT
* This inspection is not for the No. 1 integration relay itself, but for the wire harness that is connected to the No. 1 integration relay. If the result is within the specified condition, the No. 1 integration relay may be malfunctioning.
* After the wire harness has been repaired, disconnect all connectors that are connected to the No. 1 integration relay, and turn the power switch on (READY) to clear the DTCs.

(a) Diagnosis Terminal

(1) Measure the voltage according to the value(s) in the table below.

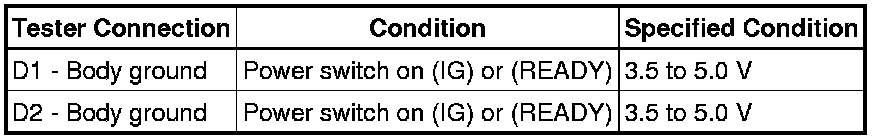

Standard Voltage:





HINT
If the result is not as specified, one of the electrical load connected to the No. 1 integration relay may be malfunctioning.

Text in Illustration
