Camshaft Oil Control Valve: Removal: Removal

  1. REMOVE NO. 2 CYLINDER HEAD COVER  . Refer to REMOVAL - Step 20
  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
    1. Disconnect the camshaft timing oil control valve assembly connector.

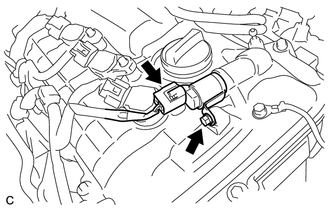

      Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly & Connector
      GTY328874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.

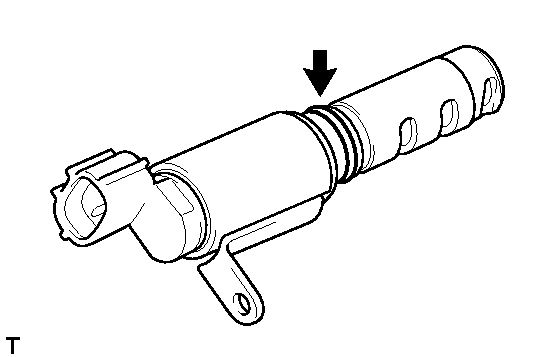

      Fig 2: Identifying Camshaft Timing Oil Control Valve O-Ring
      GTY162693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
