DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module: Procedure

  1. CHECK FUSE (PCU)
    1. Remove the PCU fuse from the engine room junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

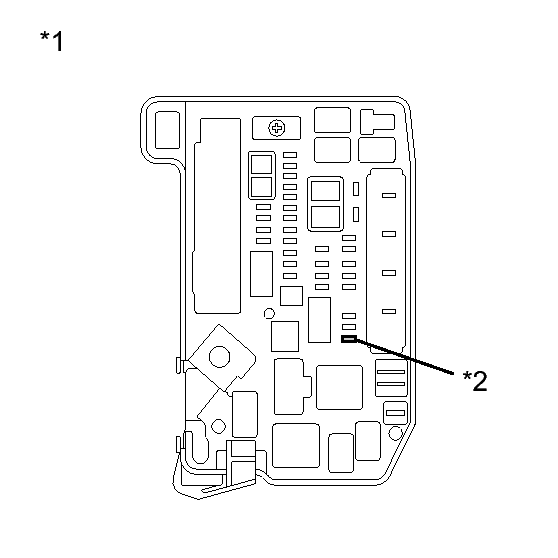

      Fig 1: Identifying Engine Room Junction Block Assembly
      GTY357598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      PCU fuse terminals Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room Junction Block Assembly
      *2 PCU Fuse
    3. Install the PCU fuse.

    NG → See step   18

    OK: Go to next step

  2. CLEAR DTC. Refer to  PROCEDURE - Step 4

    NEXT: Go to next step

  3. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check if DTCs are output.

      Result

      Result Proceed to
      DTC U0110-159, 656 or 657 is output. A
      DTC U0110-159, 656 and 657 are not output. B
    5. Turn the power switch off.

    B → See step   27

    A: Go to next step

  4. CHECK INVERTER WITH CONVERTER ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION). Refer to  PROCEDURE - Step 9

    B → REPLACE MALFUNCTIONING PARTS

    C → CONNECT SECURELY

    A: Go to next step

  5. CHECK INVERTER WITH CONVERTER ASSEMBLY (MOTOR CABLE CONNECTION CONDITION). Refer to  PROCEDURE - Step 10

    B → REPLACE MALFUNCTIONING PARTS

    C → CONNECT SECURELY

    A: Go to next step

  6. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MG1). Refer to  PROCEDURE - Step 11

    NG → See step   22

    OK: Go to next step

  7. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MG2). Refer to  PROCEDURE - Step 12

    NG → See step   24

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY POWER SOURCE CIRCUIT)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair service information because this may cause a malfunction.

    3. Disconnect connector A62 from the inverter with converter assembly.
    4. Measure the resistance according to the value(s) in the table below.

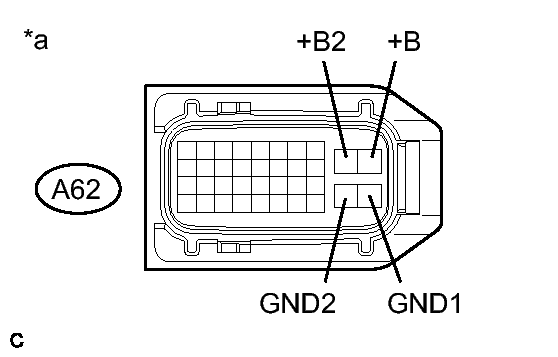

      Fig 2: Identifying Inverter With Converter Assembly
      GTY355902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A62-28 (GND1) - Body ground Power switch off Below 1 Ω
      A62-27 (GND2) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)
    5. Turn the power switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A62-10 (+B) - Body ground Power switch on (IG) 11 to 14 V
      A62-9 (+B2) - Body ground Power switch on (IG) 11 to 14 V
      NOTE:

      Turning the power switch on (IG) with the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    7. Turn the power switch off.
    8. Connect the inverter with converter assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK POWER MANAGEMENT CONTROL ECU (CHECK WAVEFORM)
    1. Connect an oscilloscope between the power management control ECU terminals specified in the following table.
    2. Turn the power switch on (IG).
    3. Measure the waveform.

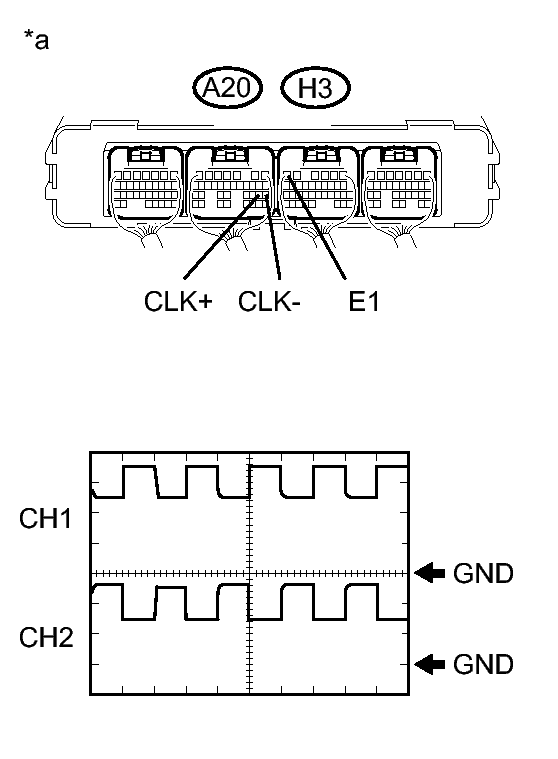

      Fig 3: Identifying Power Management Control ECU (Check Waveform)
      GTY354303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Contents
      Tester Connection CH1: A20-21 (CLK+) - H3-6 (E1)
      CH2: A20-20 (CLK-) - H3-6 (E1)
      Equipment Setting 1V/DIV., 1μs/DIV.
      Condition Power switch on (IG)

      Result

      Result Proceed to
      The waveform appears as shown in the illustration. A
      The waveform differs from the one shown in the illustration. B
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Power Management Control ECU)

      HINT:

      • Inspect with the connector connected.
      • If pulses are generated, the shape of the waveform can be assumed to be normal.
      • The shape of the waveform may vary according to communication conditions.
    4. Turn the power switch off.

    B → See step   12

    A: Go to next step

  10. CHECK POWER MANAGEMENT CONTROL ECU (CHECK WAVEFORM)
    1. Connect an oscilloscope between the power management control ECU terminals specified in the following table.
    2. Turn the power switch on (IG).
    3. Measure the waveform.

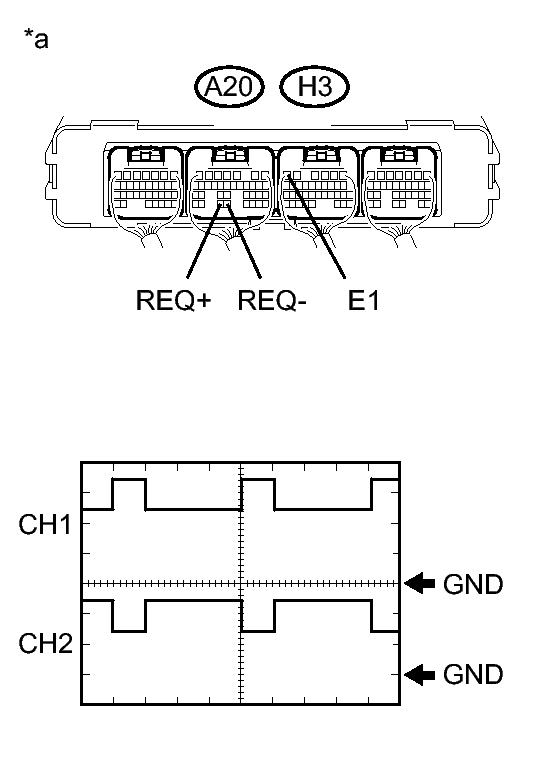

      Fig 4: Identifying Power Management Control ECU (Check Waveform)
      GTY351590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Contents
      Tester Connection CH1: A20-33 (REQ+) - H3-6 (E1)
      CH2: A20-32 (REQ-) - H3-6 (E1)
      Equipment Setting 1V/DIV., 1ms/DIV.
      Condition Power switch on (IG)

      Result

      Result Proceed to
      The waveform appears as shown in the illustration. A
      The waveform differs from the one shown in the illustration. B
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Power Management Control ECU)

      HINT:

      • Inspect with the connector connected.
      • If pulses are generated, the shape of the waveform can be assumed to be normal.
      • The shape of the waveform may vary according to communication conditions.
    4. Turn the power switch off.

    B → See step   14

    A: Go to next step

  11. CHECK POWER MANAGEMENT CONTROL ECU (CHECK WAVEFORM)
    1. Connect an oscilloscope between the power management control ECU terminals specified in the following table.
    2. Turn the power switch on (IG).
    3. Measure the waveform.

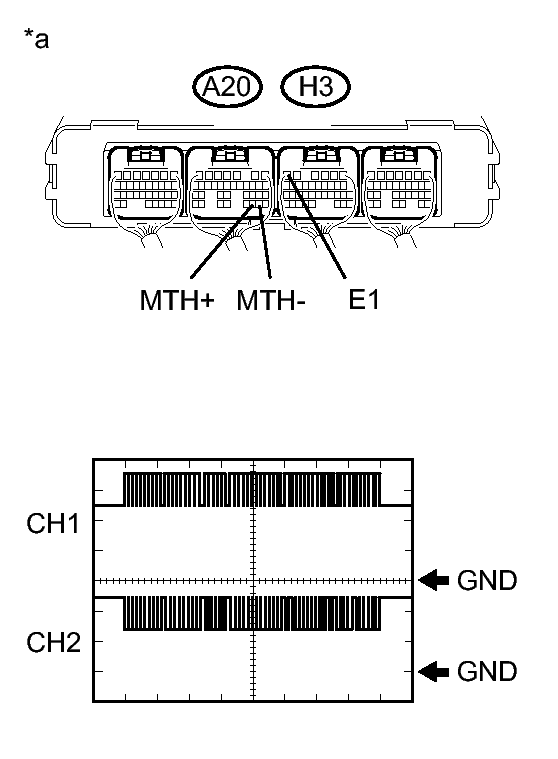

      Fig 5: Identifying Check Power Management Control ECU (Check Waveform)
      GTY357527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Contents
      Tester Connection CH1: A20-30 (MTH+) - H3-6 (E1)
      CH2: A20-29 (MTH-) - H3-6 (E1)
      Equipment Setting 1V/DIV., 200μs/DIV.
      Condition Power switch on (IG)

      Result

      Result Proceed to
      The waveform appears as shown in the illustration. A
      The waveform differs from the one shown in the illustration. B
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Power Management Control ECU)

      HINT:

      • Inspect with the connector connected.
      • If pulses are generated, the shape of the waveform can be assumed to be normal.
      • The shape of the waveform may vary according to communication conditions.
    4. Turn the power switch off.

    B → See step   16

    A → See step   26

  12. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - INVERTER WITH CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair service information because this may cause a malfunction.

    2. Disconnect connector A20 from the power management control ECU.
    3. Disconnect connector A62 from the inverter with converter assembly.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

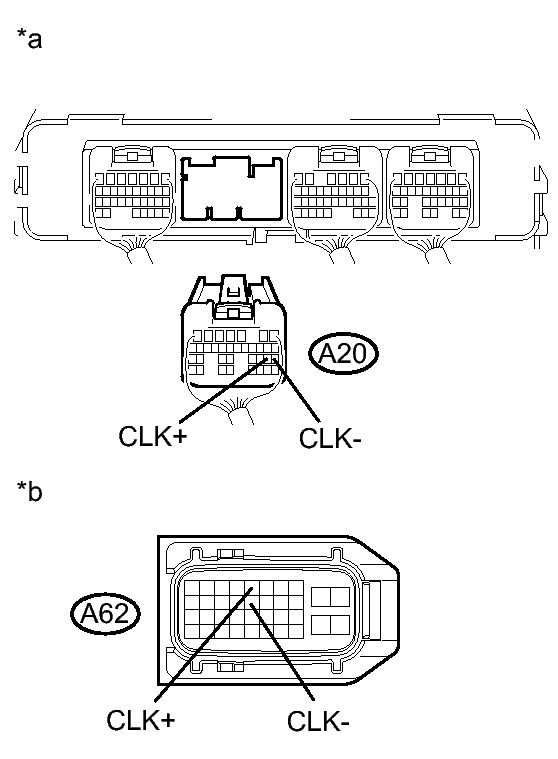

      Fig 6: Identifying A20 And A62 Connector Terminals
      GTY355572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A20-21 (CLK+) - Body ground Power switch on (IG) Below 1 V
      A20-20 (CLK-) - Body ground Power switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      *b Front view of wire harness connector
      (to Inverter with Converter Assembly)
      NOTE:

      Turning the power switch on (IG) with the power management control ECU connector and the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    6. Turn the power switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      A20-21 (CLK+) - A62-5 (CLK+) Power switch off Below 1 Ω
      A20-20 (CLK-) - A62-15 (CLK-) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      A20-21 (CLK+) or A62-5 (CLK+) - Body ground and other terminals Power switch off 10 kΩ or higher
      A20-20 (CLK-) or A62-15 (CLK-) - Body ground and other terminals Power switch off 10 kΩ or higher
    8. Connect the inverter with converter assembly connector.
    9. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  13. CHECK INVERTER WITH CONVERTER ASSEMBLY
    1. Disconnect connector A20 from the power management control ECU.
    2. Measure the resistance according to the value(s) in the table below.

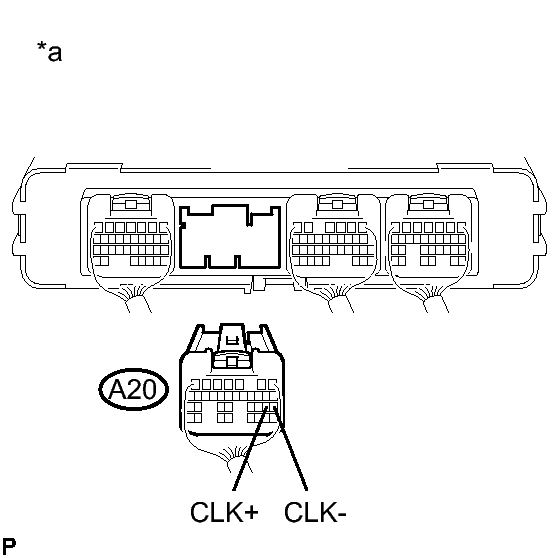

      Fig 7: Identifying A20 Connector And Power Management Control ECU
      GTY351984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A20-21 (CLK+) - A20-20 (CLK-) Power switch off 80 to 170 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    3. Connect the power management control ECU connector.

    NG → See step   28

    OK → See step   26

  14. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - INVERTER WITH CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair service information because this may cause a malfunction.

    2. Disconnect connector A20 from the power management control ECU.
    3. Disconnect connector A62 from the inverter with converter assembly.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

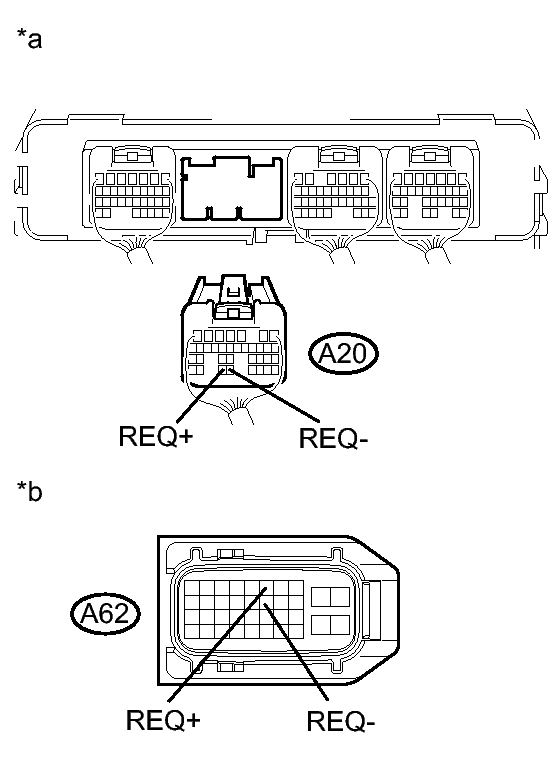

      Fig 8: Identifying A20 And A62 Connector Terminals
      GTY355615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A20-33 (REQ+) - Body ground Power switch on (IG) Below 1 V
      A20-32 (REQ-) - Body ground Power switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      *b Front view of wire harness connector
      (to Inverter with Converter Assembly)
      NOTE:

      Turning the power switch on (IG) with the power management control ECU connector and the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    6. Turn the power switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      A20-33 (REQ+) - A62-6 (REQ+) Power switch off Below 1 Ω
      A20-32 (REQ-) - A62-16 (REQ-) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      A20-33 (REQ+) or A62-6 (REQ+) - Body ground and other terminals Power switch off 10 kΩ or higher
      A20-32 (REQ-) or A62-16 (REQ-) - Body ground and other terminals Power switch off 10 kΩ or higher
    8. Connect the inverter with converter assembly connector.
    9. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  15. CHECK INVERTER WITH CONVERTER ASSEMBLY
    1. Disconnect connector A20 from the power management control ECU.
    2. Measure the resistance according to the value(s) in the table below.

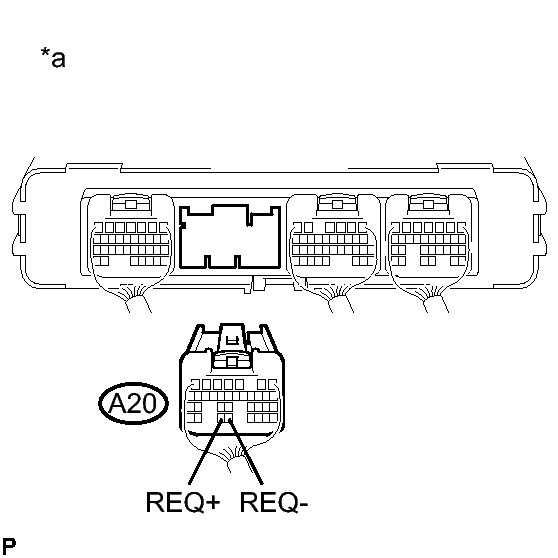

      Fig 9: Identifying A20 And Power Management Control ECU
      GTY351985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A20-33 (REQ+) - A20-32 (REQ-) Power switch off 80 to 170 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    3. Connect the power management control ECU connector.

    NG → See step   28

    OK → See step   26

  16. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - INVERTER WITH CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair service information because this may cause a malfunction.

    2. Disconnect connector A20 from the power management control ECU.
    3. Disconnect connector A62 from the inverter with converter assembly.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

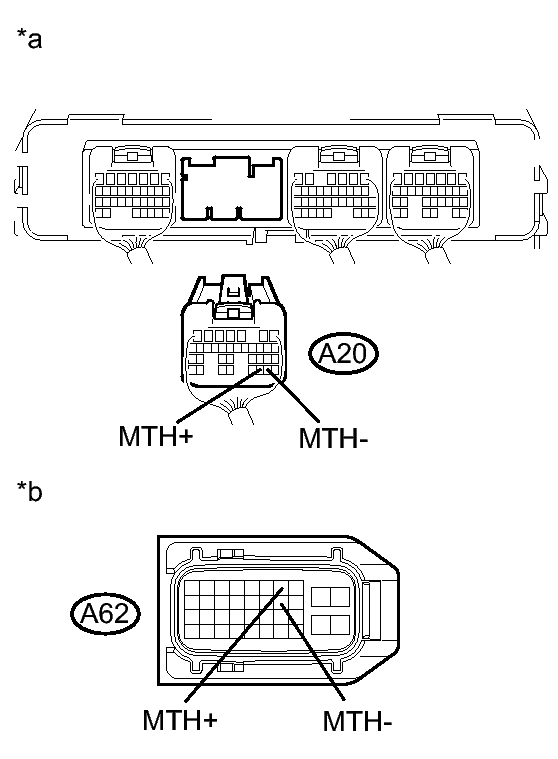

      Fig 10: Identifying A20 And A62 Connector Terminals
      GTY355612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A20-30 (MTH+) - Body ground Power switch on (IG) Below 1 V
      A20-29 (MTH-) - Body ground Power switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      *b Front view of wire harness connector
      (to Inverter with Converter Assembly)
      NOTE:

      Turning the power switch on (IG) with the power management control ECU connector and the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    6. Turn the power switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      A20-30 (MTH+) - A62-7 (MTH+) Power switch off Below 1 Ω
      A20-29 (MTH-) - A62-17 (MTH-) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      A20-30 (MTH+) or A62-7 (MTH+) - Body ground and other terminals Power switch off 10 kΩ or higher
      A20-29 (MTH-) or A62-17 (MTH-) - Body ground and other terminals Power switch off 10 kΩ or higher
    8. Connect the inverter with converter assembly connector.
    9. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  17. CHECK POWER MANAGEMENT CONTROL ECU
    1. Disconnect connector A62 from the inverter with converter assembly.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 11: Identifying A62 Connector And Inverter With Converter Assembly
      GTY351265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A20-30 (MTH+) - A20-29 (MTH-) Power switch off 80 to 170 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Power Management Control ECU)
    3. Connect the inverter with converter assembly connector.

    NG → See step   26

    OK → See step   28

  18. REPLACE FUSE (PCU)
    1. Replace the PCU fuse.
      Fig 12: Identifying Engine Room Junction Block Assembly
      GTY357598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Junction Block Assembly
      *2 PCU Fuse
    2. Turn the power switch on (READY).
    3. Check if there is an open circuit in the PCU fuse in engine room junction block assembly.

      OK

      There is no open circuit in the PCU fuse.

      HINT:

      If the fuse does not become open again after turning the power switch on (READY), it can be assumed that the previous fuse failed due to age.

    4. Turn the power switch off.

    NG → See step   19

    OK → COMPLETED

  19. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - PCU FUSE)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair service information because this may cause a malfunction.

    2. Remove the PCU fuse from the engine room junction block assembly.
      Fig 13: Identifying Engine Room Junction Block Assembly
      GTY357598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Junction Block Assembly
      *2 PCU Fuse
    3. Disconnect connector A62 from the inverter with converter assembly.
    4. Measure the resistance according to the value(s) in the table below.

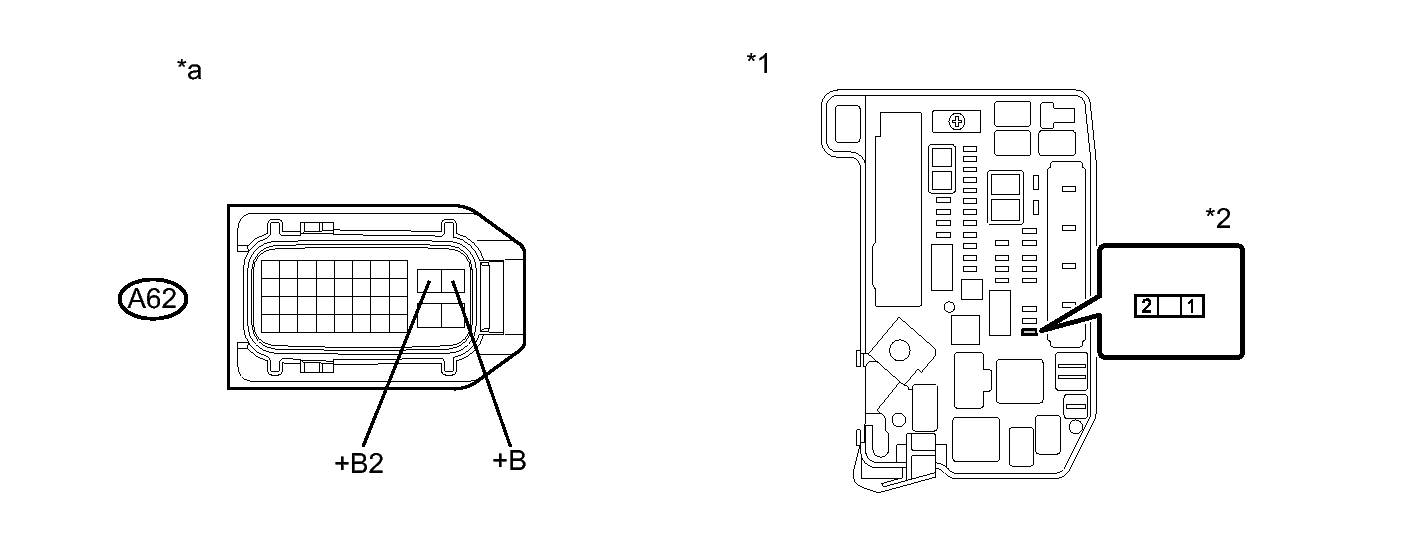

      Fig 14: Identifying A62 Connector Terminal
      GTY347784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Junction Block Assembly *2 PCU Fuse
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)      		 - -

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      A62-10 (+B) - 2 (PCU fuse terminal) Power switch off Below 1 Ω
      A62-9 (+B2) - 2 (PCU fuse terminal) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      A62-10 (+B), A62-9 (+B2) or 2 (PCU fuse terminal) - Body ground and other terminals Power switch off 10 kΩ or higher
    5. Connect the inverter with converter assembly connector.
    6. Install the PCU fuse.

    NG → See step   21

    OK: Go to next step

  20. REPLACE INVERTER WITH CONVERTER ASSEMBLY
    1. Replace the inverter with converter assembly. Refer COMPONENTS .

    NEXT → REPLACE FUSE (PCU)

  21. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → REPLACE FUSE (PCU)

  22. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (GENERATOR CABLE CONNECTION CONDITION). Refer to  PROCEDURE - Step 26

    B → REPLACE MALFUNCTIONING PARTS

    C → CONNECT SECURELY

    A: Go to next step

  23. CHECK GENERATOR CABLE. Refer to  PROCEDURE - Step 27

    NG → See step   29

    OK → See step   31

  24. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR CABLE CONNECTION CONDITION). Refer to  PROCEDURE - Step 28

    B → REPLACE MALFUNCTIONING PARTS

    C → CONNECT SECURELY

    A: Go to next step

  25. CHECK MOTOR CABLE. Refer to  PROCEDURE - Step 29

    NG → See step   30

    OK → See step   31

  26. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  COMPONENTS
  27. CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS
  28. REPLACE INVERTER WITH CONVERTER ASSEMBLY. Refer to  COMPONENTS
  29. REPLACE GENERATOR CABLE. Refer to  COMPONENTS
  30. REPLACE MOTOR CABLE. Refer to  COMPONENTS
  31. REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY. Refer to  COMPONENTS
scientia non olet · About LEMON Manuals
