DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module: Wiring Diagram

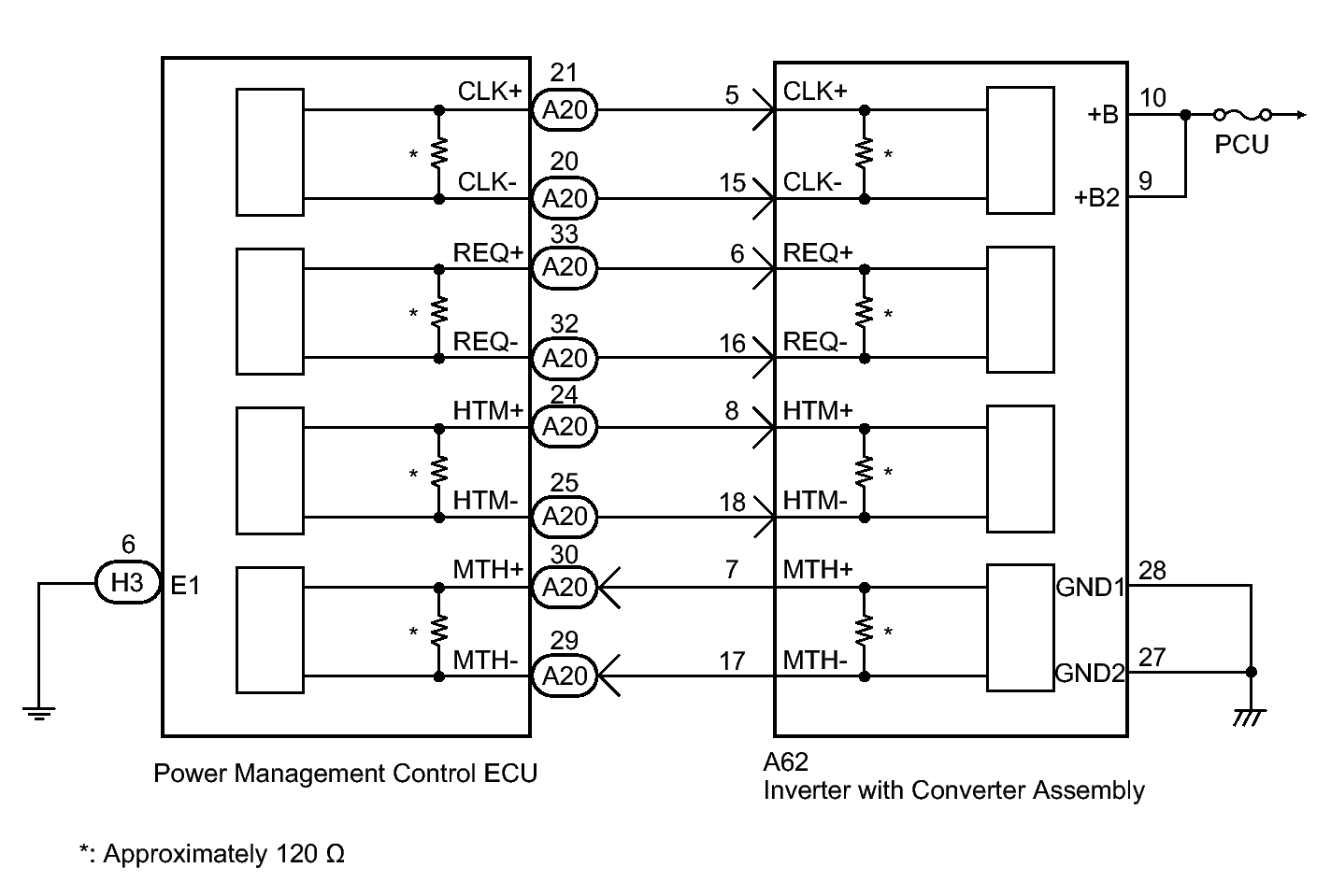

Fig 1: Identifying Inverter With Converter Assembly Wiring Diagram
GTY357388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
