Pattern Select Switch Sport Mode Circuit: Wiring Diagram

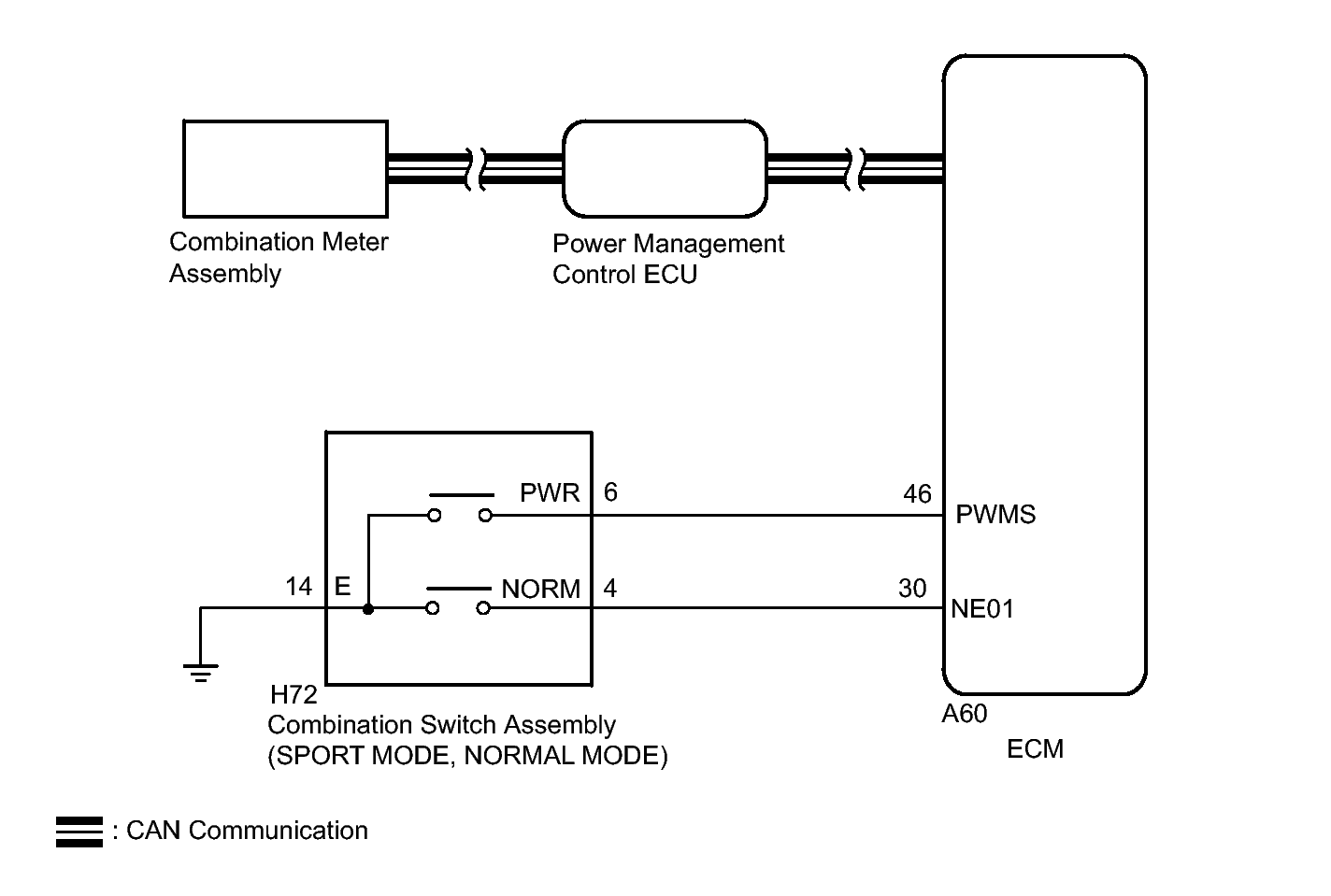

Fig 1: Identifying Combination Switch Assembly Wiring Diagram
GTY350574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
