Installation

ENGINE IMMOBILIZER: ID CODE BOX: INSTALLATION

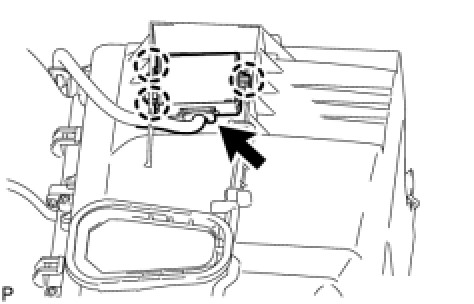

1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

(a) Connect the connector.





(b) Engage the 3 claws and install the ID code box (immobilizer code ECU).

NOTICE:
Be careful when installing the ID code box (immobilizer code ECU). If the ID code box (immobilizer code ECU) is dropped, replace it with a new one.

2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

HINT
Refer to the procedure for Install Air Conditioner Unit Assembly Installation.

3. REGISTER ECU COMMUNICATION ID

NOTICE:
When replacing the ID code box (immobilizer code ECU), perform initialization Registration.

4. REGISTER KEY

NOTICE:
When replacing the ID code box (immobilizer code ECU), perform initialization Registration.
