ECU Power Source Circuit: Procedure

1. Disconnect the power window ECU connector.

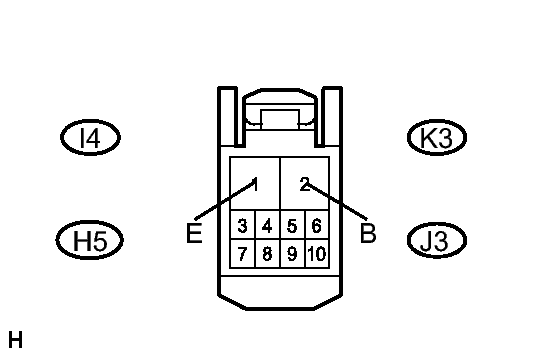

   Fig 1: Checking Wire Harness (Power Window ECU - Battery And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   2 (B) - Body ground	Engine switch on (IG)	10 to 14 V

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE FUSE, HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
