Front Passenger Side Power Window Switch Circuit: Procedure

1. Disconnect the H6 connector.

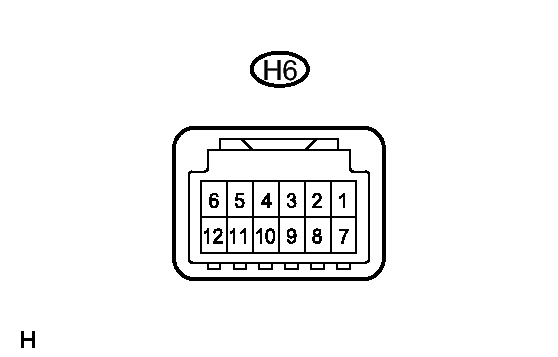

   Fig 1: Identifying H6 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   2 (U) - 4 (A) - 5 (E)	Auto UP	Below 1 Ω
   2 (U) - 5 (E)	Manual UP	Below 1 Ω
   5 (E) - 10 (D)	Manual DOWN	Below 1 Ω
   4 (A) - 10 (D) - 5 (E)	Auto DOWN	Below 1 Ω

NG → REPLACE POWER WINDOW REGULATOR SWITCH

OK: Go to next step

1. Disconnect the H5 and H6 connectors.

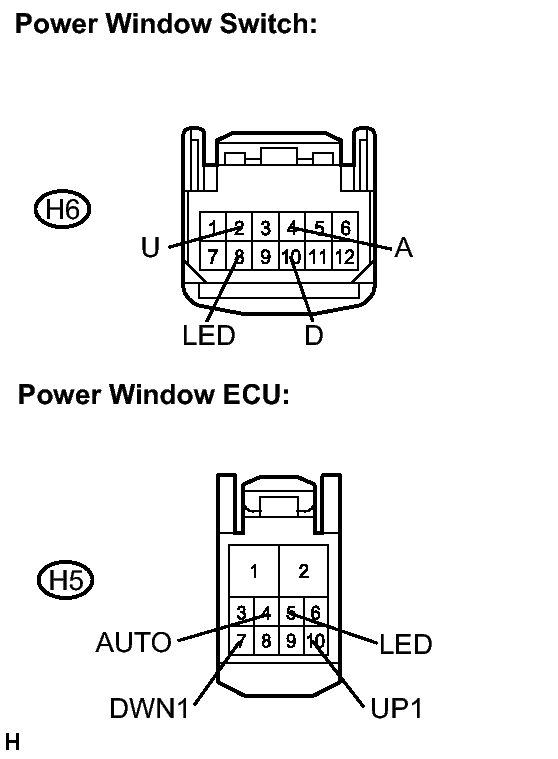

   Fig 2: Checking Wire Harness (Power Window Regulator Switch - Power Window ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   H5-4 (AUTO) - H6-4 (A)	Always	Below 1 Ω
   H5-5 (LED) - H6-8 (LED)	Always	Below 1 Ω
   H5-7 (DWN1) - H6-10 (D)	Always	Below 1 Ω
   H5-10 (UP1) - H6-2 (U)	Always	Below 1 Ω
   H5-4 (AUTO) - Body ground	Always	10 kΩ or higher
   H5-5 (LED) - Body ground	Always	10 kΩ or higher
   H5-7 (DWN1) - Body ground	Always	10 kΩ or higher
   H5-10 (UP1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → END
