Power Window Control System (Diagnostic Codes & Circuit Tests)
>>
Power Window Control System
>>
Circuit Tests
>>
Power Window Master Switch Power Source Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window Master Switch Power Source Circuit: Wiring Diagram

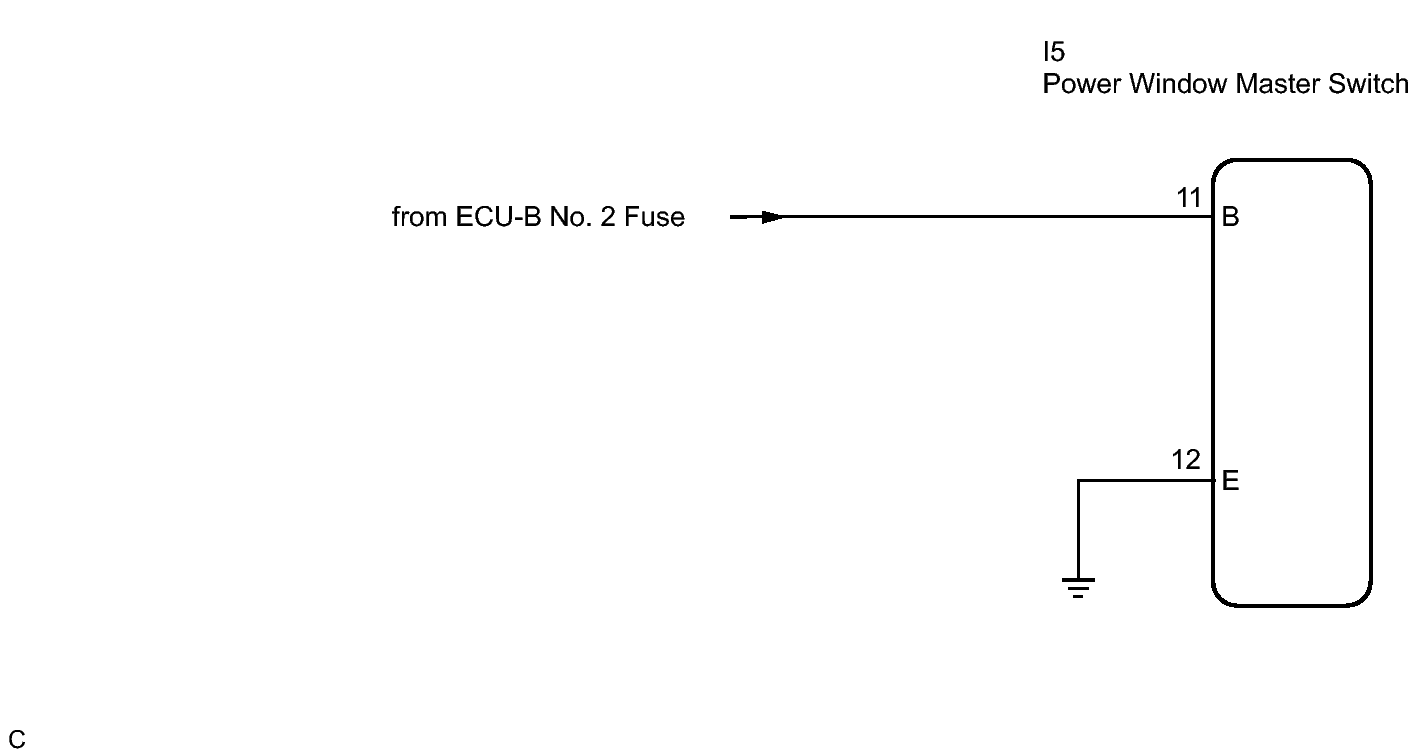

Fig 1: Power Window Master Switch Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
