Rear Power Window Switch RH Circuit: Procedure

1. Disconnect the J4 connector.
   Fig 1: Identifying J4 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   2 (U) - 4 (A) - 5 (E)	Auto UP	Below 1 Ω
   2 (U) - 5 (E)	Manual UP	Below 1 Ω
   5 (E) - 10 (D)	Manual DOWN	Below 1 Ω
   4 (A) - 10 (D) - 5 (E)	Auto DOWN	Below 1 Ω

NG → REPLACE POWER WINDOW REGULATOR SWITCH

OK: Go to next step

1. Disconnect the J3 and J4 connectors.

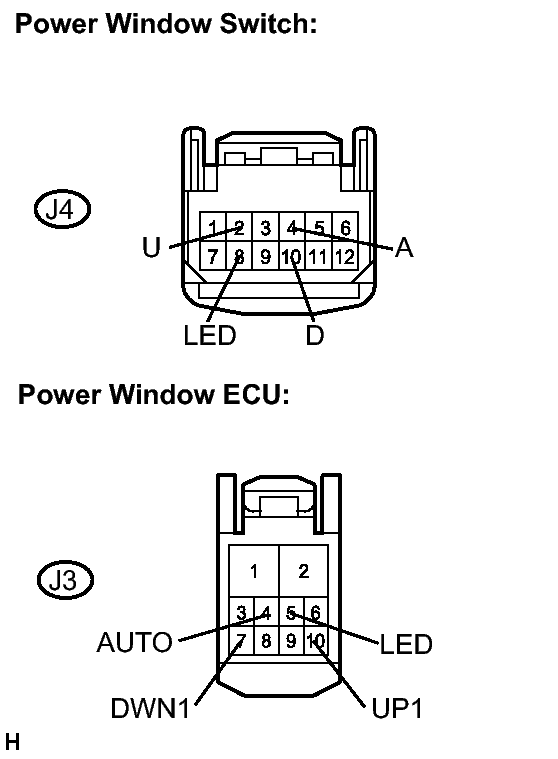

   Fig 2: Checking Wire Harness (Power Window Regulator Switch - Power Window ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   J3-4 (AUTO) - J4-4 (A)	Always	Below 1 Ω
   J3-5 (LED) - J4-8 (LED)	Always	Below 1 Ω
   J3-7 (DWN1) - J4-10 (D)	Always	Below 1 Ω
   J3-10 (UP1) - J4-2 (U)	Always	Below 1 Ω
   J3-4 (AUTO) - Body ground	Always	10 kΩ or higher
   J3-5 (LED) - Body ground	Always	10 kΩ or higher
   J3-7 (DWN1) - Body ground	Always	10 kΩ or higher
   J3-10 (UP1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → END
