DTC B2312: Power Window Switch Malfunction: Procedure
- CHECK WIRE HARNESS (LIN COMMUNICATION)

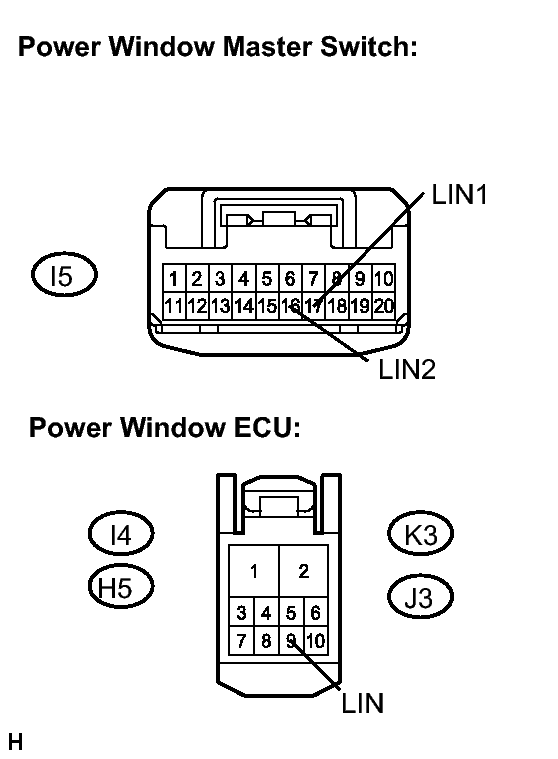

- Disconnect the power window regulator master switch and power window ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition I5-16 (LIN2) - I4-9 (LIN) Always Below 1 Ω I5-17 (LIN1) - H5-9 (LIN) Always Below 1 Ω I5-17 (LIN1) - K3-9 (LIN) Always Below 1 Ω I5-17 (LIN1) - J3-9 (LIN) Always Below 1 Ω I5-16 (LIN2) - Body ground Always 10 kΩ or higher I5-17 (LIN1) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT POWER WINDOW SWITCH
- Disconnect the power window switch connectors.

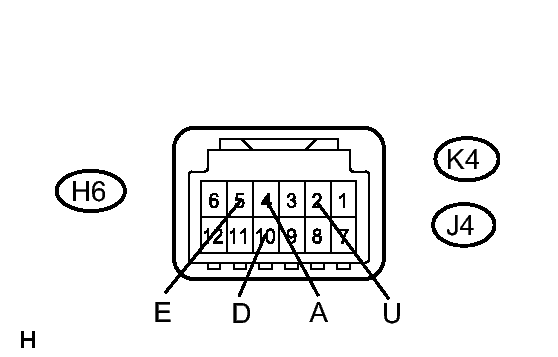

- Measure the resistance according to the value(s) in the table below.
Standard resistance
Front passenger and rear power window switch
Tester Connection Condition Specified Condition 2 (U) - 4 (A) - 5 (E) Auto UP Below 1 Ω 2 (U) - 5 (E) Manual UP Below 1 Ω 5 (E) - 10 (D) Manual DOWN Below 1 Ω 4 (A) - 10 (D) - 5 (E) Auto DOWN Below 1 Ω
NG → REPLACE POWER WINDOW SWITCH
OK: Go to next step
- CHECK WIRE HARNESS (POWER WINDOW (MASTER) SWITCH - POWER WINDOW ECU)

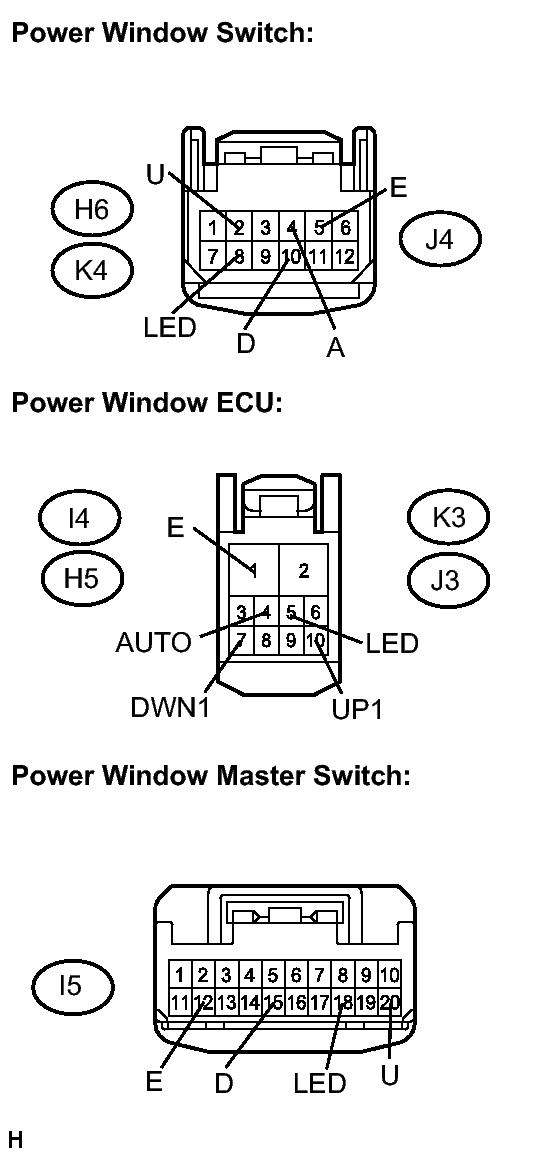

- Measure the resistance according to the value (s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Driver side
Front passenger side
Rear LH side
Rear RH side
Tester Connection Condition Specified Condition I5-12 (E) - I4-1 (E) Always Below 1 Ω I5-15 (D) - I4-7 (DWN1) Always Below 1 Ω I5-18 (LED) - I4-5 (LED) Always Below 1 Ω I5-20 (U) - I4-10 (UP1) Always Below 1 Ω I5-12 (E) - Body ground Always Below 1 Ω I5-15 (D) - Body ground Always 10 kΩ or higher I5-18 (LED) - Body ground Always 10 kΩ or higher I5-20 (U) - Body ground Always 10 kΩ or higher Tester Connection Condition Specified Condition H6-2 (U) - H5-10 (UP1) Always Below 1 Ω H6-4 (A) - H5-4 (AUTO) Always Below 1 Ω H6-5 (E) - Body ground Always Below 1 Ω H6-8 (LED) - H5-5 (LED) Always Below 1 Ω H6-10 (D) - H5-7 (DWN1) Always Below 1 Ω H5-1 (E) - Body ground Always Below 1 Ω H6-2 (U) - Body ground Always 10 kΩ or higher H6-4 (A) - Body ground Always 10 kΩ or higher H6-8 (LED) - Body ground Always 10 kΩ or higher H6-10 (D) - Body ground Always 10 kΩ or higher Tester Connection Condition Specified Condition K4-2 (U) - K3-10 (UP1) Always Below 1 Ω K4-4 (A) - K3-4 (AUTO) Always Below 1 Ω K4-5 (E) - Body ground Always Below 1 Ω K4-8 (LED) - K3-5 (LED) Always Below 1 Ω K4-10 (D) - K3-7 (DWN1) Always Below 1 Ω K3-1 (E) - Body ground Always Below 1 Ω K4-2 (U) - Body ground Always 10 kΩ or higher K4-4 (A) - Body ground Always 10 kΩ or higher K4-8 (LED) - Body ground Always 10 kΩ or higher K4-10 (D) - Body ground Always 10 kΩ or higher Tester Connection Condition Specified Condition J4-2 (U) - J3-10 (UP1) Always Below 1 Ω J4-4 (A) - J3-4 (AUTO) Always Below 1 Ω J4-5 (E) - Body ground Always Below 1 Ω J4-8 (LED) - J3-5 (LED) Always Below 1 Ω J4-10 (D) - J3-7 (DWN1) Always Below 1 Ω J3-1 (E) - Body ground Always Below 1 Ω J4-2 (U) - Body ground Always 10 kΩ or higher J4-4 (A) - Body ground Always 10 kΩ or higher J4-8 (LED) - Body ground Always 10 kΩ or higher J4-10 (D) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → END
- Measure the resistance according to the value (s) in the table below.
