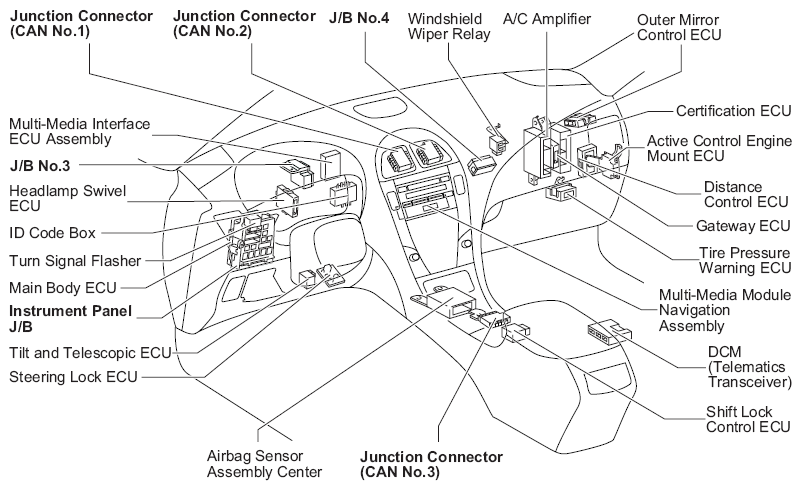

Instrument Panel Junction Block
WARNING: This page is about a different car, the 2010 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Lower Finish Panel (See Figure)

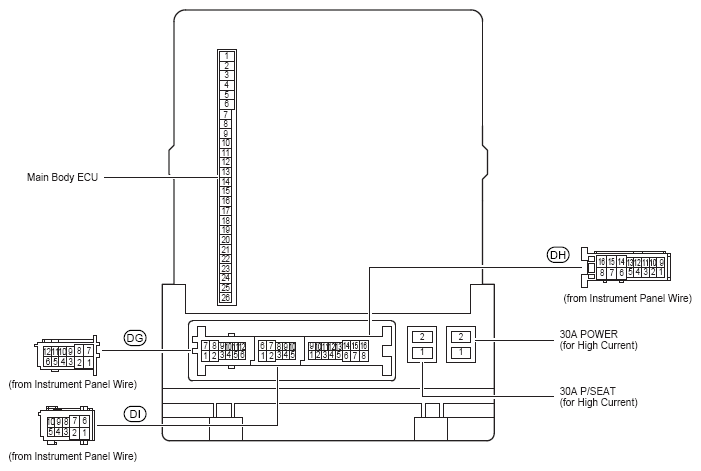

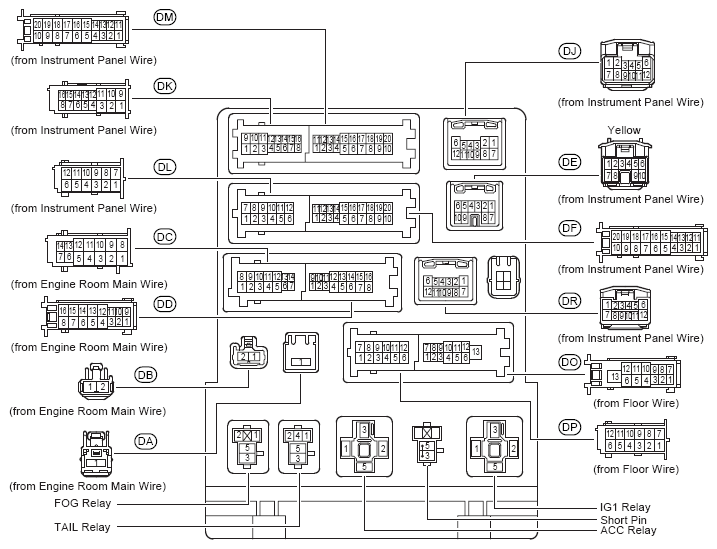

INSTRUMENT PANEL J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Tail Relay |
| Fog Relay |
| IG1 Relay |
| ACC Relay |
Lower Finish Panel (See Figure)

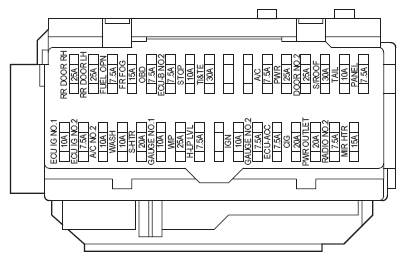

INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C | Air Conditioning |
| 7.5A | A/C | Rear Window Defogger and Mirror Heater |
| 7.5A | ECU IG NO. 2 | ABS, TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Pre-Collision System | ||
| Shift Lock | ||
| Stop Light | ||
| 7.5A | ECU-ACC Air | Conditioning |
| Automatic Light Control | ||
| Clock (w/ LEXUS Navigation System) | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Power Window | ||
| Remote Control Mirror | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| 7.5A | ECU-B NO. 2 | Power Window |
| 7.5A | FUEL OPN | Fuel Lid Opener |
| 7.5A | GAUGE NO. 2 | ABS, TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Air Conditioning | ||
| Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Charging | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 7.5A | GAUGE NO. 2 | Front Fog Light |
| Headlight | ||
| Illumination | ||
| LEXUS ENFORM or Safety Connect | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Rear Sunshade | ||
| Rear Window Defogger and Mirror Heater | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Wiper and Washer | ||
| 7.5A | H-LP LVL | Adaptive Front-Lighting System |
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | PANEL | Illumination |
| 7.5A | RADIO NO. 2 | Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| LEXUS ENFORM or Safety Connect | ||
| 10A | A/C NO. 2 | Air Conditioning |
| Rear Window Defogger and Mirror Heater | ||
| Seat Belt Warning | ||
| 10A | ECU IG NO. 1 | Air Conditioning |
| Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Automatic Glare-Resistant EC Mirror and Compass | ||
| Automatic Light Control | ||
| Climate Control Seat and Seat Heater (w/ Climate Control Seat) | ||
| Clock (w/ LEXUS Navigation System) | ||
| Cooling Fan | ||
| Door Lock Control | ||
| Electric Tension Reducer | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| 10A | ECU IG NO. 1 | LEXUS ENFORM or Safety Connect |
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/ Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/ Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Seat Heater (w/o Climate Control Seat) | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wiper and Washer | ||
| 10A | GAUGE NO. 1 | ABS, TRAC and VSC |
| Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Back-Up Light | ||
| Charging | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/ Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/ Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Rear Sunshade | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Stop Light | ||
| Taillight | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | IGN | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| 10A | IGN | Engine Control |
| Multiplex Communication System (CAN) | ||
| Seat Belt Warning | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Theft Deterrent | ||
| 10A | MAYDAY | LEXUS ENFORM or Safety Connect |
| 10A | STOP | ABS, TRAC and VSC |
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Shift Lock | ||
| Smart Access System with Push-Button Start | ||
| Stop Light | ||
| 10A | TAIL | Front Fog Light |
| Illumination | ||
| Taillight | ||
| 10A | WASH | Wiper and Washer |
| 15A | FR FOG | Front Fog Light |
| 15A | MIR HTR | Rear Window Defogger and Mirror Heater |
| 20A | CIG | Cigarette Lighter |
| 20A | PWR OUTLET | Power Outlet |
| 20A | S-HTR | Climate Control Seat and Seat Heater (w/ Climate Control Seat) |
| Seat Heater (w/o Climate Control Seat) | ||
| 25A | DOOR NO. 2 | Automatic Light Control |
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Power Window | ||
| Remote Control Mirror | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| 25A | PWR | Power Window |
| 25A | RR DOOR LH | Power Window |
| 25A | RR DOOR RH | Power Window |
| 25A | WIP | Wiper and Washer |
| 30A | P/SEAT | Power Seat (Driver's Seat w/ Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | POWER | Power Window |
| 30A | S/ROOF | Sliding Roof |
| 30A | TI&TE | Power Tilt and Power Telescopic |
