Installation

SEAT: SEAT MEMORY SWITCH: INSTALLATION

HINT
* Use the same procedures for the RH and LH side.
* A bolt without a torque specification is shown in the standard bolt chart. Standard Bolt - Specified Torque For Standard Bolts

1. INSTALL SEAT MEMORY SWITCH

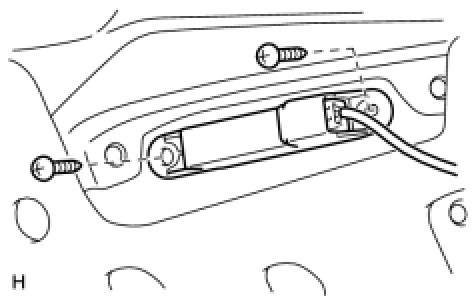

(a) Install the switch with the 2 screws.

(b) Connect the connector.

2. INSTALL FRONT DOOR TRIM COVER LH





(a) Connect the 2 cables to the inside handle.

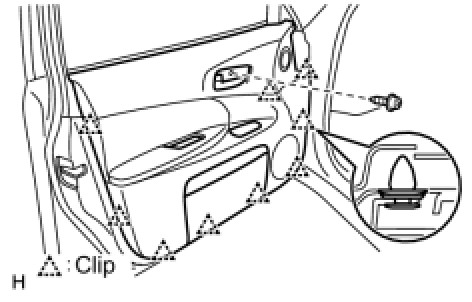

(b) Attach the 9 clips and install the trim cover.

(c) Attach the 2 claws to install the trim lower cover.





(d) Install the screw.

3. INSTALL DOOR INSIDE HANDLE BEZEL

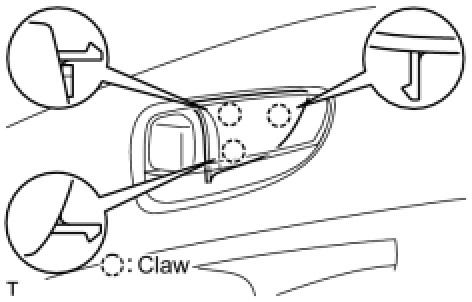

(a) Attach the 3 claws to install the bezel.
