Removal

BRAKE CONTROL: SKID CONTROL ECU (for 2GR-FSE): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

3. REMOVE SKID CONTROL ECU

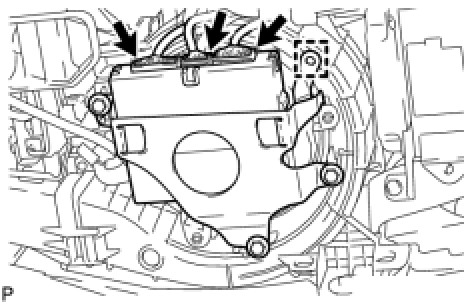

(a) Disconnect the wire harness clamp from the skid control ECU bracket.





(b) Disconnect the 3 connectors from the skid control ECU.

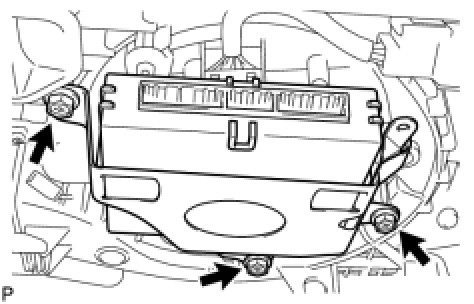

(c) Remove the 3 screws and skid control ECU.
