Installation

LIGHTING: HEADLIGHT LEVELING ECU: INSTALLATION

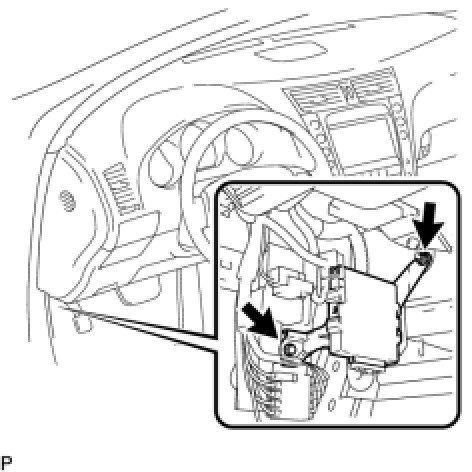

1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY





(a) Connect the connector.

(b) Install the headlight leveling ECU and nut, bolt.

2. INSTALL FRONT DOOR SCUFF PLATE Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION

(a) Perform initialization procedure Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. INSPECT SRS WARNING LIGHT

(a) Inspect SRS warning light Service Precautions.

6. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT

(a) Vehicle preparation for headlight aim adjustment Adjustments.

7. PREPARATION FOR HEADLIGHT AIMING

(a) Preparation for headlight aiming Adjustments.

8. INSPECT HEADLIGHT

(a) Inspect headlight Adjustments.
