System Diagram

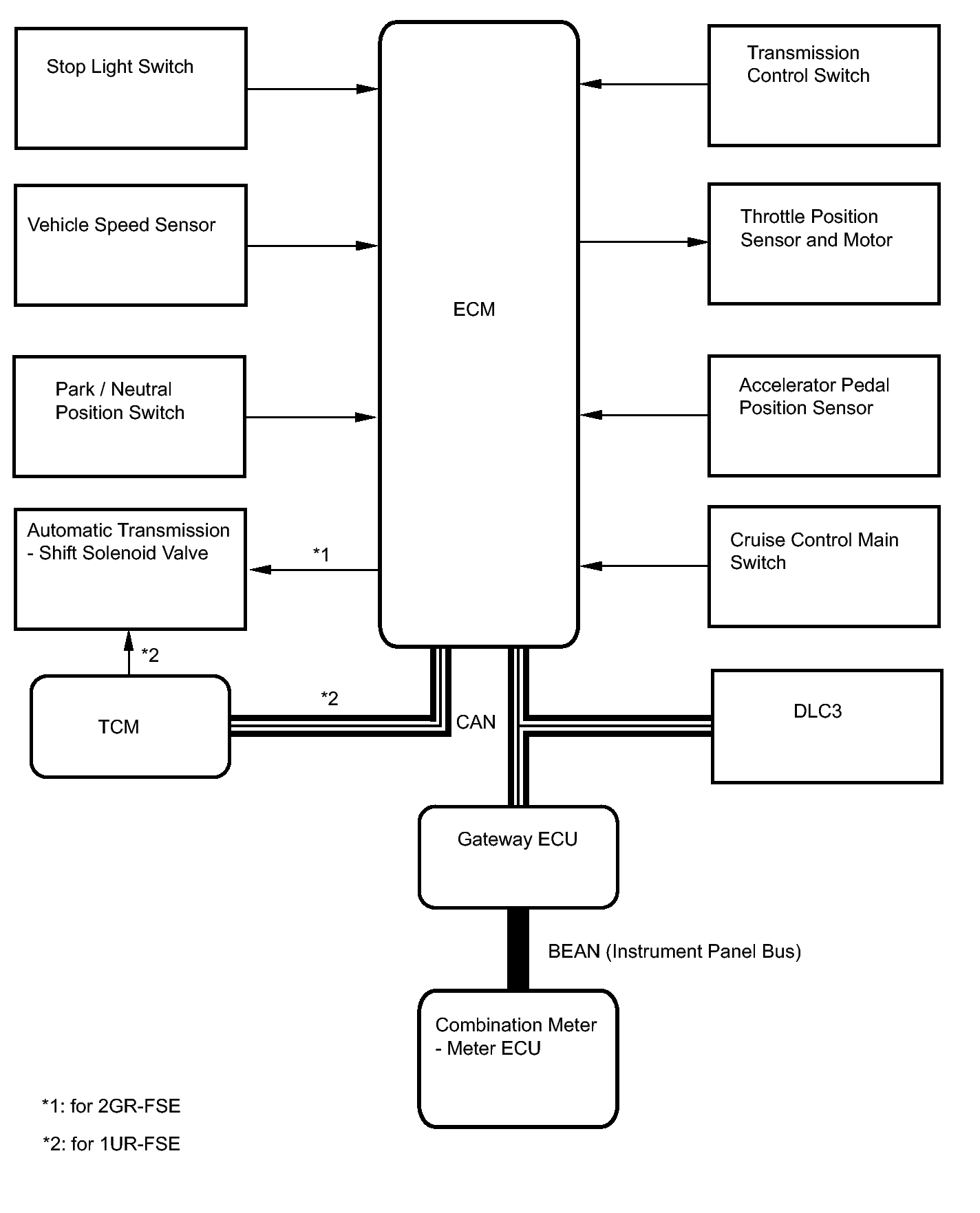

Fig 1: Identifying Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE:

Sender	Receiver	Signal	Line
ECM	Combination Meter ECU	CRUISE main indicator operation signal	CAN BEAN (Instrument Panel Bus)
ECM	TCM	Shift up/down request signal	CAN*
TCM	ECM	Shift up/down response	CAN*
