System Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 460 and 2010 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

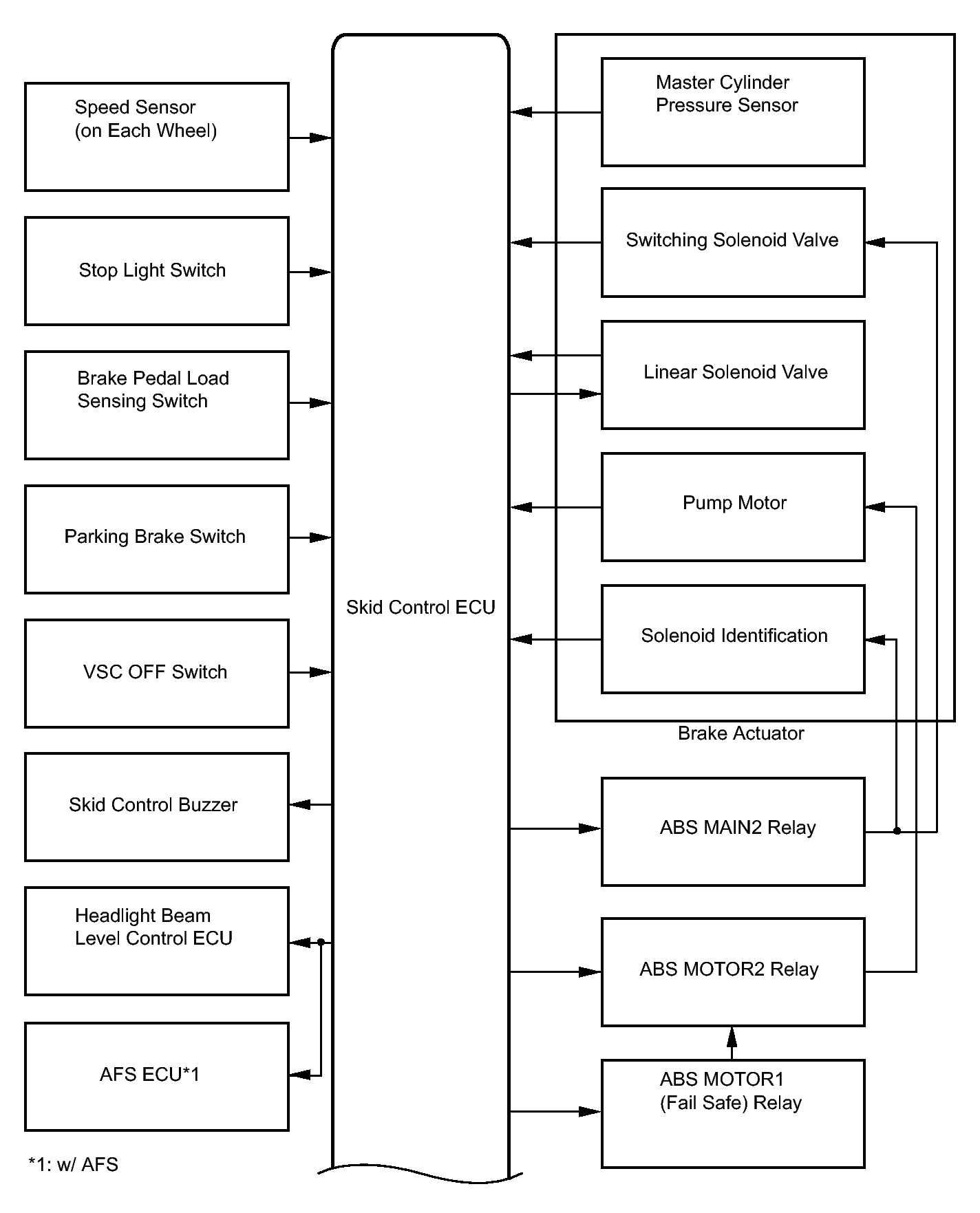

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

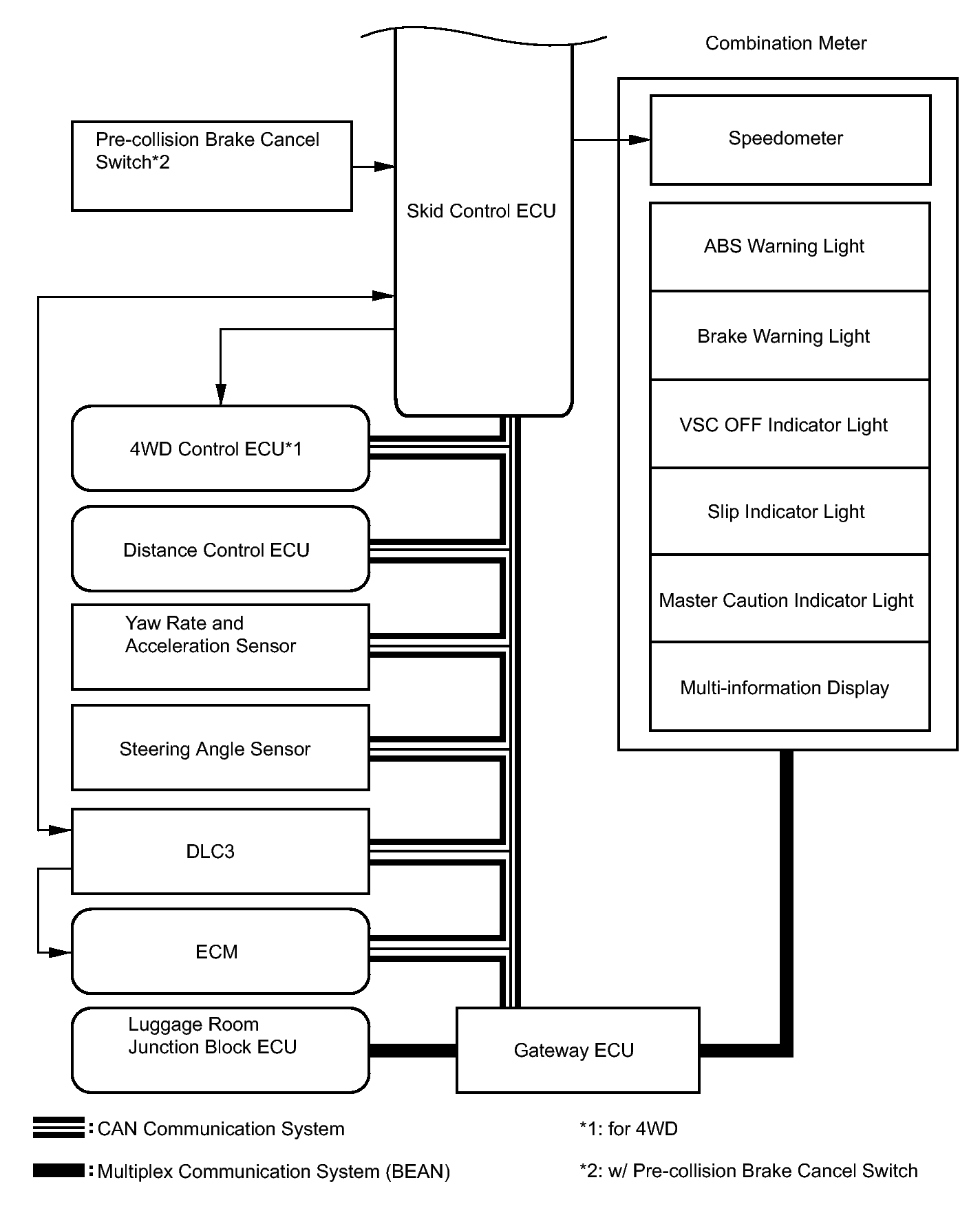

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)

Transmission ECU (Transmitter)	Receiving ECU	Signals	Communication Method
ECM	Skid control ECU	Shift position signal Throttle position signal Engine speed signal Intake air temperature signal Engine torque request signal Hill-start assist control prohibit request signal Accelerator pedal position signal	CAN communication system
Skid Control ECU	Yaw rate and acceleration sensor	Yaw rate and acceleration request signal	CAN communication system
Skid Control ECU	Steering angle sensor	Steering angle sensor request signal	CAN communication system
Skid Control ECU	ECM	Wheel speed signal VSC data signal	CAN communication system
Skid Control ECU	Gateway ECU	ABS warning light signal Brake warning light signal VSC OFF indicator light signal Slip indicator light signal Master caution indicator light signal Multi-information display signal Stop light signal	CAN communication system
Distance control ECU	Skid control ECU	Brake control request signal	CAN communication system
