Pre-Collision System: Notes

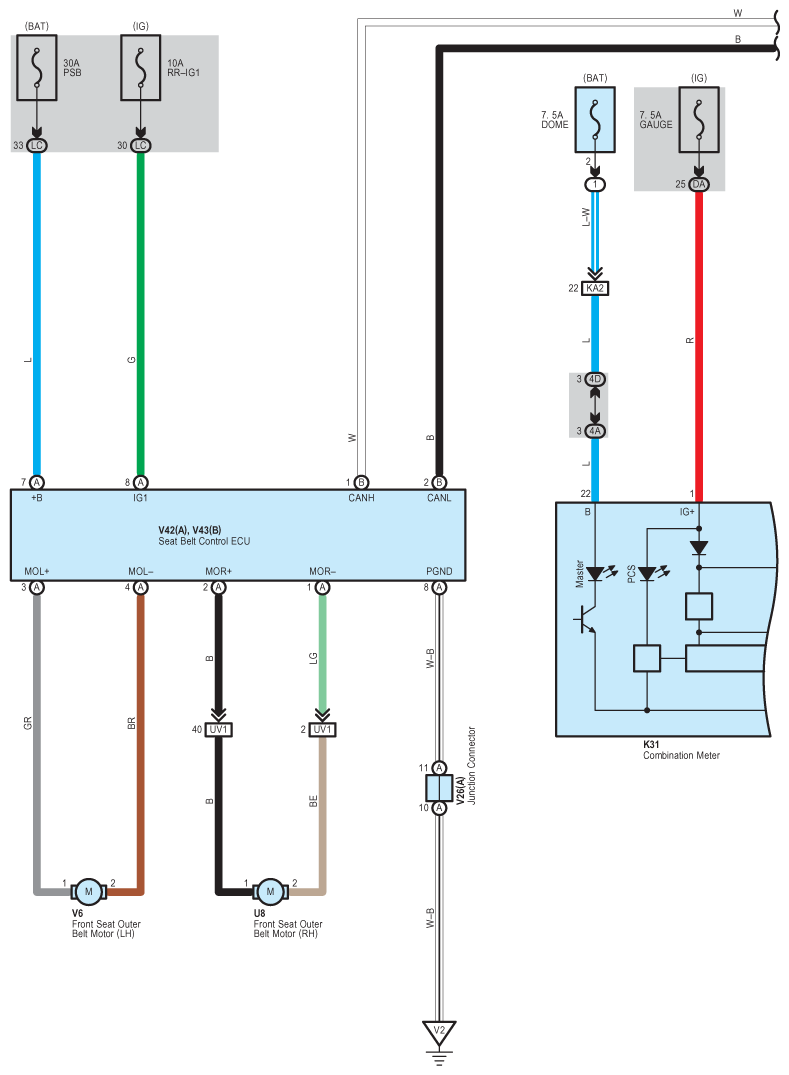

Fig 1: Pre-Collision System - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Pre-Collision System - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

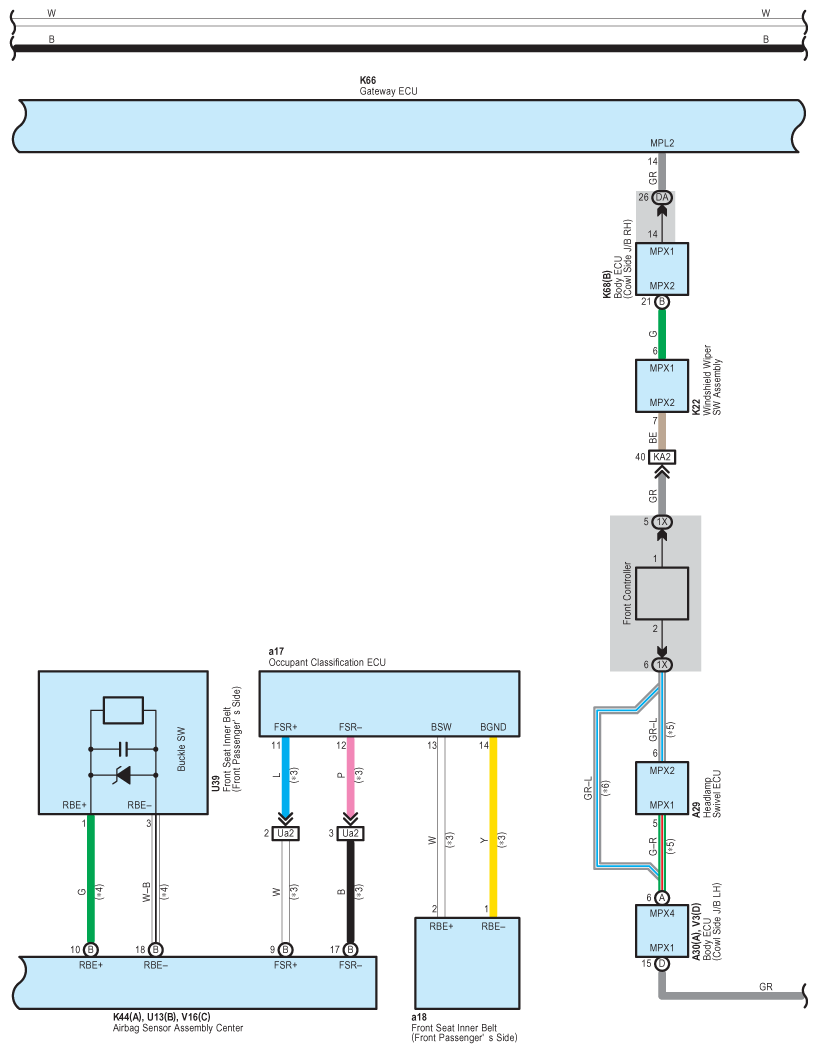

Fig 3: Pre-Collision System - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

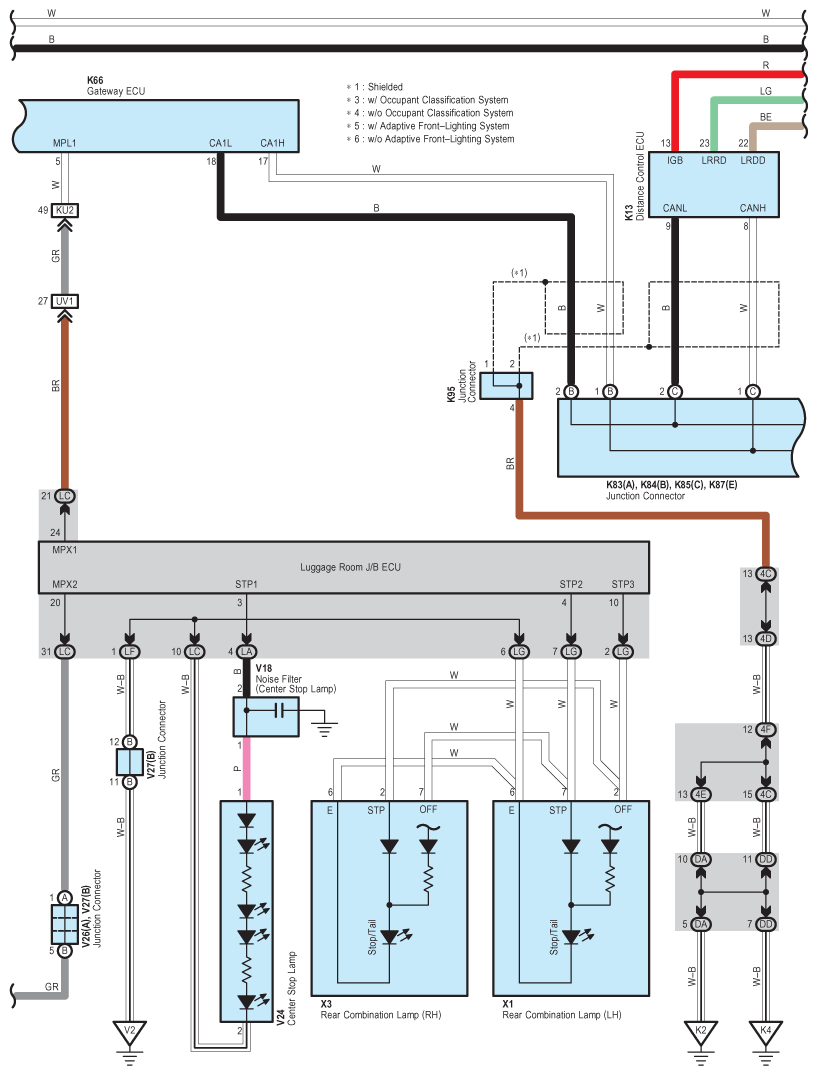

Fig 4: Pre-Collision System - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

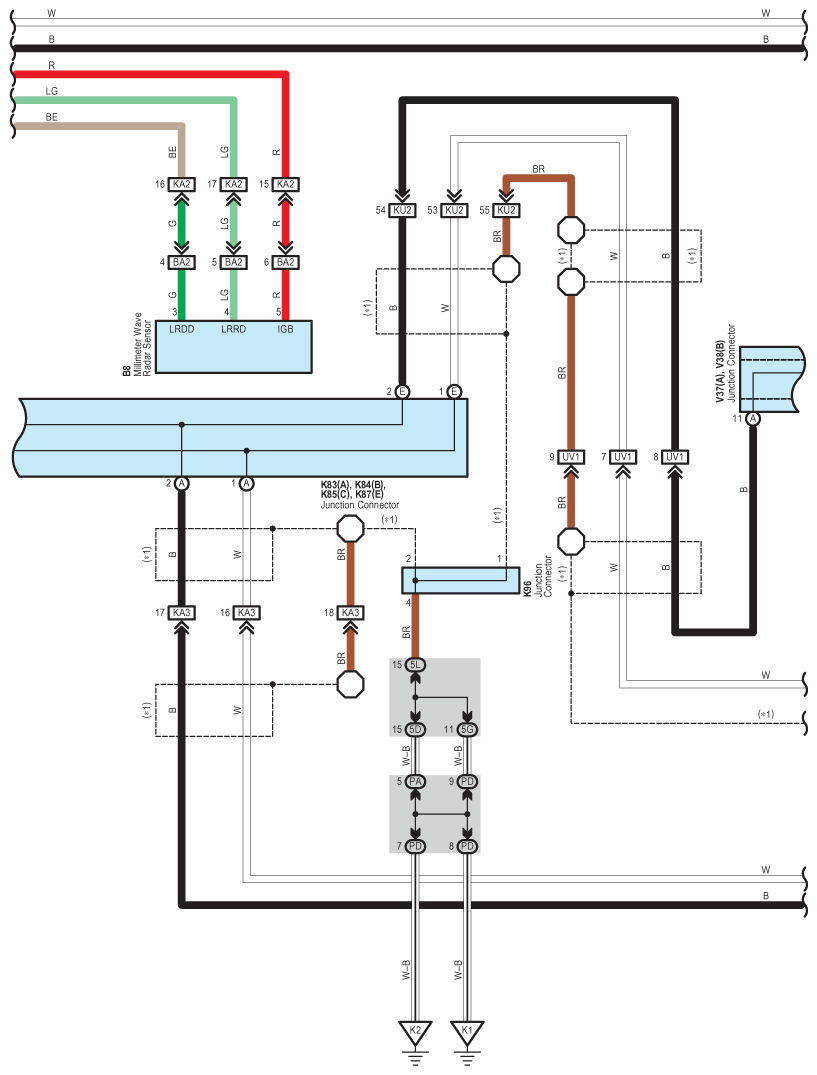

Fig 5: Pre-Collision System - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

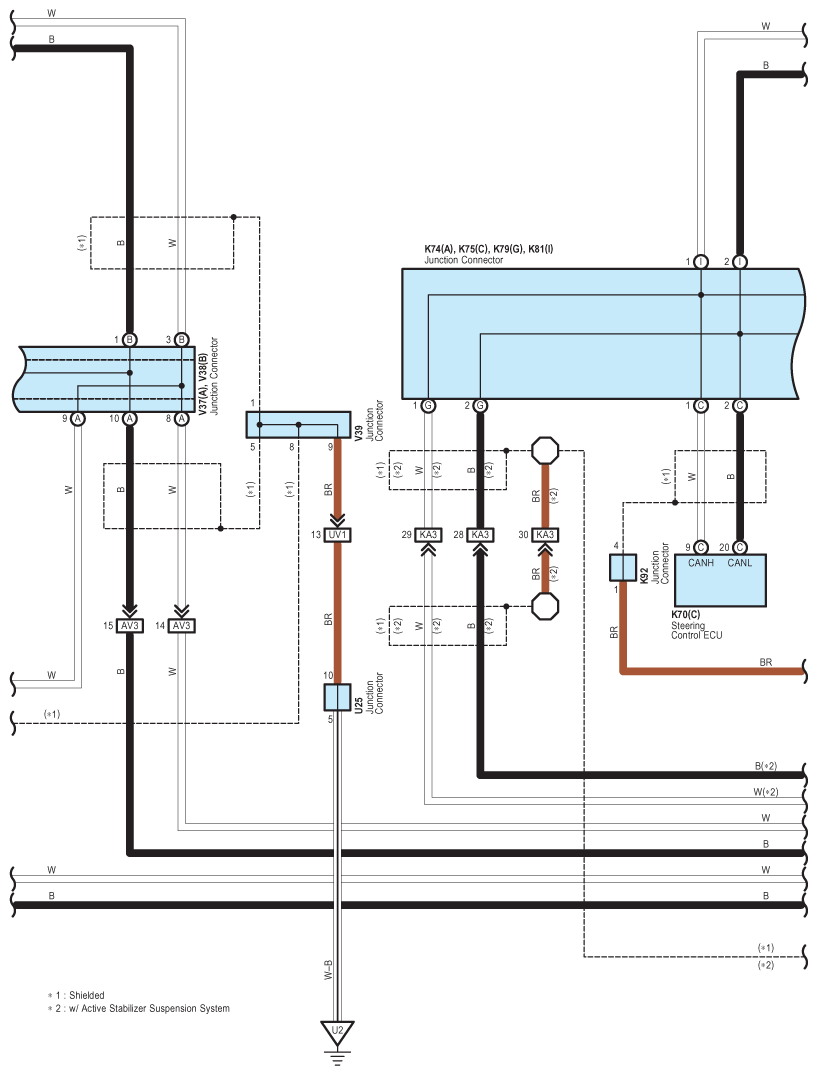

Fig 6: Pre-Collision System - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

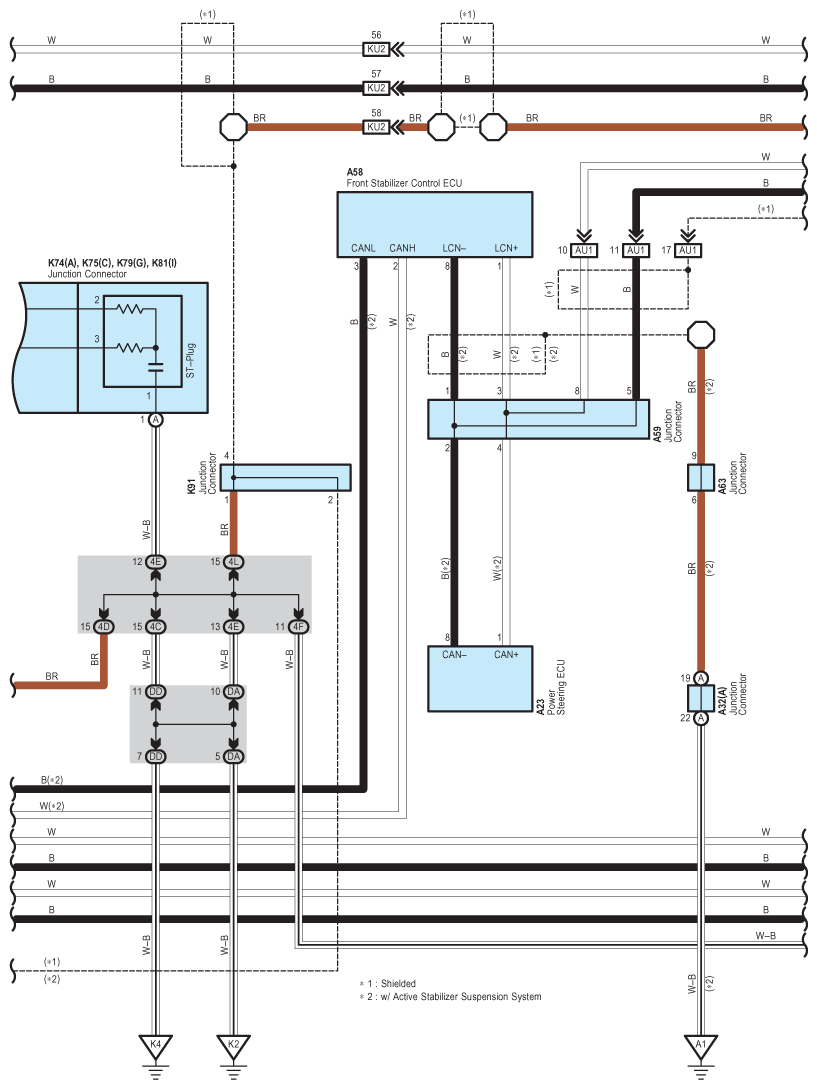

Fig 7: Pre-Collision System - Circuit Diagram (7 Of 10)

Fig 8: Pre-Collision System - Circuit Diagram (8 Of 10)

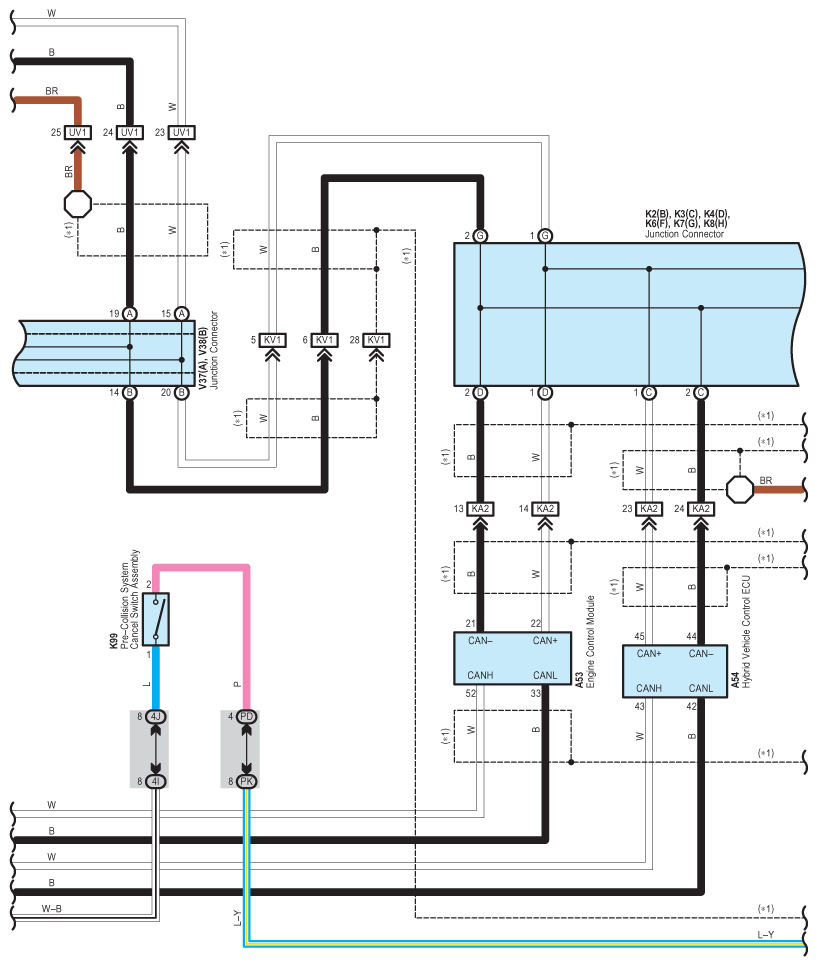

Fig 9: Pre-Collision System - Circuit Diagram (9 Of 10)

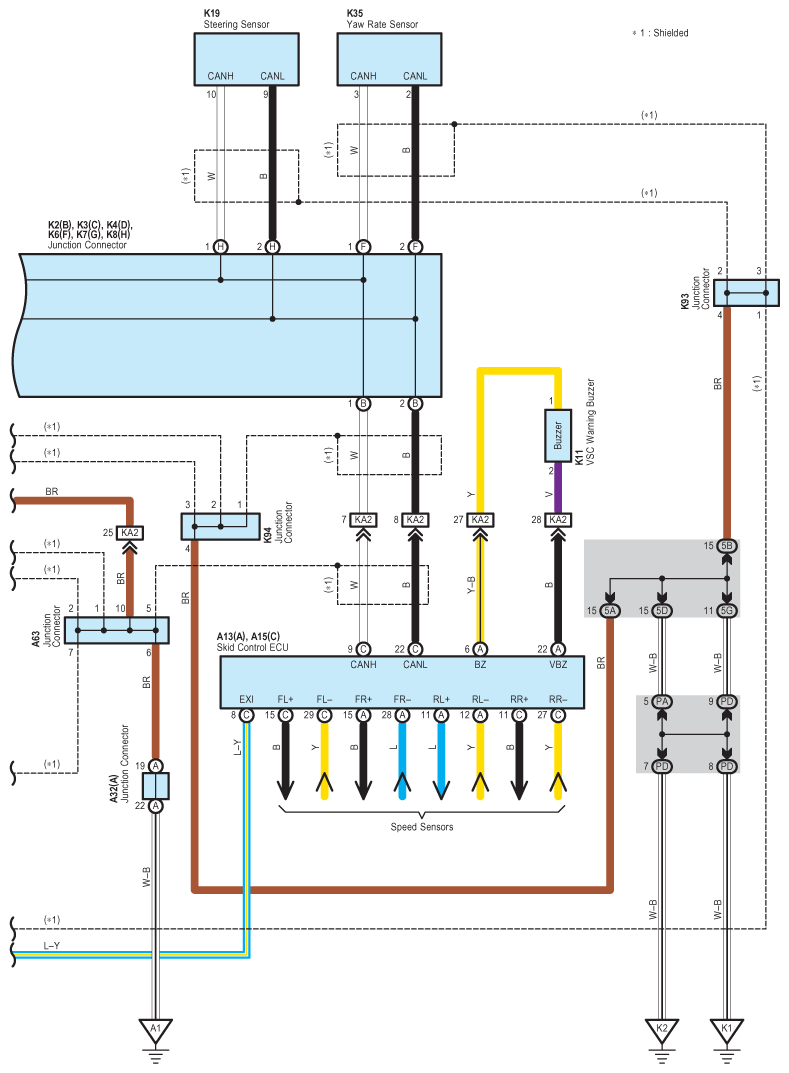

Fig 10: Pre-Collision System - Circuit Diagram (10 Of 10)
