Rear Power Window RH Auto Up/Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

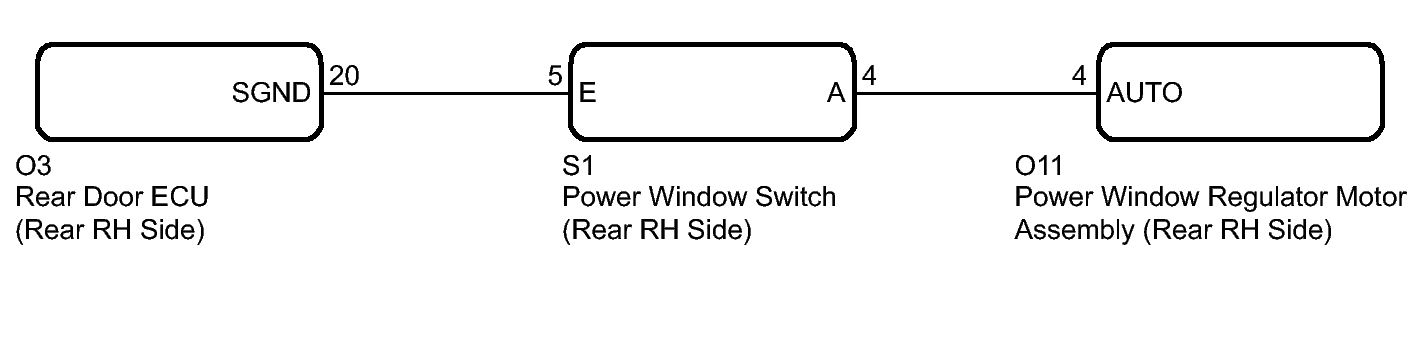

Fig 1: Rear Power Window RH Auto Up/Down Function Does Not Operate With Rear Power Window Switch RH - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
