System Diagram

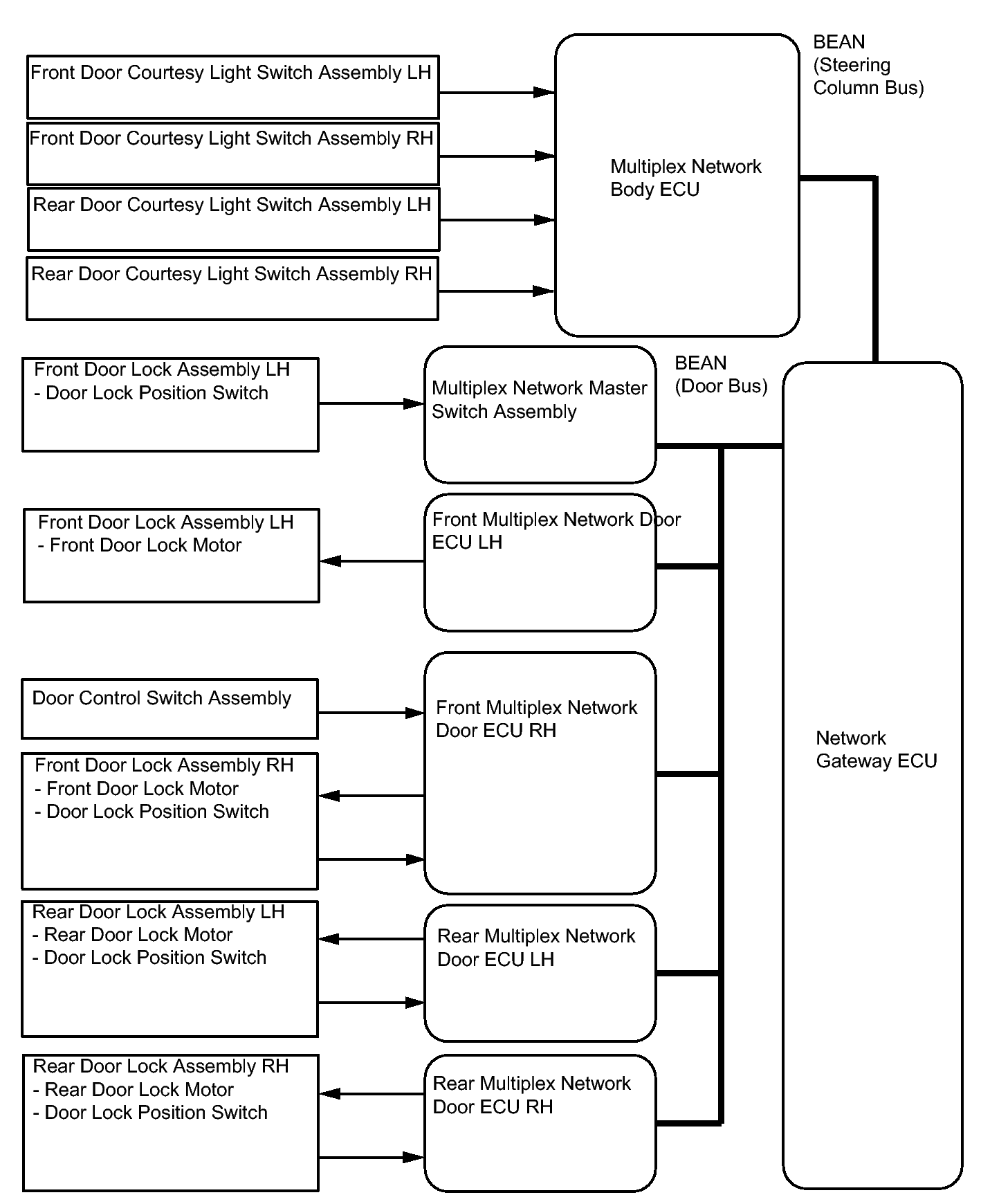

Fig 1: Power Door Lock Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

Sender	Receiver	Signal	Line
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door key-linked switch lock signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door manual lock switch signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Body ECU	Driver side door lock position switch signal	BEAN
Front Multiplex Network Door ECU LH	Multiplex Network Body ECU	Passenger side door manual lock switch signal	BEAN
Front Multiplex Network Door ECU RH	Multiplex Network Body ECU	Passenger side door lock position switch signal	BEAN
Rear Multiplex Network Door ECU LH	Multiplex Network Body ECU	Rear LH side door lock position switch signal	BEAN
Rear Multiplex Network Door ECU RH	Multiplex Network Body ECU	Rear RH side door lock position switch signal	BEAN
Multiplex Network Body ECU	Front Multiplex Network Door ECU LH	Driver side door lock control signal	BEAN
Multiplex Network Body ECU	Front Multiplex Network Door ECU RH	Passenger side door lock control signal	BEAN
Multiplex Network Body ECU	Rear Multiplex Network Door ECU LH	Rear LH side door lock control signal	BEAN
Multiplex Network Body ECU	Rear Multiplex Network Door ECU RH	Rear RH door lock control signal	BEAN
