Engine Control, Cruise Control, Electronically Controlled Transmission and A/T Indicator: Notes

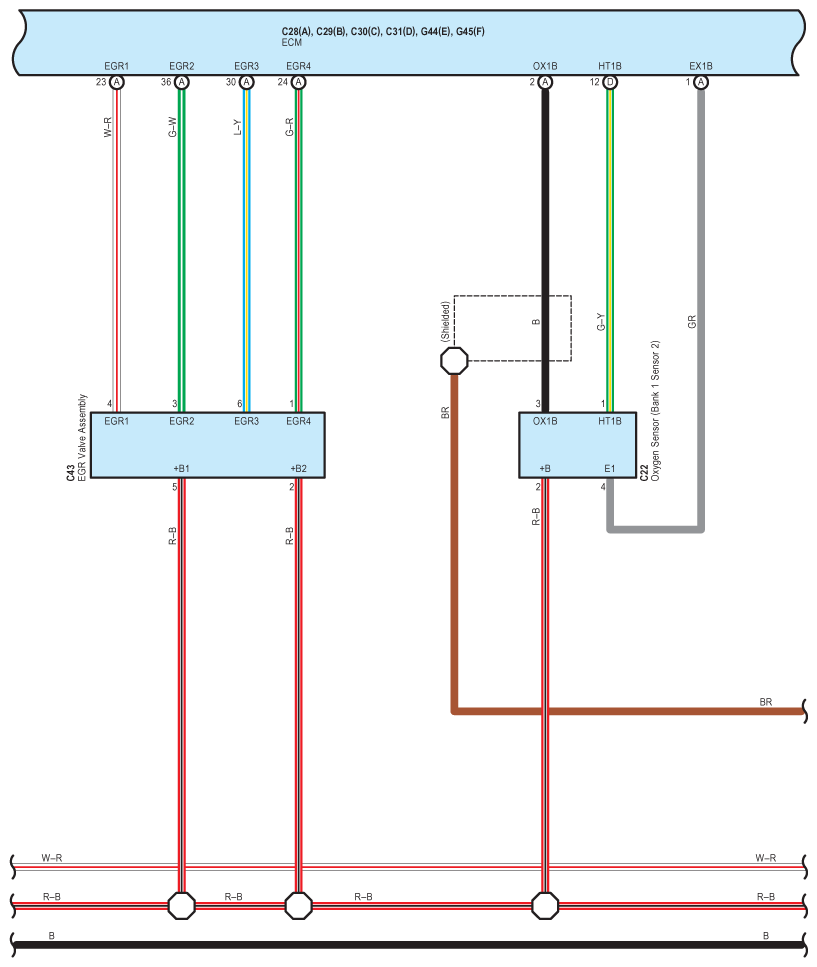

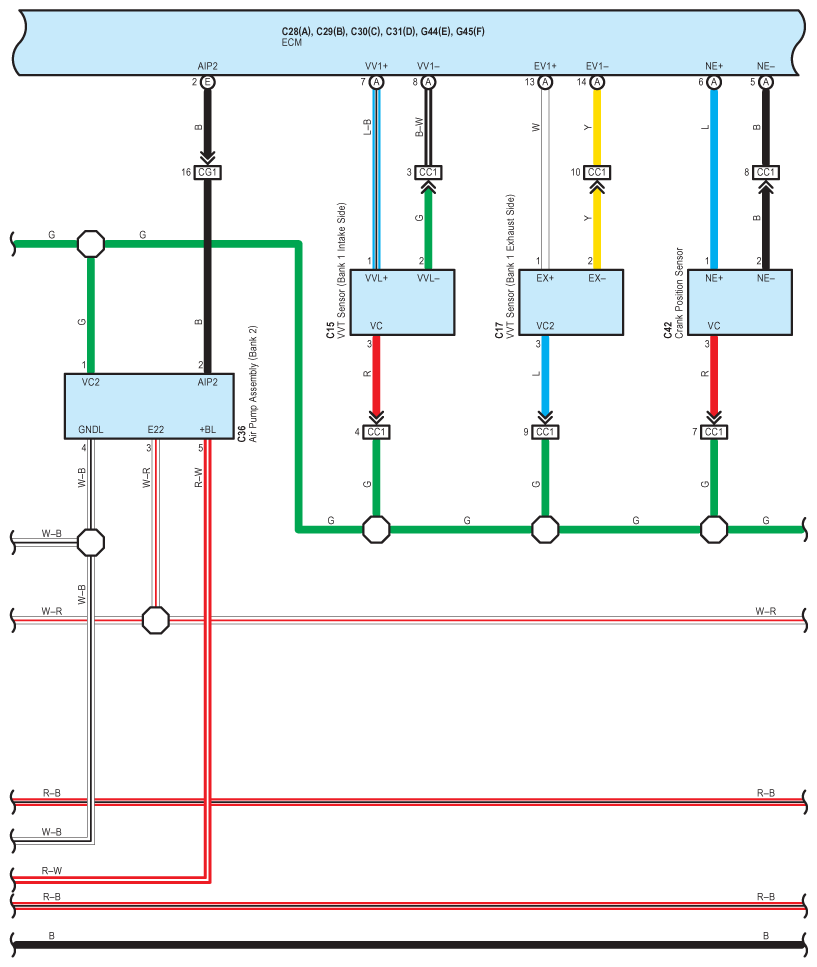

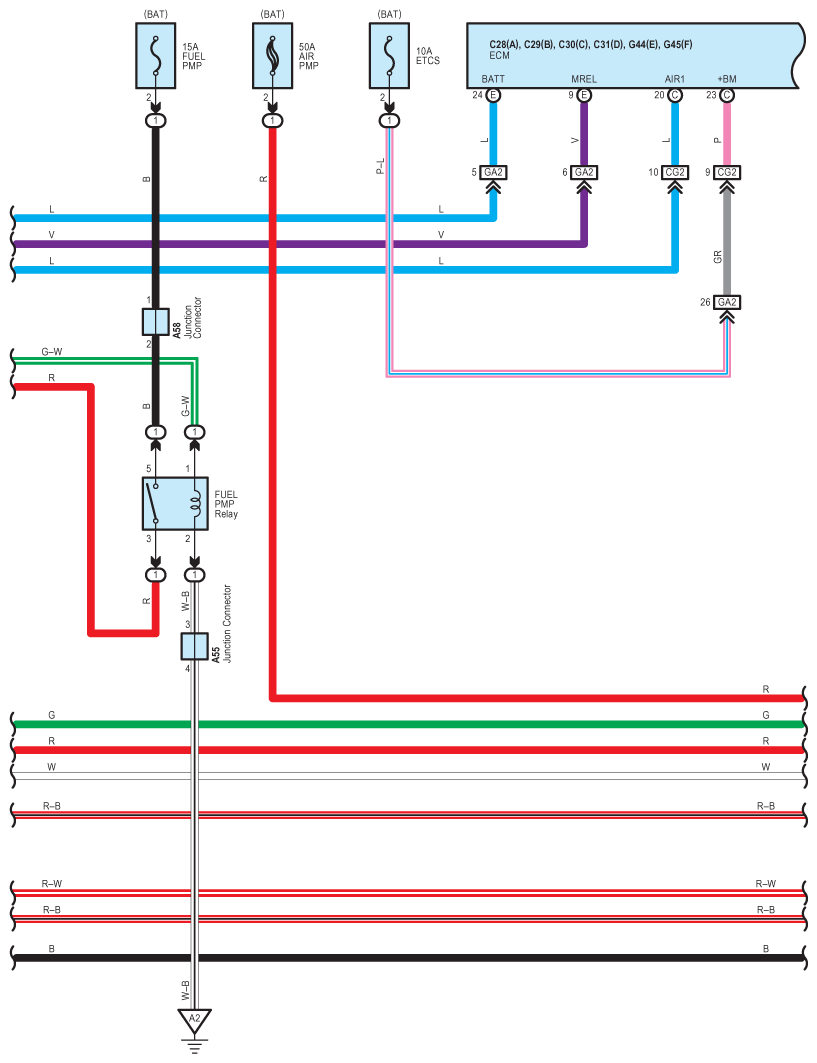

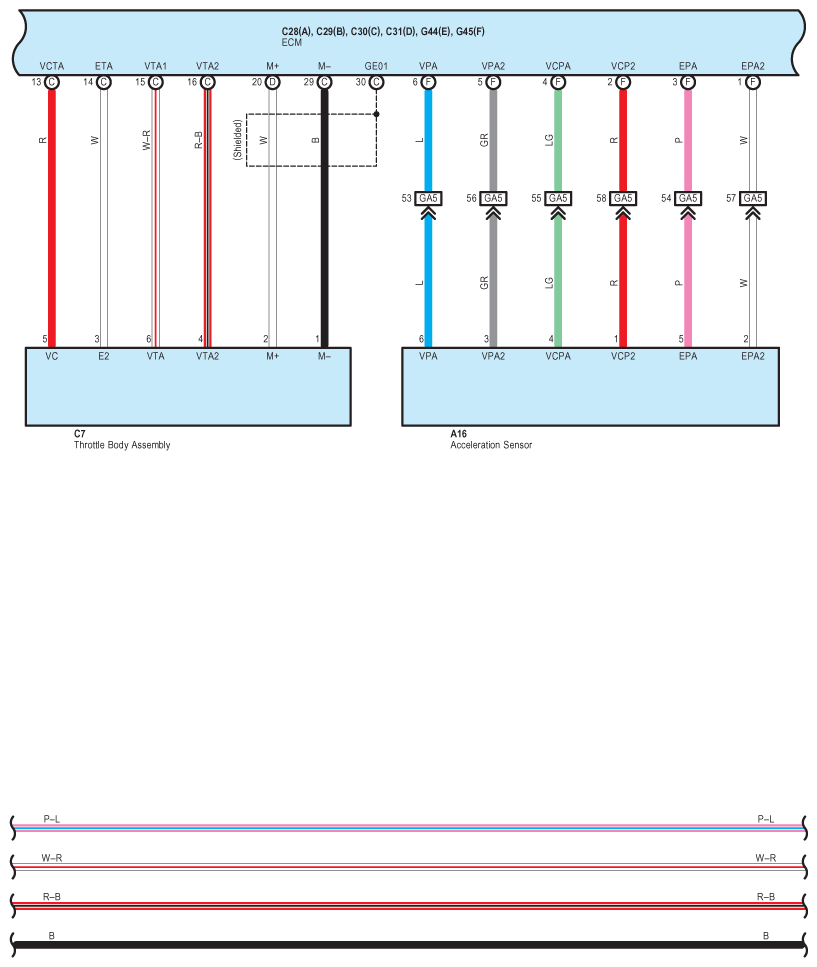

Fig 1: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (1 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

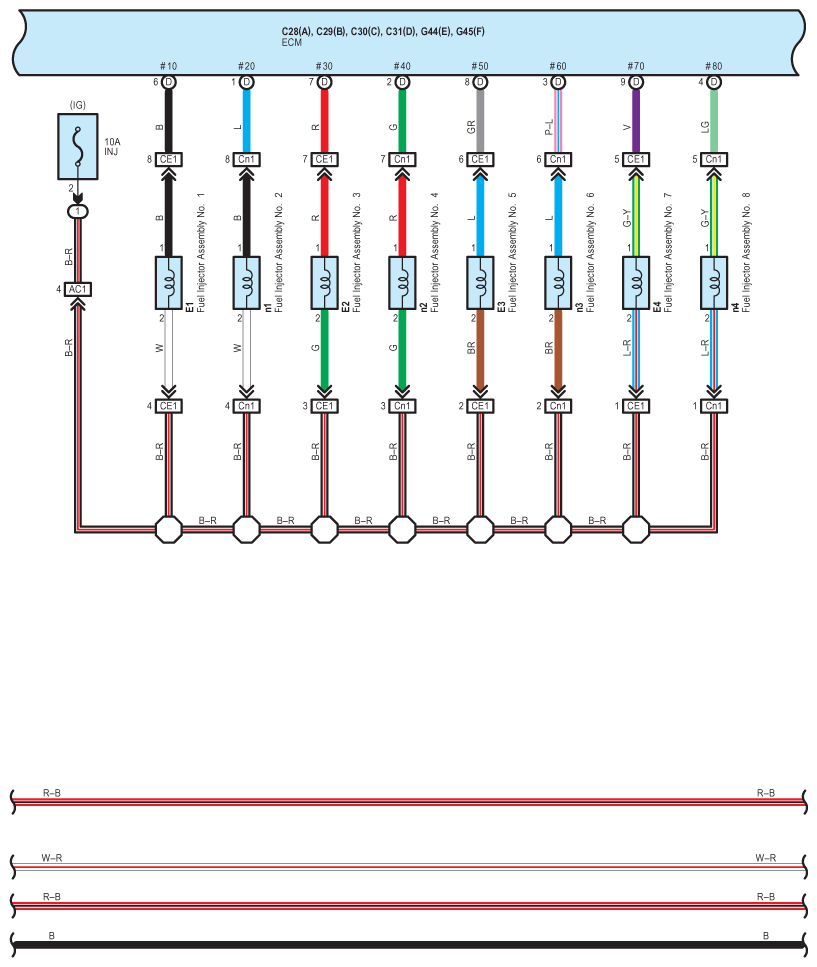

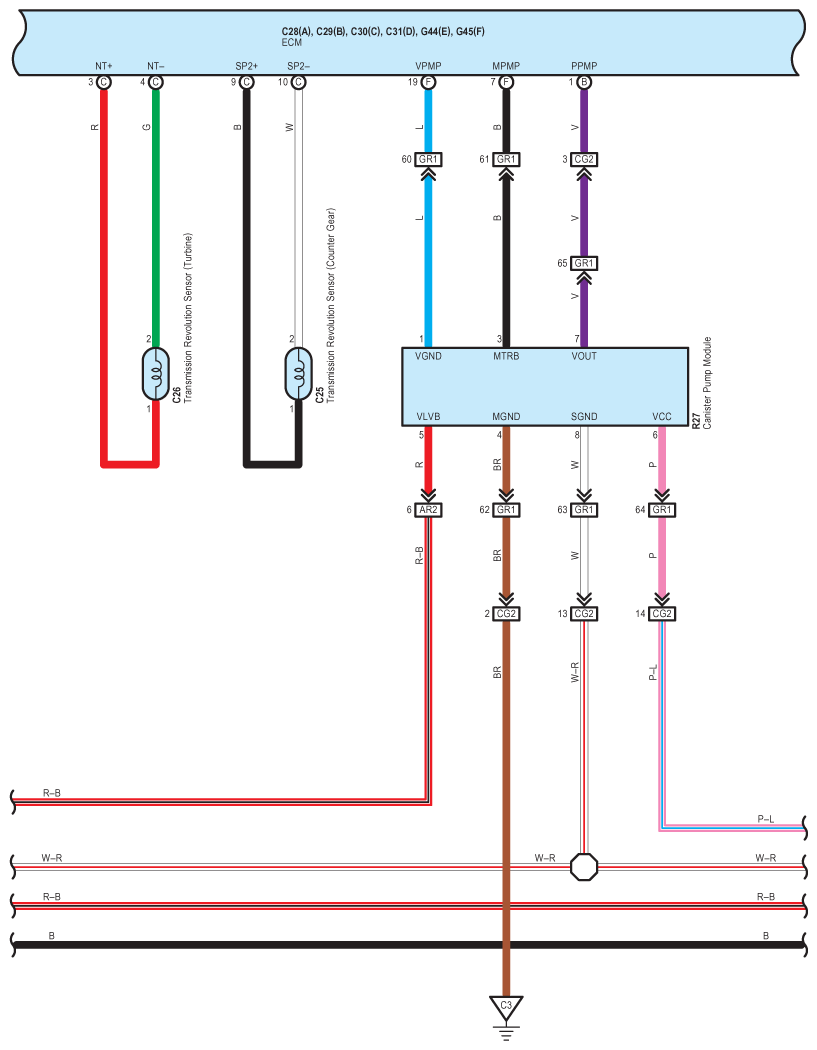

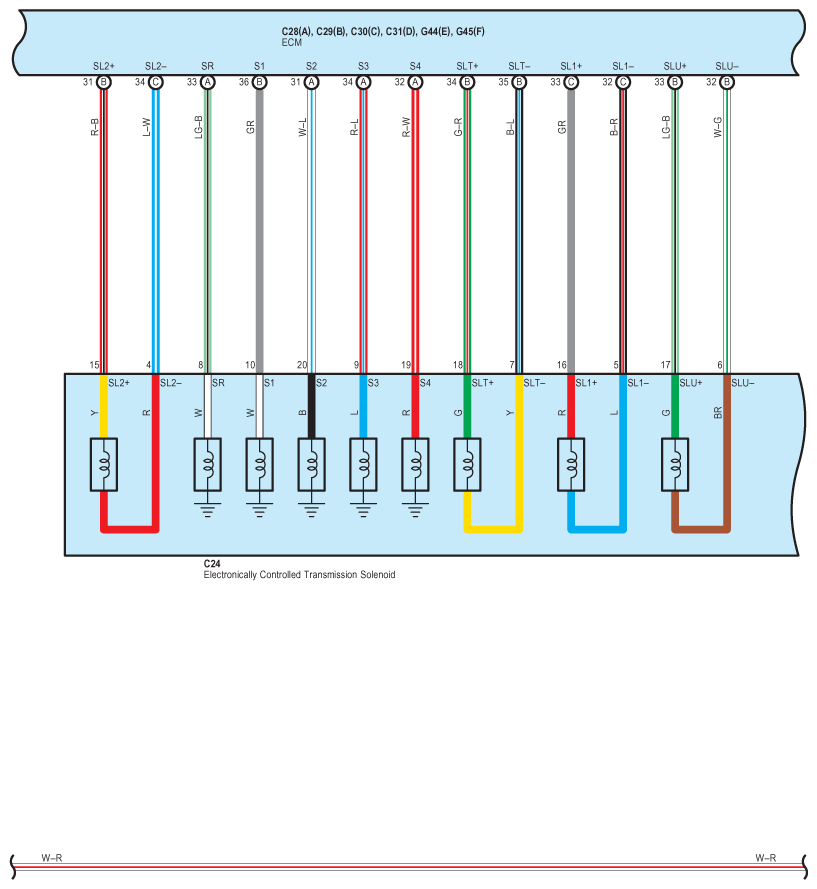

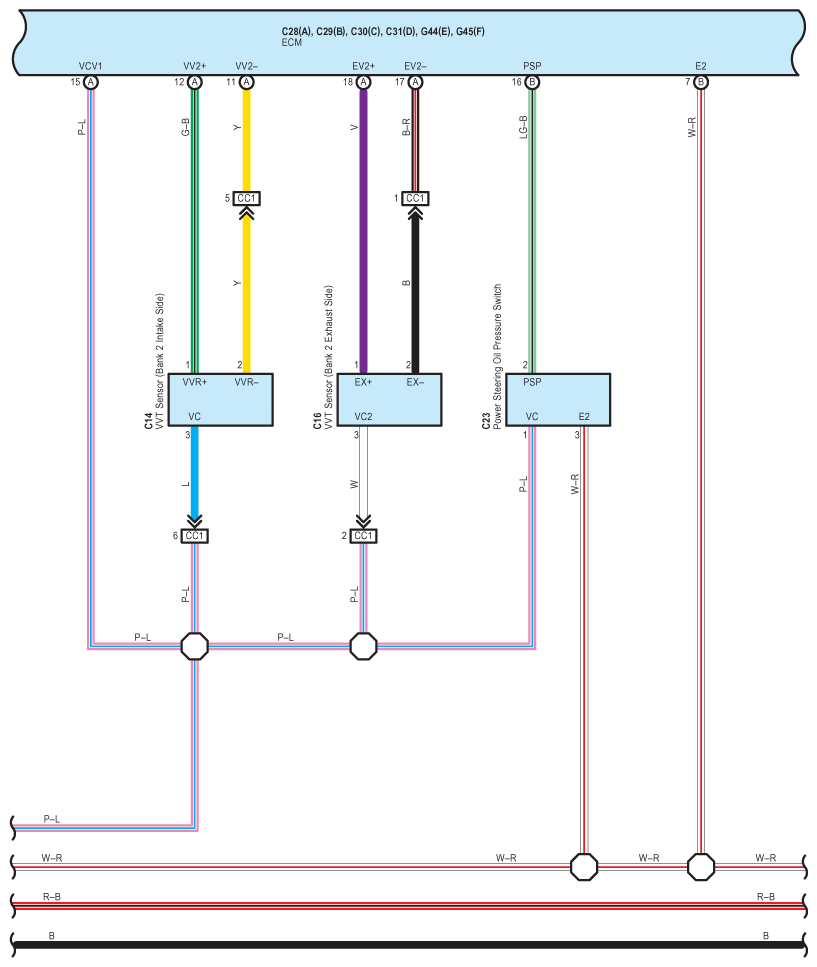

Fig 2: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (2 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

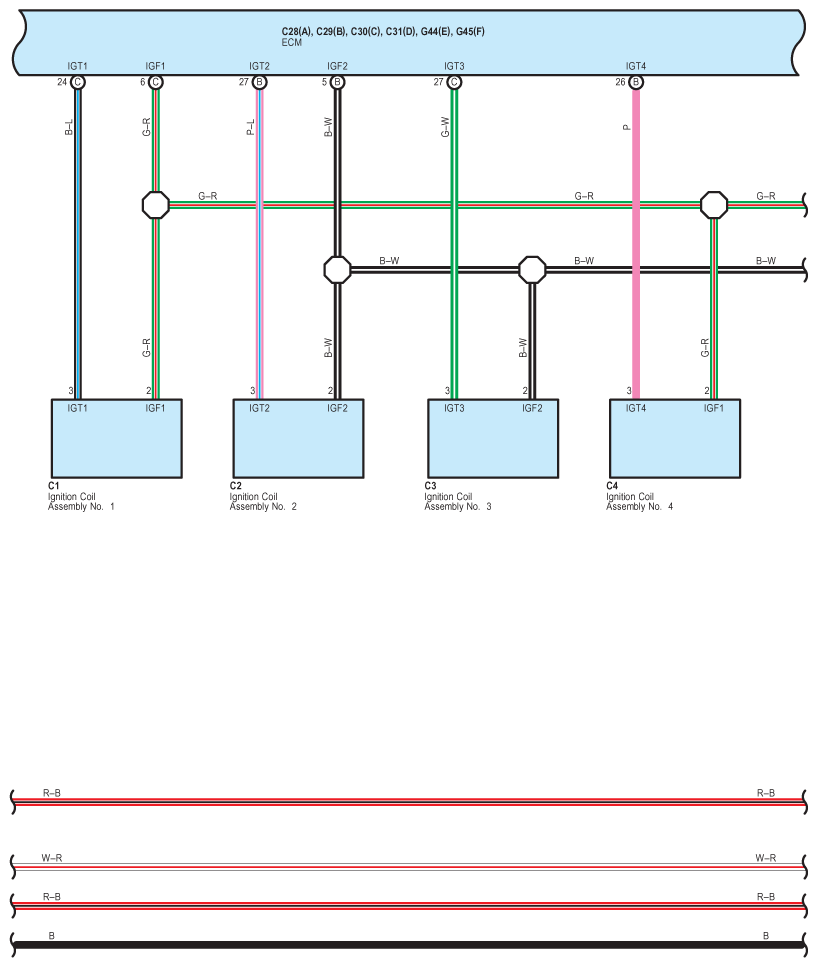

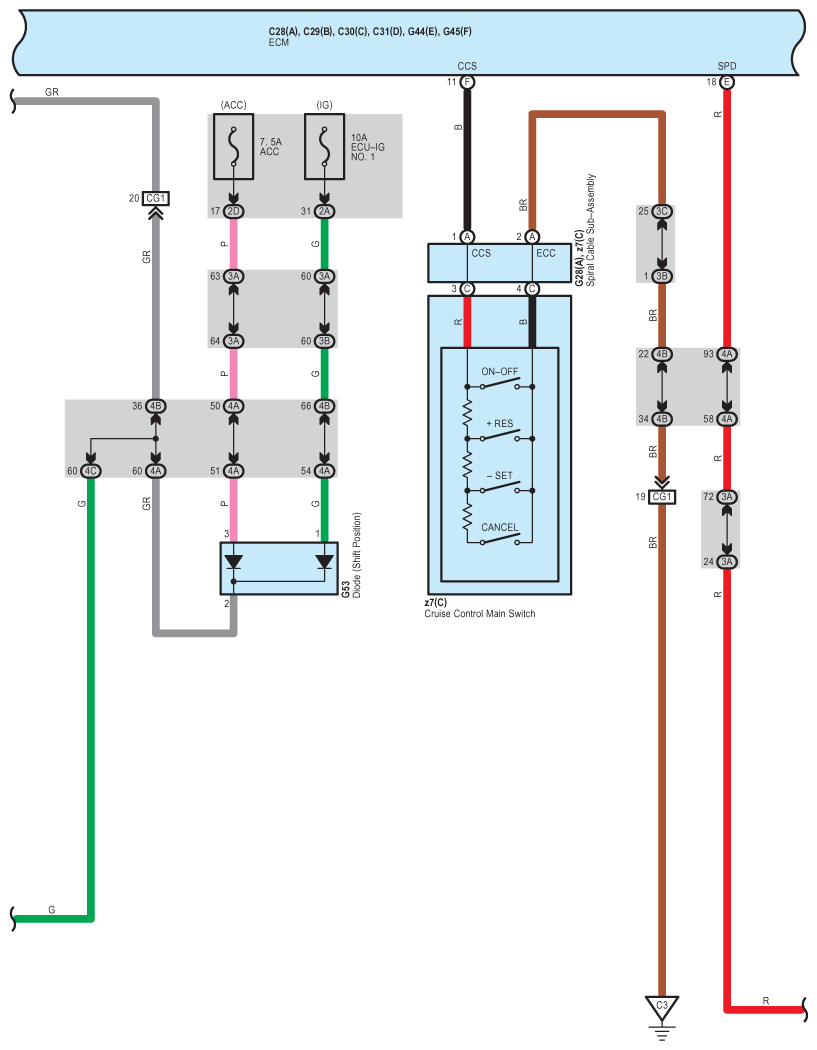

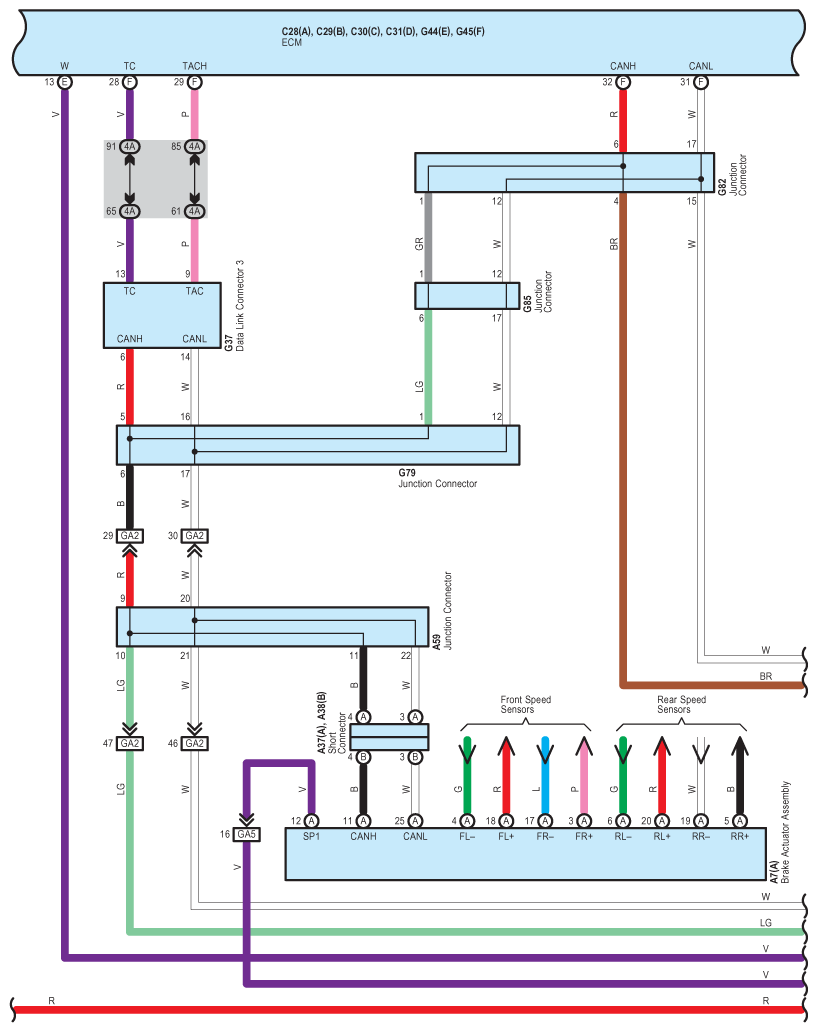

Fig 3: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (3 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

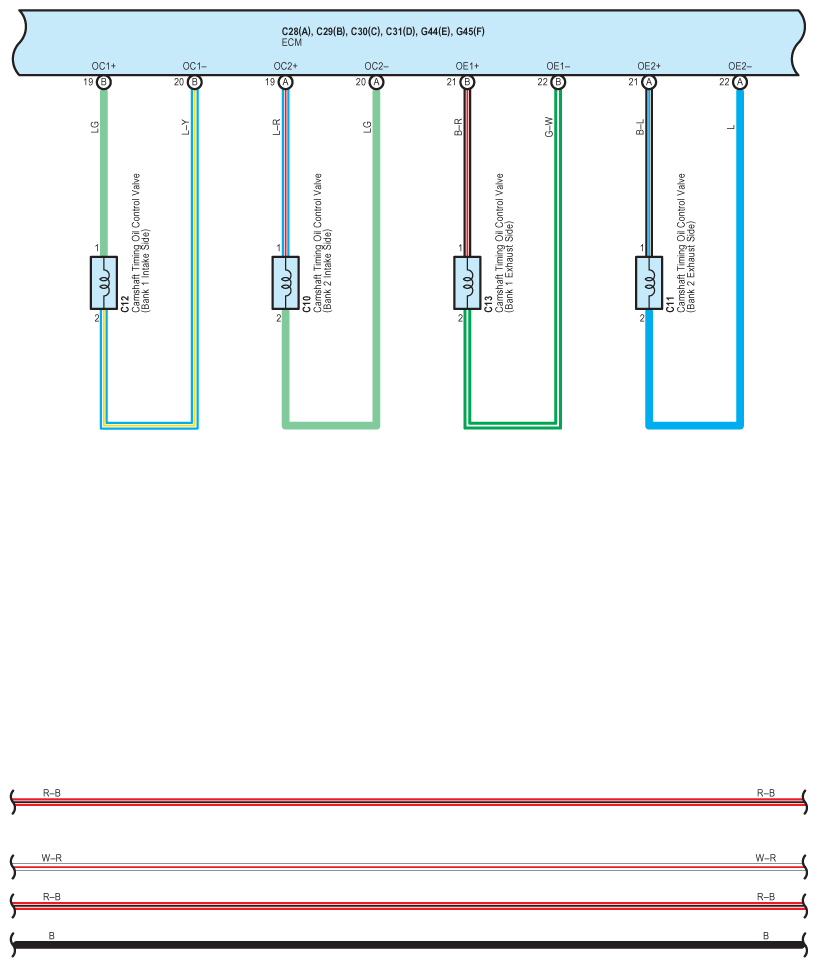

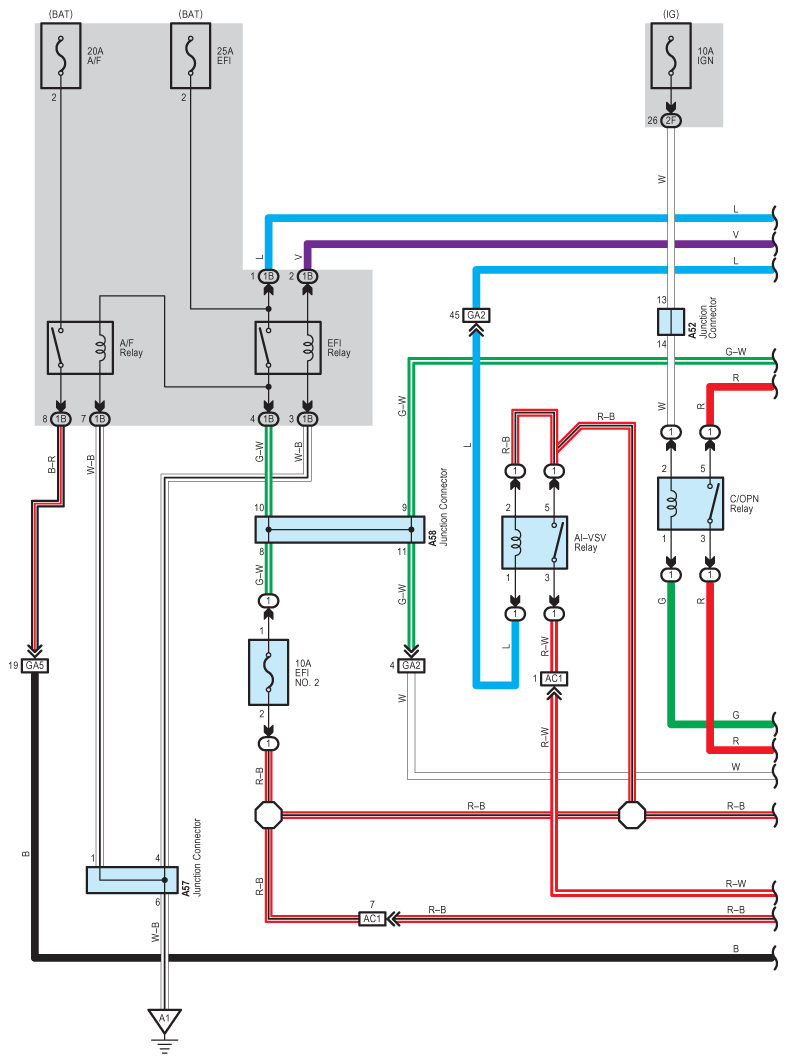

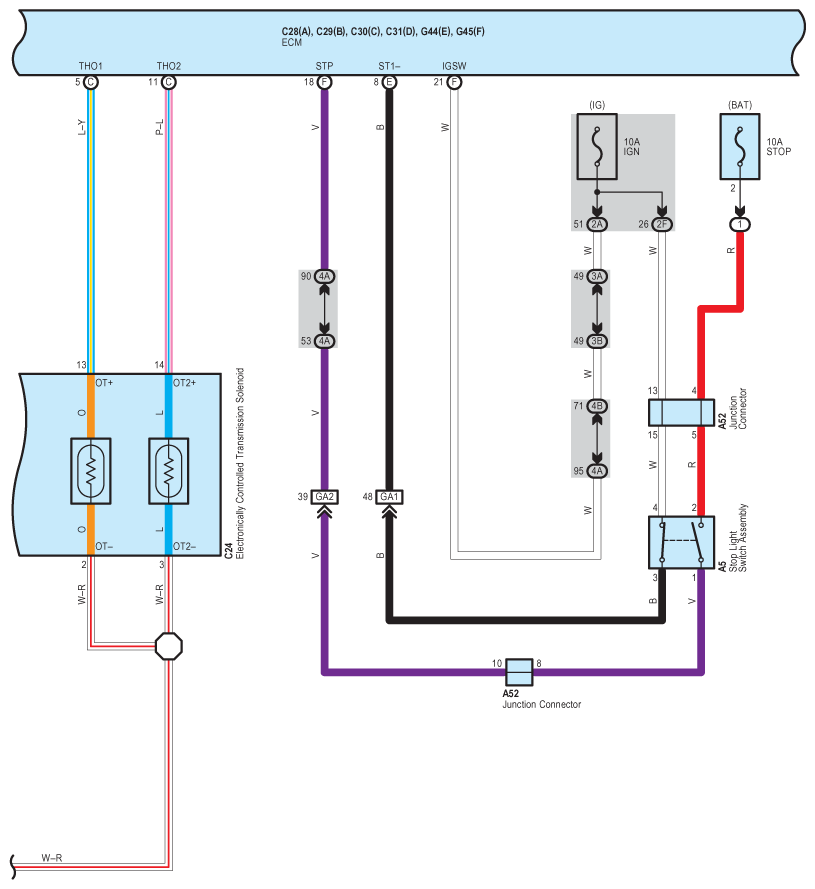

Fig 4: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (4 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

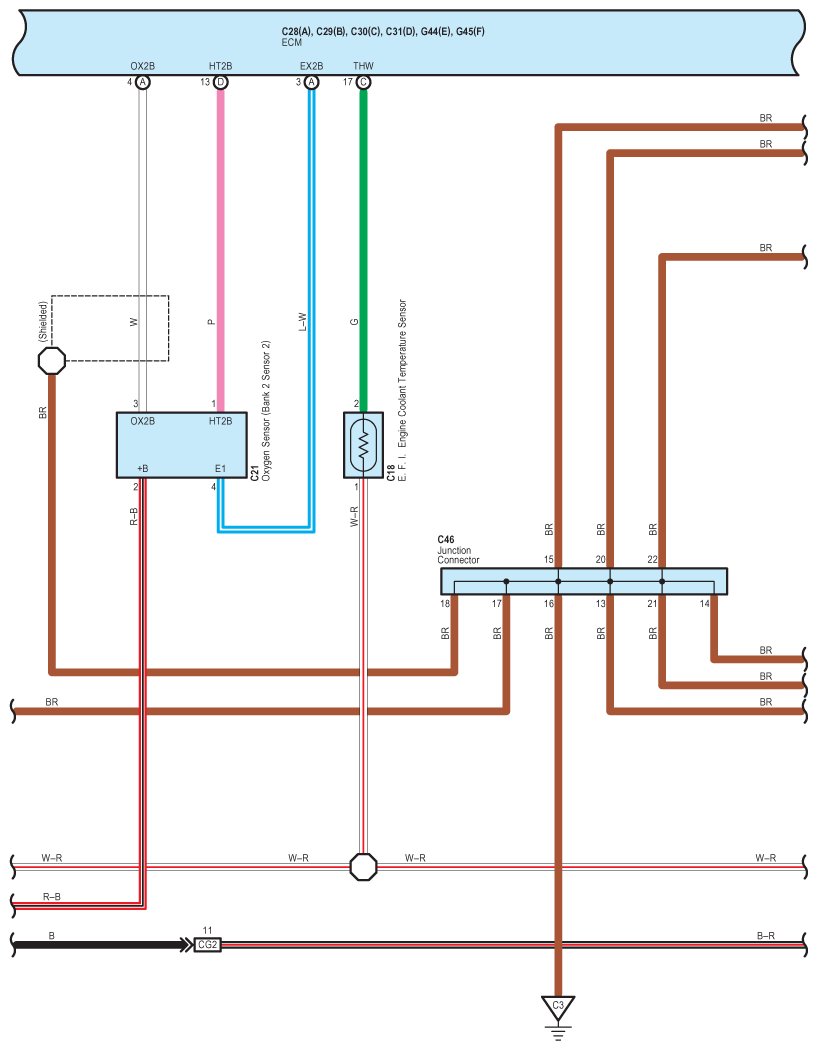

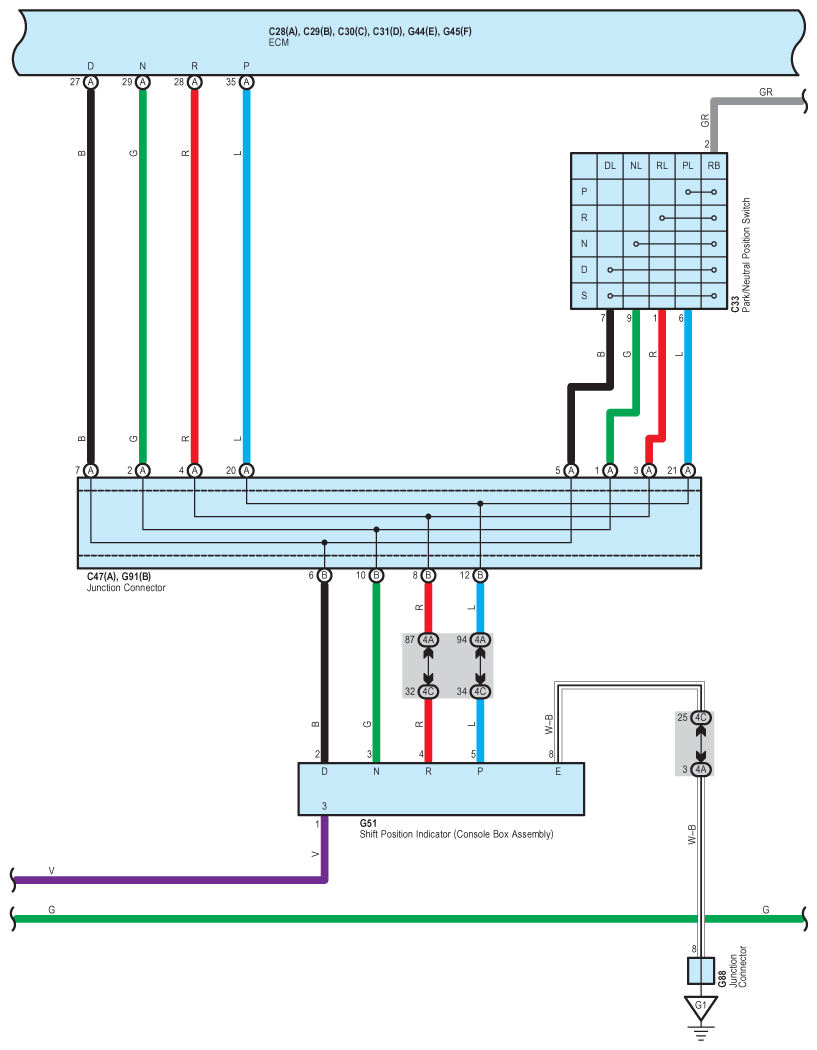

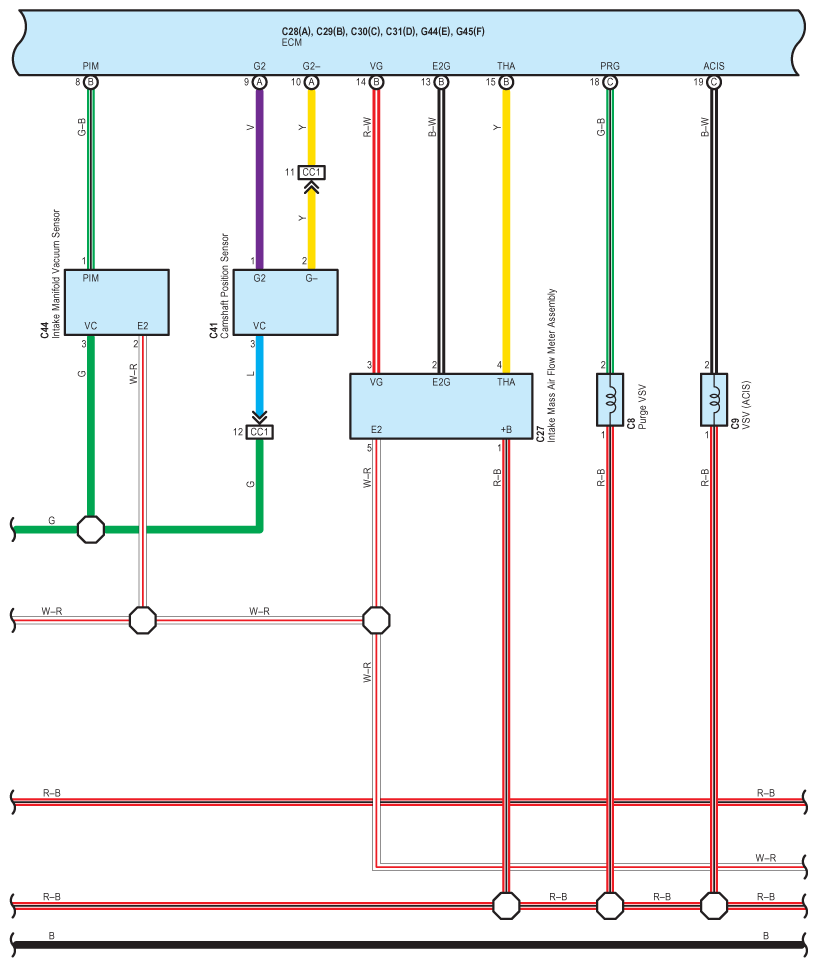

Fig 5: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (5 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

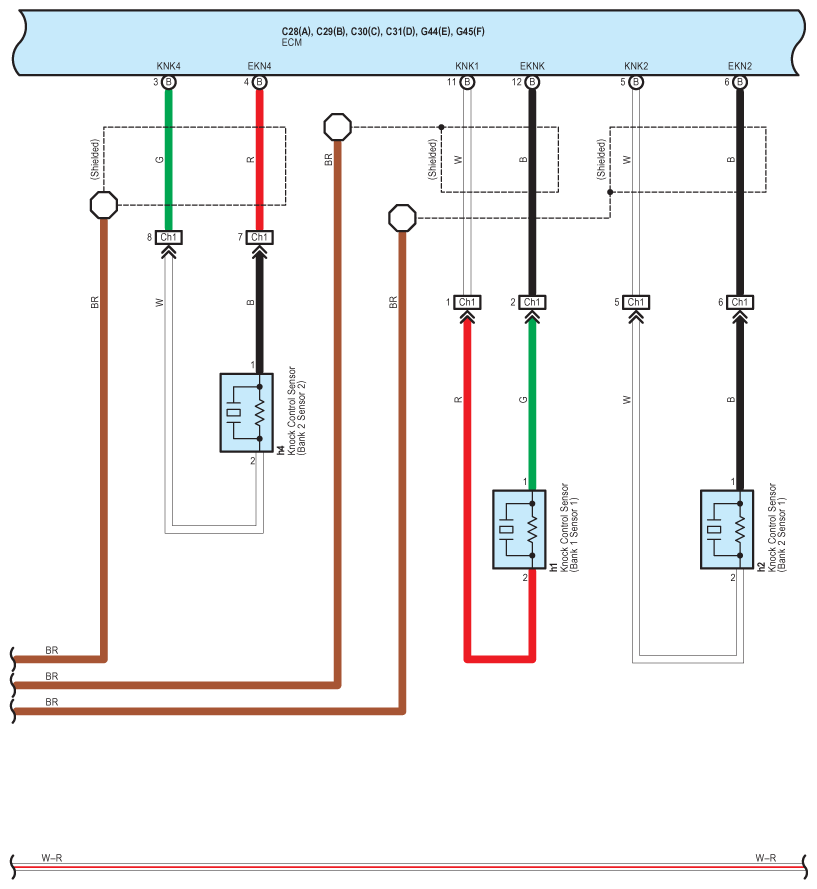

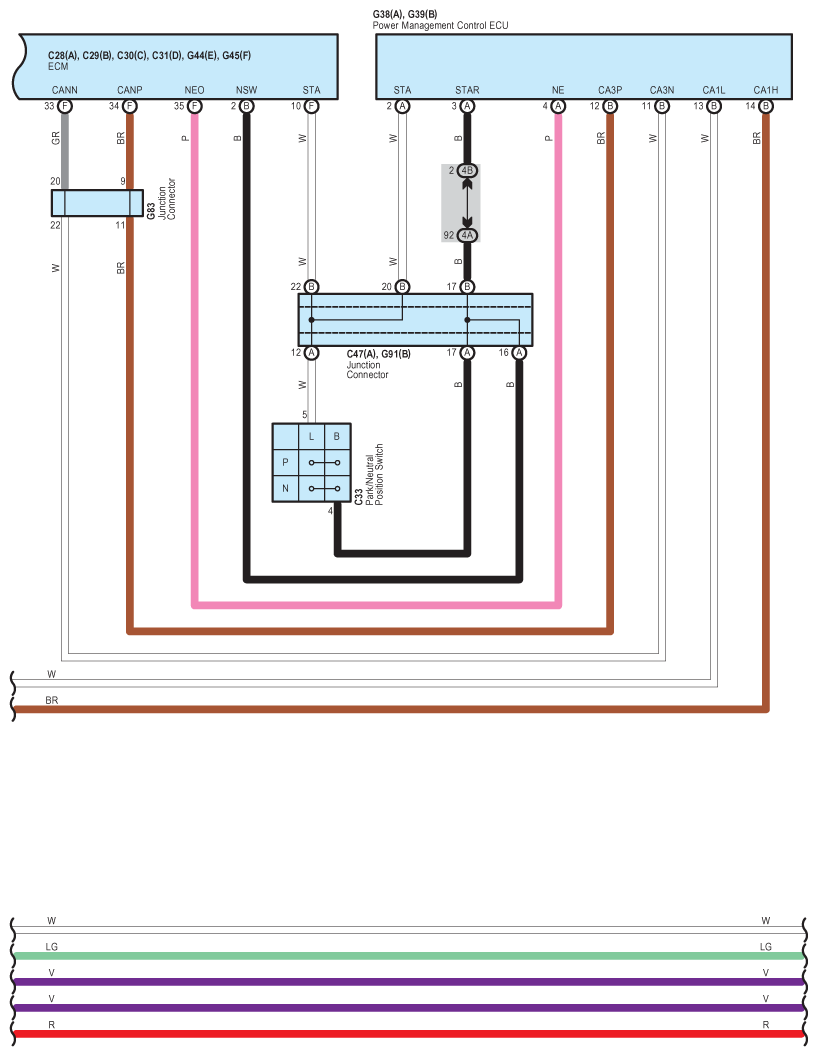

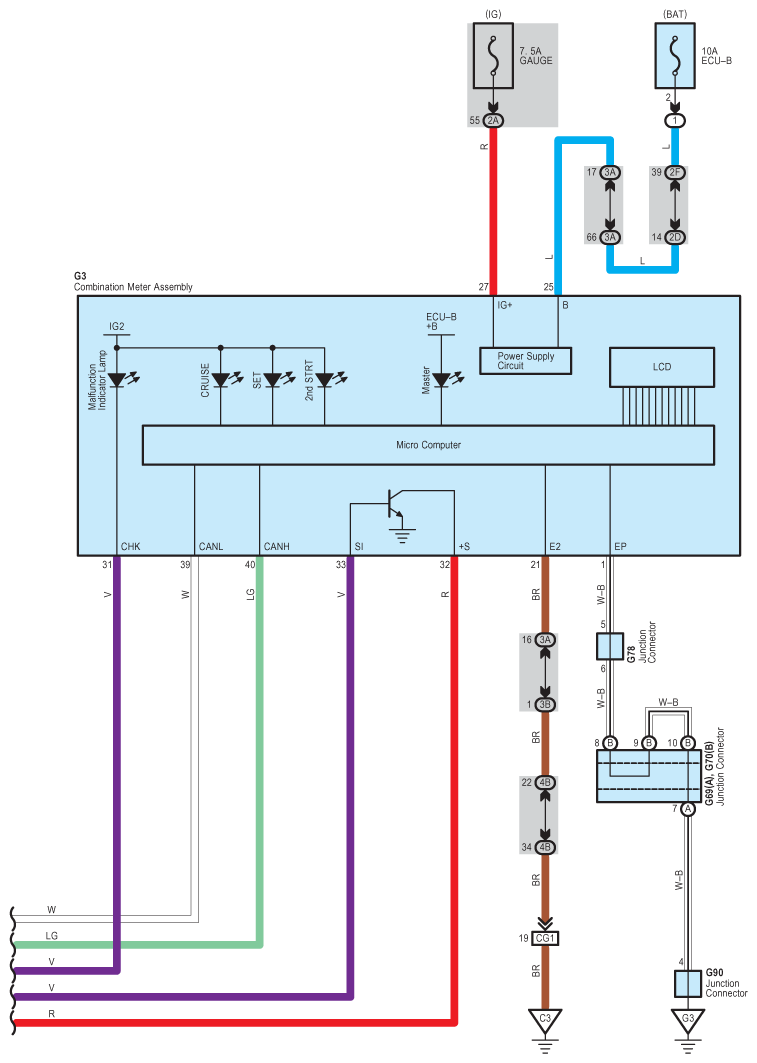

Fig 6: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (6 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

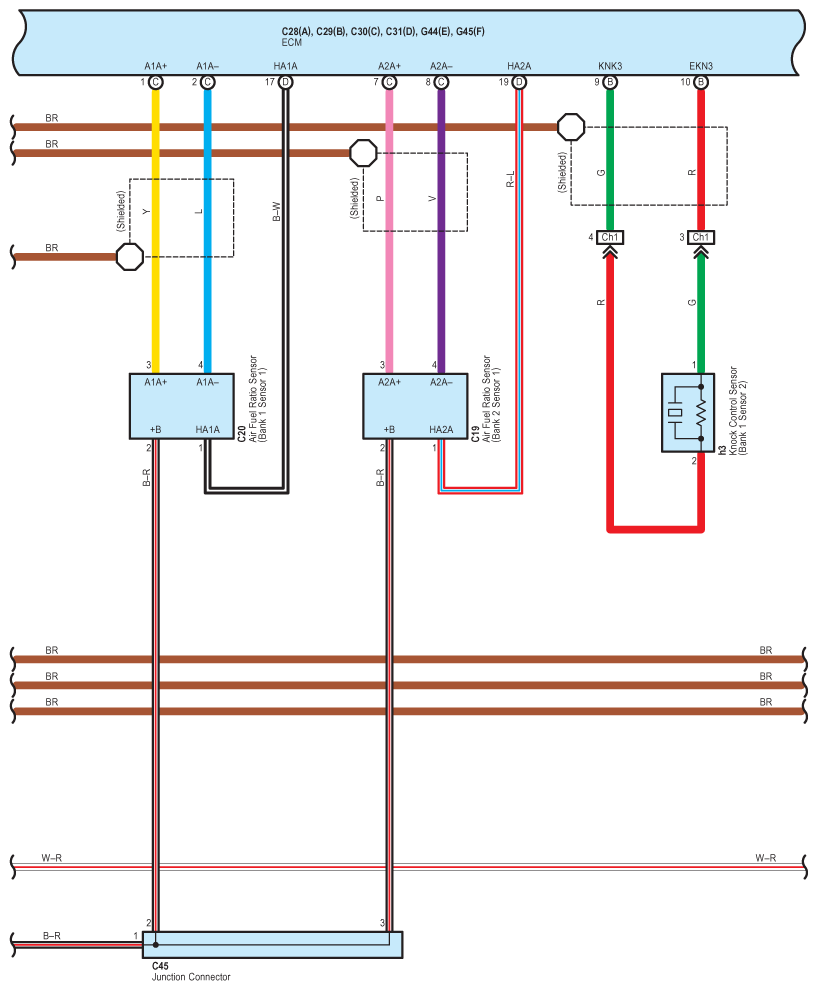

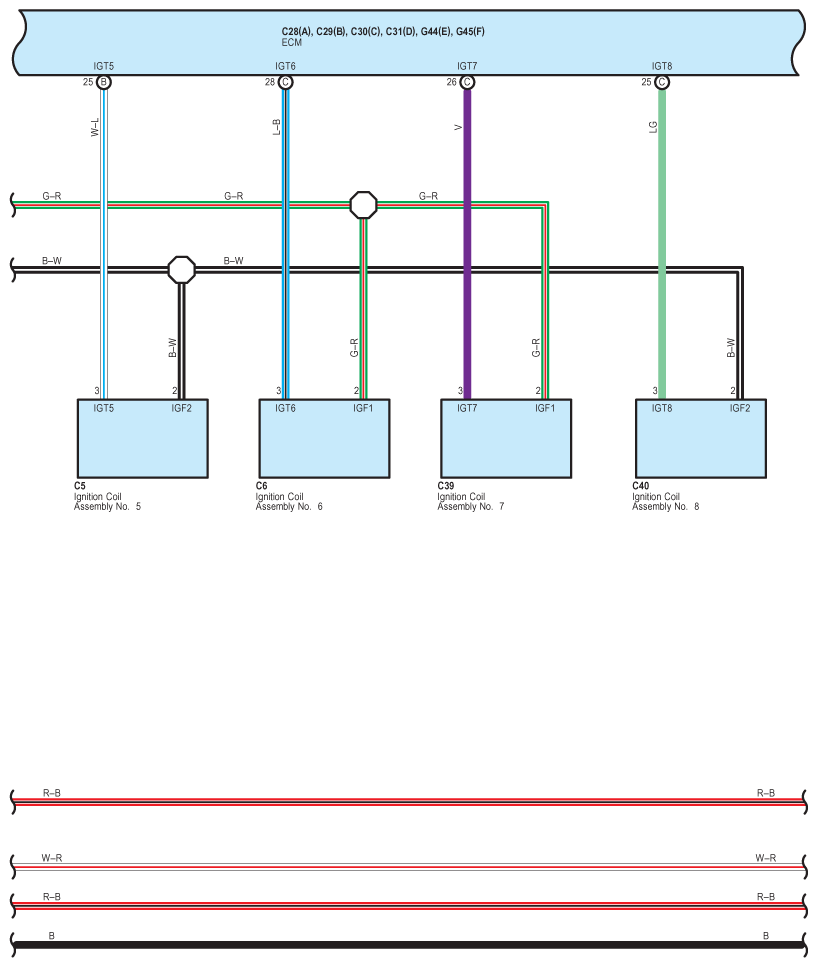

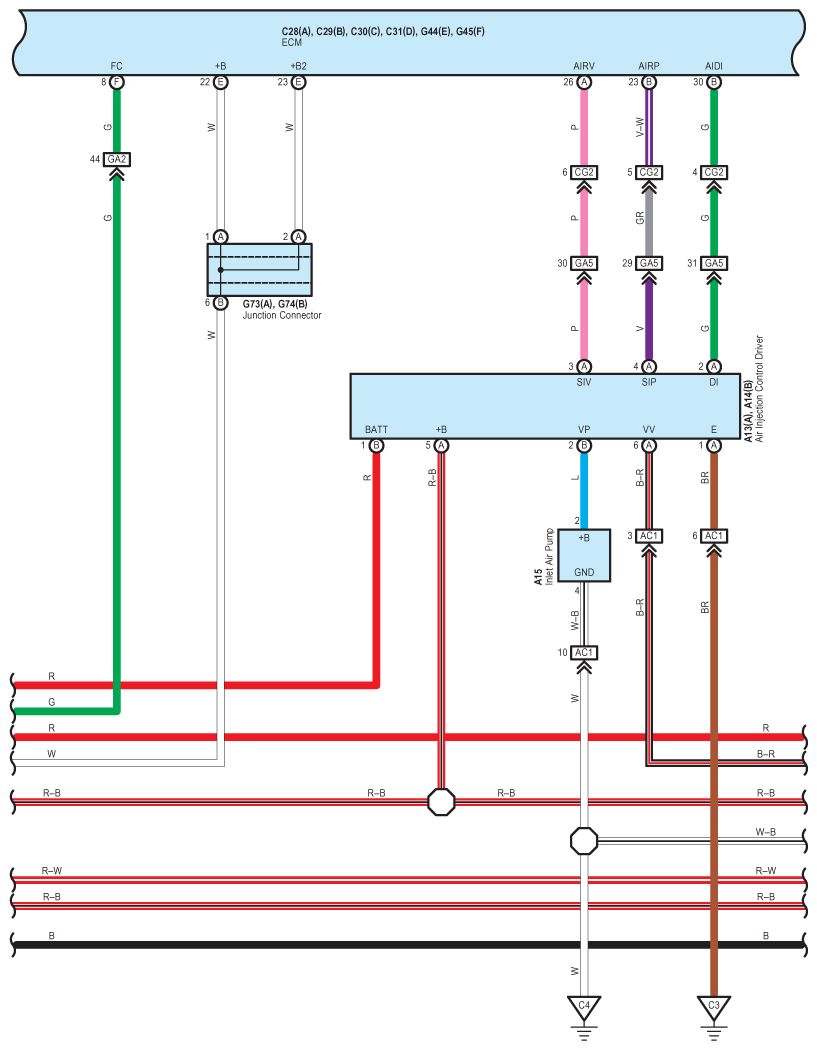

Fig 7: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (7 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

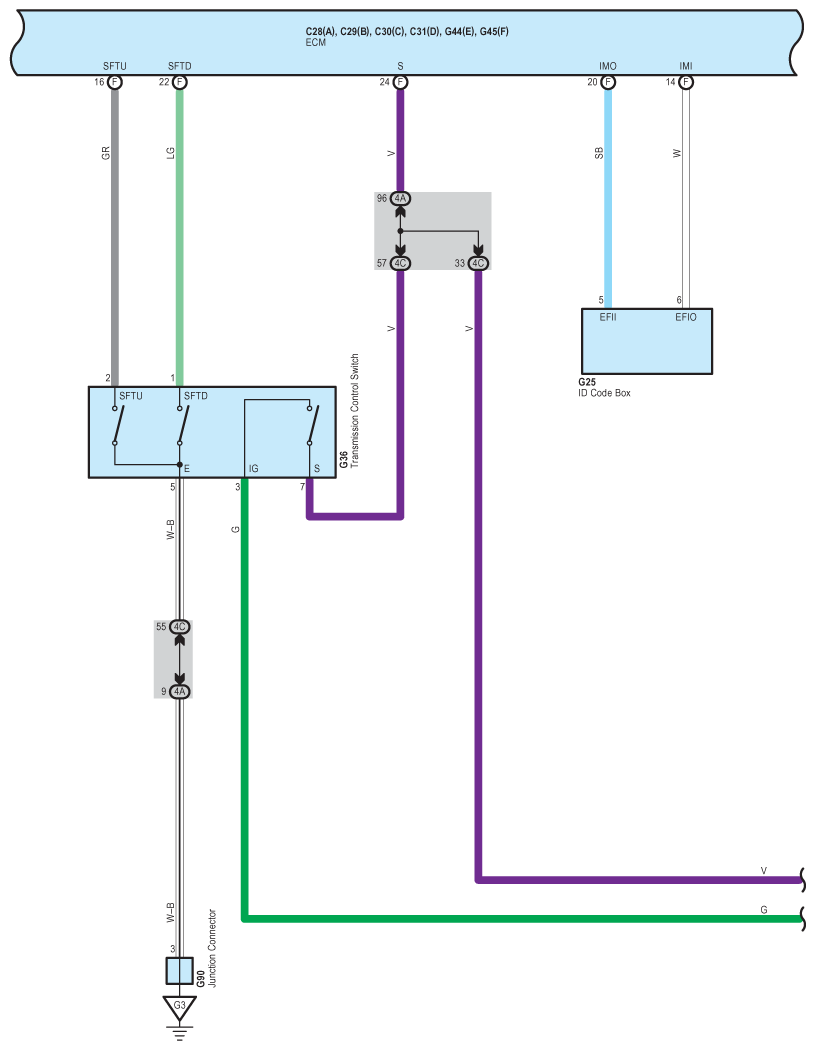

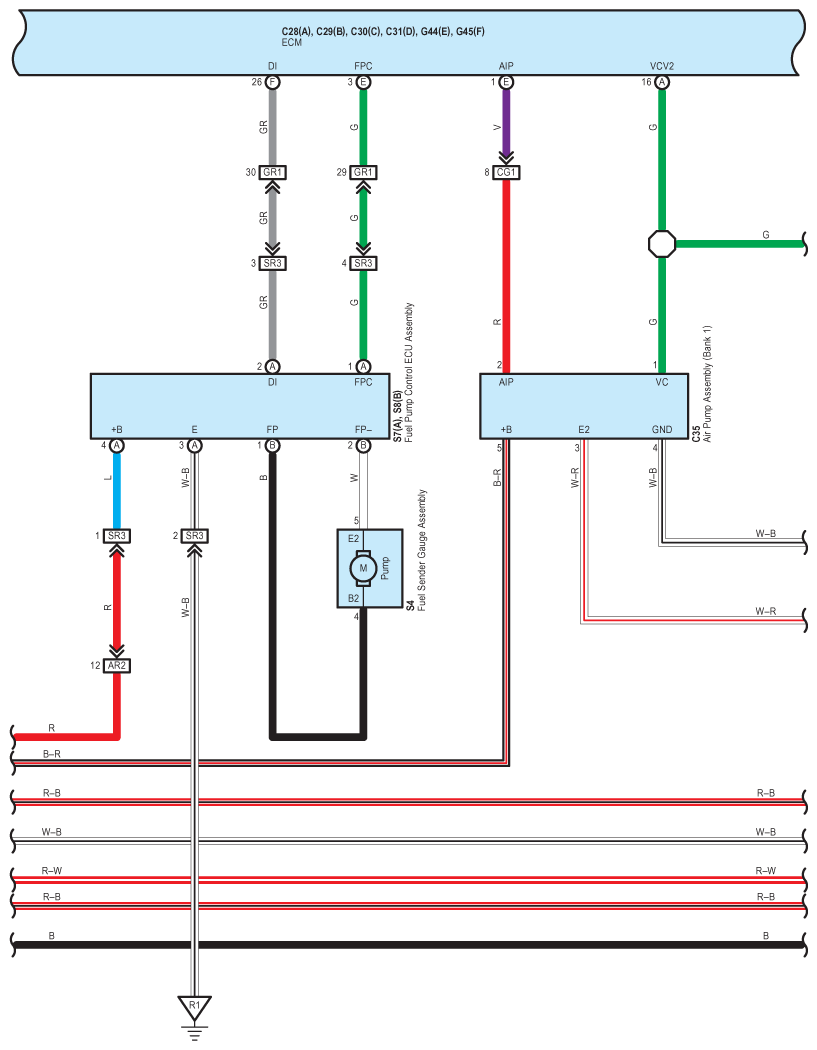

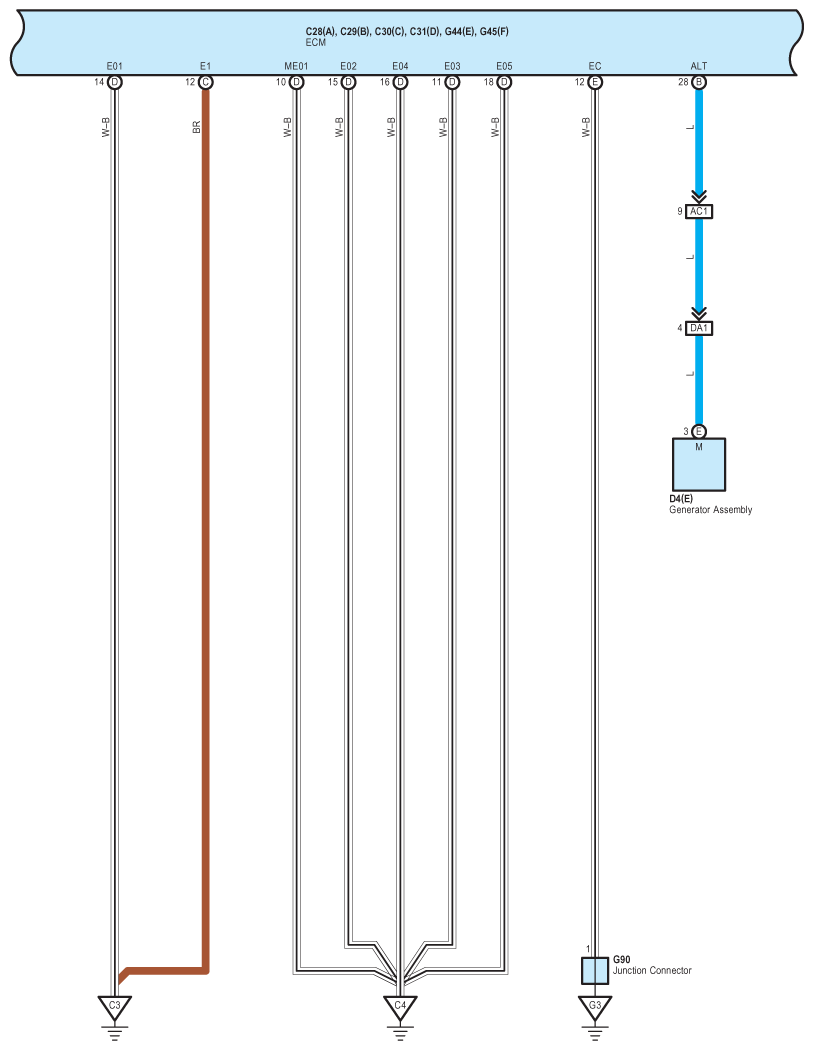

Fig 8: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (8 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (9 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (10 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (11 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (12 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (13 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (14 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (15 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (16 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (17 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (18 Of 26)

Fig 19: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (19 Of 26)

Fig 20: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (20 Of 26)

Fig 21: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (21 Of 26)

Fig 22: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (22 Of 26)

Fig 23: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (23 Of 26)

Fig 24: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (24 Of 26)

Fig 25: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (25 Of 26)

Fig 26: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (26 Of 26)
