Height Control Sensor: Installation: Installation

INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
1. Install the height control sensor with the 2 bolts.

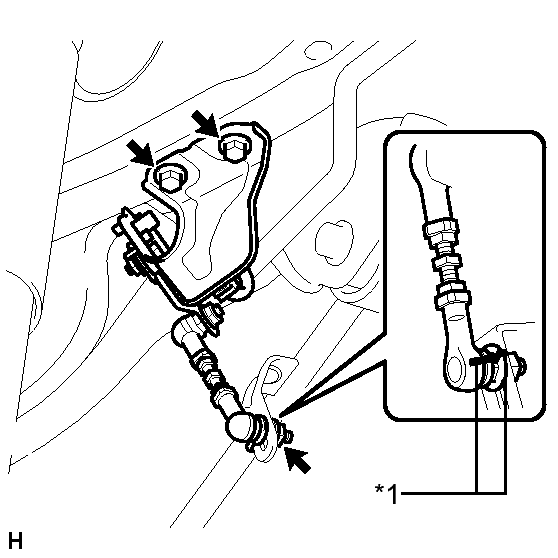

  Fig 1: Identifying Matchmarks On Link And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
  TEXT IN ILLUSTRATION

  *1 Matchmark

  NOTE:
  Replace the rear height control sensor sub-assembly with a new one if it is dropped.
2. Align the matchmarks on the link and bracket.
3. Connect the sensor link with the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Connect the connector, and then attach the connector.
  NOTE:
  Securely connect the connector.
5. Attach the clamp.
INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
INSTALL REAR WHEEL . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
ADJUST VEHICLE HEIGHT . Refer to ON-VEHICLE INSPECTION - Step 5
