Height Control Switch: Removal: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:- w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.
Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal
Condition Waiting Time Vehicle enrolled in safety connect system 6 minutes Vehicle not enrolled in safety connect system 1 minute - When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- w/ Navigation System:
- REMOVE INSTRUMENT PANEL FINISH PANEL END LH . Refer to REMOVAL - Step 5
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH . Refer to REMOVAL - Step 6
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY . Refer to REMOVAL - Step 7
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE COMBINATION SWITCH ASSEMBLY (HEIGHT CONTROL SWITCH)

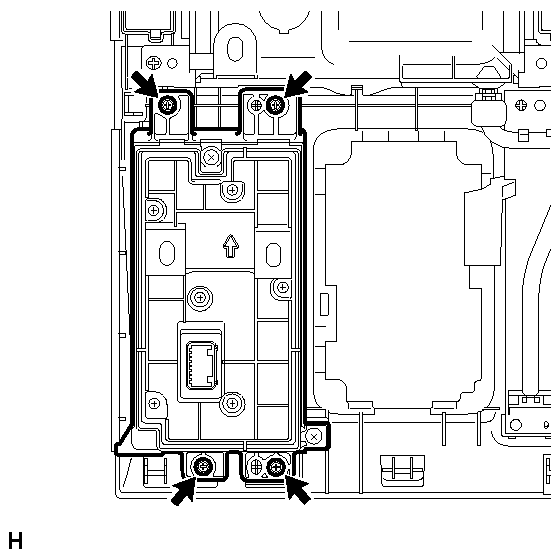

- Remove the 4 screws and combination switch (height control switch) from the upper console panel.
