On-Vehicle Inspection





POWER DISTRIBUTION: INTEGRATION RELAY: ON-VEHICLE INSPECTION

1. INSPECT NO. 2 INTEGRATION RELAY

(a) Diagnosis Terminal

(1) Measure the voltage according to the value(s) in the table below.

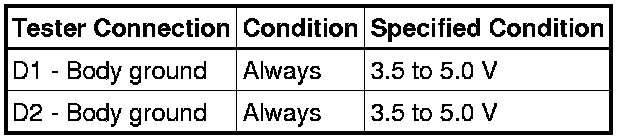

Standard Voltage:





Text in Illustration





If the result is not as specified, one of the electrical load connected to the No. 2 integration relay may be malfunctioning.
