INSTALL POWER MANAGEMENT CONTROL ECU
1. Engage the 2 claws to install the power management control ECU as shown in the illustration.

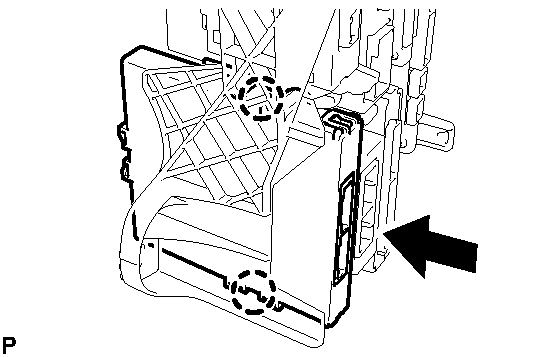

  Fig 1: Identifying Power Management Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECU INTEGRATION BOX RH
1. Install the ECU integration box RH with the 2 nuts and bolt.
  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
2. Engage the clamp to connect the wire harness.
3. Connect each connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 22
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL INSTRUMENT SIDE PANEL RH . Refer to INSTALLATION - Step 25
INSTALL COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 39 .
INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 40 .
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 41 .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL . Refer to INSTALLATION - Step 4
INSTALL LUGGAGE COMPARTMENT FLOOR MAT . Refer to INSTALLATION - Step 3
PERFORM DIAGNOSTIC SYSTEM CHECK
1. Perform diagnostic system check. Refer to DTC CHECK / CLEAR .
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
