AUDIO / VISUAL: NETWORK GATEWAY ECU: INSTALLATION

1. INSTALL NETWORK GATEWAY ECU

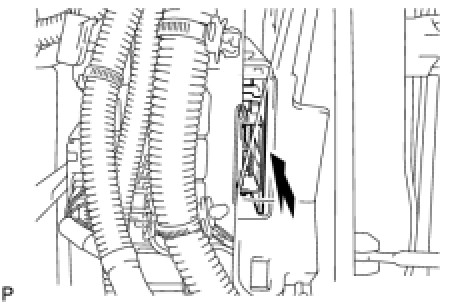

(a) Install the network gateway ECU.

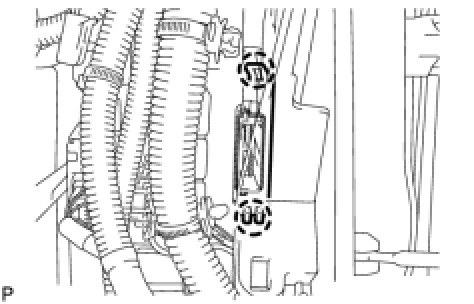

(b) Engage the 2 claws to install the cover.





(c) Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL SIDE INSTRUMENT PANEL Installation

6. INSTALL FRONT DOOR OPENING TRIM COVER

7. INSTALL FRONT DOOR SCUFF PLATE

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSPECT SRS WARNING LIGHT
